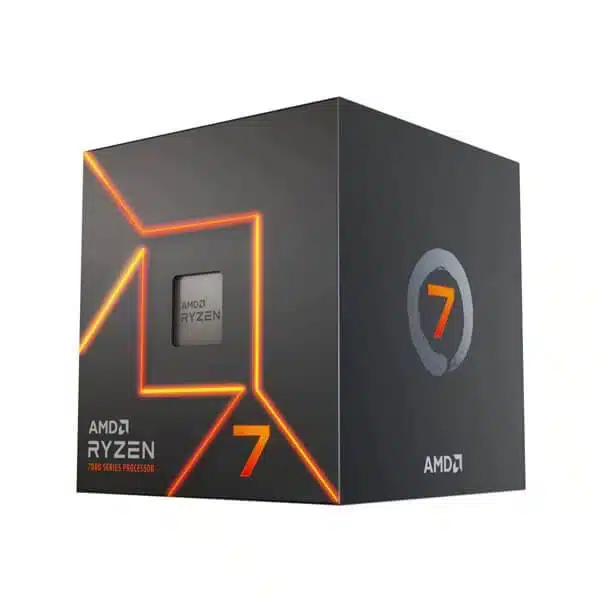

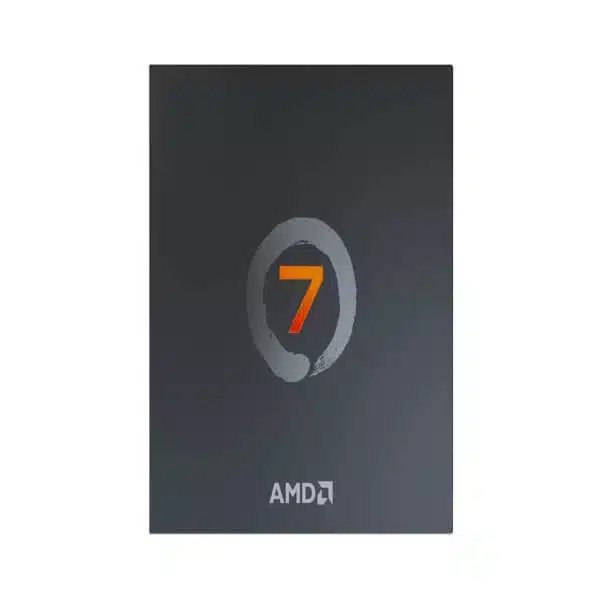

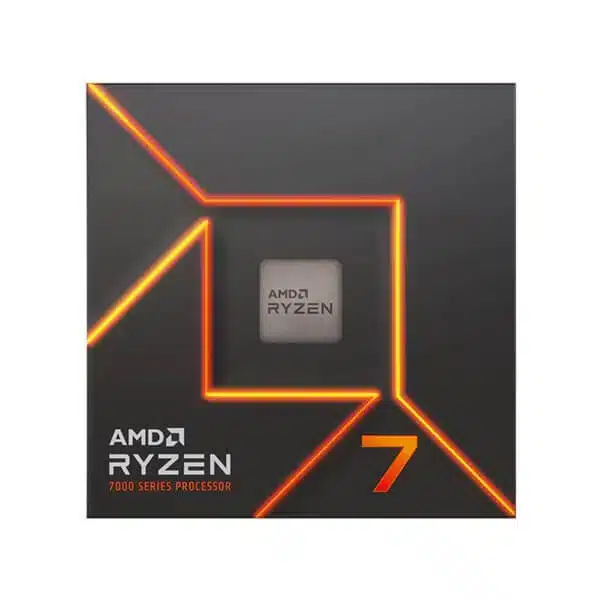

AMD Ryzen 7 7700 Processor With Radeon Graphics

Brand: AMD
SKU: 100-100000592BOX

0% No Cost EMI Available 🔥

Get Zero Cost EMI on a tenure of 3 Months. Choose Credit Card EMI during checkout.

31,990

18 People watching this product now!

Payment Methods:

Description

AMD Ryzen 7 7700 Series with Radeon Graphics Desktop Processor, this Processor Belongs to Raphael Former, It has 8 Cores and 16 Threads, Max boost clock 5.3GHz, It supports AM5 Socket

Specification:

Model RYZEN-7-7700
General Specifications
Platform Desktop
Product Family AMD Ryzen™ Processors
Market Segment Enthusiast Desktop
Product Line AMD Ryzen™ 7 Processors
AMD PRO Technologies No
Consumer Use Yes
Regional Availability Global
Former Codename “Raphael AM5”
Architecture “Zen 4”
Multithreading (SMT) Yes
# of CPU Cores 8
# of Threads 16
Max. Boost Clock Up to 5.3GHz
Base Clock 3.8GHz
L1 Cache 512KB
L2 Cache 8MB
L3 Cache 32MB
Default TDP 65W
Processor Technology for CPU Cores TSMC 5nm FinFET
Processor Technology for I/O Die TSMC 6nm FinFET
CPU Compute Die (CCD) Size 71mm²
I/O Die (IOD) Size 122mm²
Package Die Count 2
Unlocked for Overclocking Yes
AMD EXPO™ Memory Overclocking Technology Yes
Precision Boost Overdrive Yes
Curve Optimizer Voltage Offsets Yes
AMD Ryzen™ Master Support Yes
CPU Socket AM5
Supporting Chipsets X670E
X670
B650E
B650
CPU Boost Technology Precision Boost 2
Instruction Set x86-64
Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB) AMD Wraith Prism
Max. Operating Temperature (Tjmax) 95°C
*OS Support Windows 11 – 64-Bit Edition
Windows 10 – 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support Yes
Native USB 3.2 Gen 2 (10Gbps) Ports 4
Native USB 3.2 Gen 1 (5Gbps) Ports 0
Native USB 2.0 (480Mbps) Ports 1
Native SATA Ports 0
PCI Express® Version PCIe® 5.0
Native PCIe® Lanes (Total/Usable) 28/24
Additional Usable PCIe Lanes from Motherboard
  • AMD X670E 12x Gen4
  • AMD X670   12x Gen4
  • AMD B650E  8x Gen4
  • AMD B650    8x Gen4
NVMe Support Boot, RAID0, RAID1, RAID10
System Memory Type DDR5
Memory Channels 2
Max. Memory 128GB
System Memory Subtype UDIMM
Max Memory Speed
  • 2x1R DDR5-5200
  • 2x2R DDR5-5200
  • 4x1R DDR5-3600
  • 4x2R DDR5-3600
ECC Support Yes (Requires mobo support)
Graphics Capabilities
Integrated Graphics Yes
Graphics Model AMD Radeon™ Graphics
Graphics Core Count 2
Graphics Frequency 2200 MHz
GPU Base 400 MHz
USB Type-C® DisplayPort™ Alternate Mode Yes
Key Features
Supported Technologies
  • AMD EXPO™ Technology
  • AMD Ryzen™ Technologies
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
