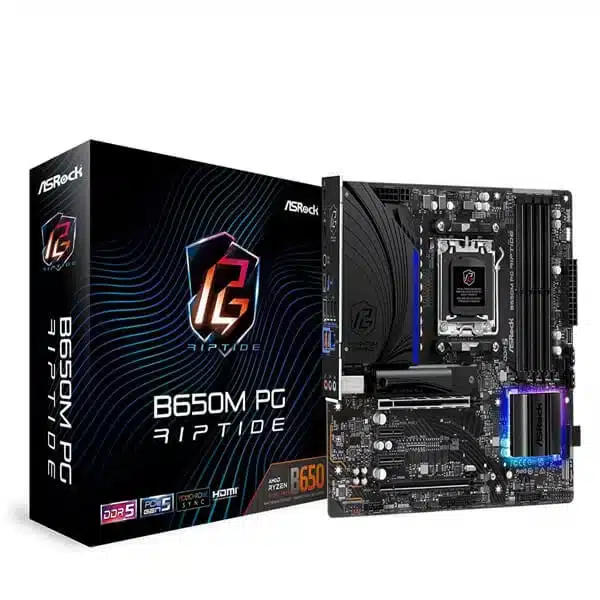

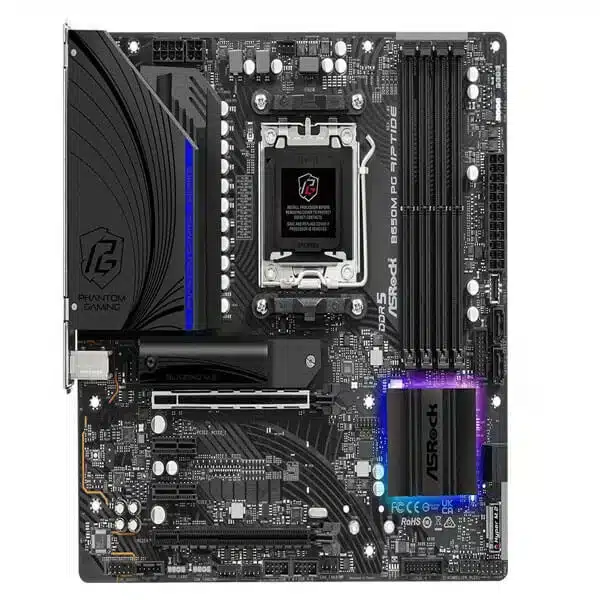

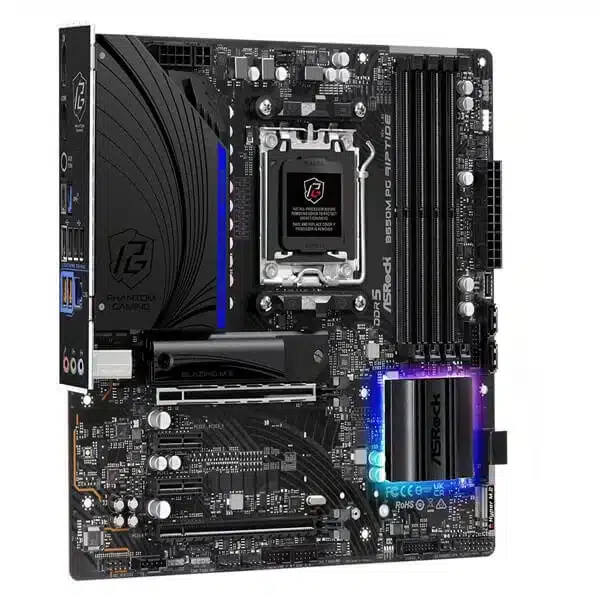

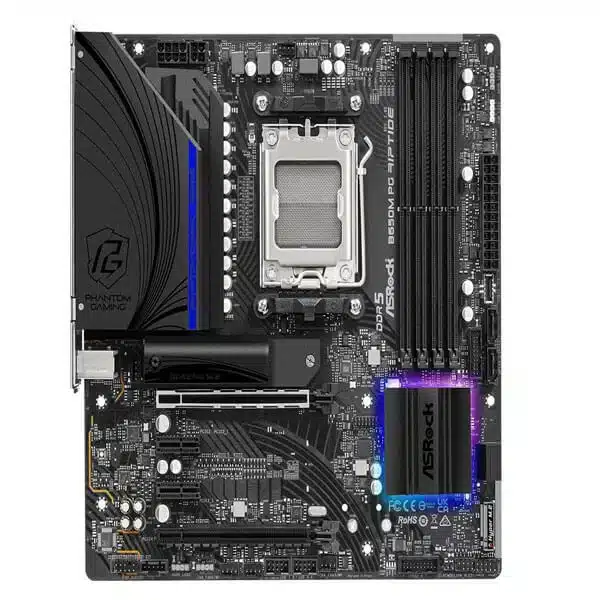

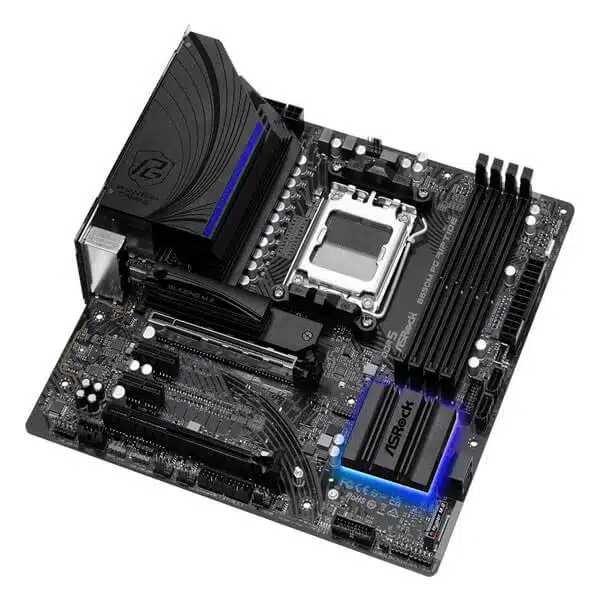

ASRock B650M PG Riptide

18,000

SKU: B650M-PG-RIPTIDE Categories: , ,

Description

Features:

  • Supports AMD Ryzen™ 7000 Series Processors
  • 12+2+1 Phase Power Design, Dr.MOS
  • 4 x DDR5 DIMMs, supports up to 6200+(OC)
  • 1 PCIe 4.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 4 SATA3
  • 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
  • Realtek 2.5G LAN

Specification:

Unique Feature Superb Productivity
– PCIe Gen5 (M.2)
– Dual Channel DDR5
Rock-Solid Durability
– 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor
– Flexible Integrated I/O Shield
Ultrafast Gaming
– 2.5G LAN
– ASRock Lightning Gaming Ports
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker
CPU – Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
Chipset – AMD B650
Memory – Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC)
– Max. capacity of system memory: 128GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS – 256Mb AMI UEFI Legal BIOS with GUI support
Graphics Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio
LAN – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Phantom Gaming LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Slots CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*
– 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)

– Supports AMD CrossFire™
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Supports NVMe SSD as boot disks

Storage CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
– 4 x SATA3 6.0 Gb/s Connectors

Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

RAID – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Requires additional M.2 NVMe expansion cards to support RAID 10

USB – 1 x USB 3.2 Gen2 Type-C (Rear)
– 1 x USB 3.2 Gen2 Type-A (Rear)
– 1 x USB 3.2 Gen1 Type-C (Front)
– 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
– 8 x USB 2.0 (4 Rear, 4 Front)

All USB ports support ESD Protection

Connector – 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header
– 3 x Addressable LED Headers
– 1 x CPU Fan Connector (4-pin)
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen1 Header

Supports in total up to 12V/3A, 36W LED Strip

Support in total up to 5V/3A, 15W LED Strip

CPU_FAN1 supports the fan power up to 1A (12W).

CPU_FAN2/WP supports the fan power up to 2A (24W).

CHA_FAN1~3/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

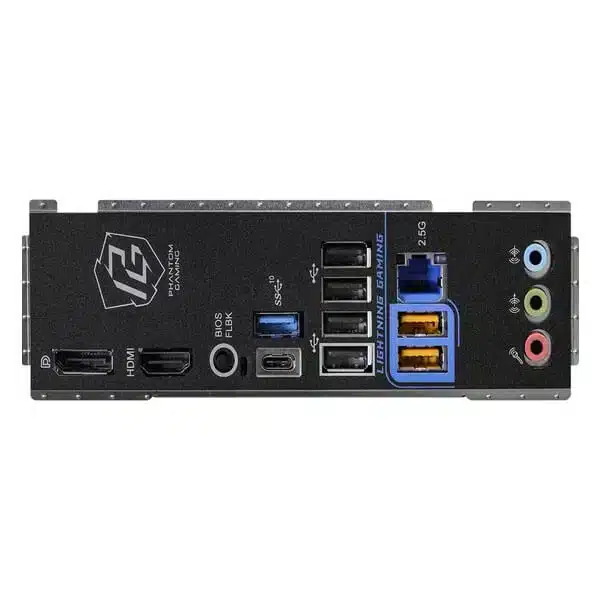

Rear Panel I/O – 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
– 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.)
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x BIOS Flashback Button
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
– ASRock Motherboard Utility (Phantom Gaming Tuning)
– ASRock Phantom Gaming LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock Full HD UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
Accessories – 1 x User Manual
– 2 x SATA Data Cables
– 2 x Screws for M.2 Sockets
– 1 x Standoff for M.2 Socket
Form Factor – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
– 2oz Copper PCB
OS – Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
