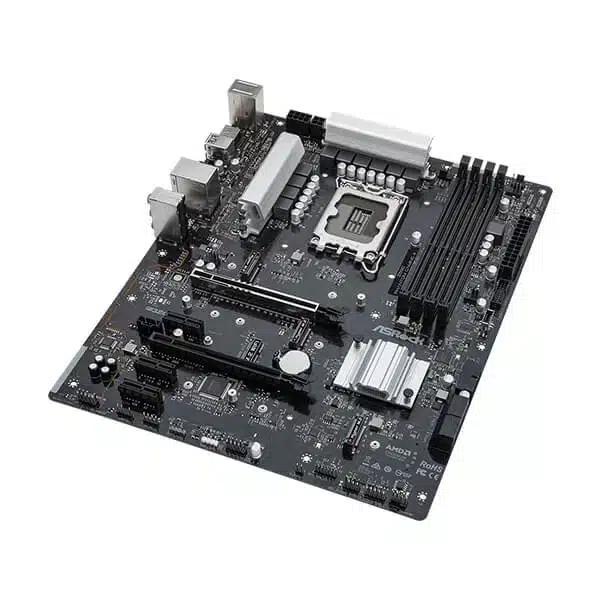

ASRock Z690 Phantom Gaming 4 DDR4

Brand: Asrock
SKU: Z690-PHANTOM-GAMING-4

0% No Cost EMI Available 🔥

Get Zero Cost EMI on a tenure of 3 Months. Choose Credit Card EMI during checkout.

18,690

Out of stock

Out of stock

11 People watching this product now!

Payment Methods:

Description

Features:

  • Supports 12th Gen Intel® Core™ Processors (LGA1700)
  • 9 Phase Dr.MOS Power Design\
  • Supports DDR4 5000MHz (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1
  • 1 M.2 Key-E for WiFi
  • Graphics Output Options: HDMI
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3
  • 2 Hyper M.2 (PCIe Gen4 x4)
  • 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 1 USB 3.2 Gen2x2 Front Type-C
  • 2 USB 3.2 Gen2 (Rear Type A+C)
  • 8 USB 3.2 Gen1 (4 Rear, 4 Front)
  • Intel® Gigabit LAN

Specifications:

Unique Feature ASRock USB 3.2 Gen2

– ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

– ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)

– ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)

ASRock Super Alloy

– Premium Power Choke

– 50A Dr.MOS

Sapphire Black PCB

– High Density Glass Fabric PCB

ASRock Steel Slot

ASRock Hyper M.2 (PCIe Gen4x4)

ASRock POST Status Checker (PSC)

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

CPU – Supports 12th Gen Intel® Core™ Processors (LGA1700)

– 9 Power Phase design

– Supports Intel® Hybrid Technology

– Supports Intel® Turbo Boost Max 3.0 Technology

Chipset – Intel® Z690
Memory – Dual Channel DDR4 Memory Technology

– 4 x DDR4 DIMM Slots

– Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*

– Supports ECC UDIMM memory modules (operate in non-ECC mode)

– Max. capacity of system memory: 128GB

– Supports Intel® Extreme Memory Profile (XMP) 2.0

*Supports DDR4 3200 natively.

BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support

– ACPI 6.0 Compliant wake up events

– SMBIOS 2.7 Support

– CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment

Graphics – Intel® Xe Graphics Architecture (Gen 12)

– Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz

– Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

– Supports Surge Protection

– Nahimic Audio LAN – Gigabit LAN 10/100/1000 Mb/

LAN – Gigabit LAN 10/100/1000 Mb/s

– Giga PHY Intel® I219V

– Supports Wake-On-LAN

– Supports Lightning/ESD Protection

– Supports Energy Efficient Ethernet 802.3az

– Supports UEFI PXE

Slots CPU:

– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

– 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*

– 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE4 and PCIE5)*

– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)

– Supports AMD CrossFire™

*Supports NVMe SSD as boot disks

Storage CPU:

– 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*

– 4 x SATA3 6.0 Gb/s Connectors

*Supports Intel® Optane™ Technology (M2_2 and M2_3 only)

Supports Intel® Volume Management Device (VMD)

Supports NVMe SSD as boot disks

Supports ASRock U.2 Kit

RAID – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

– Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

Connector – 1 x SPI TPM Header

– 1 x Power LED and Speaker Header

– 1 x RGB LED Header*

– 3 x Addressable LED Headers**

– 1 x CPU Fan Connector (4-pin)***

– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

– 1 x 24 pin ATX Power Connector

– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)

– 1 x Front Panel Audio Connector

– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

*Supports in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

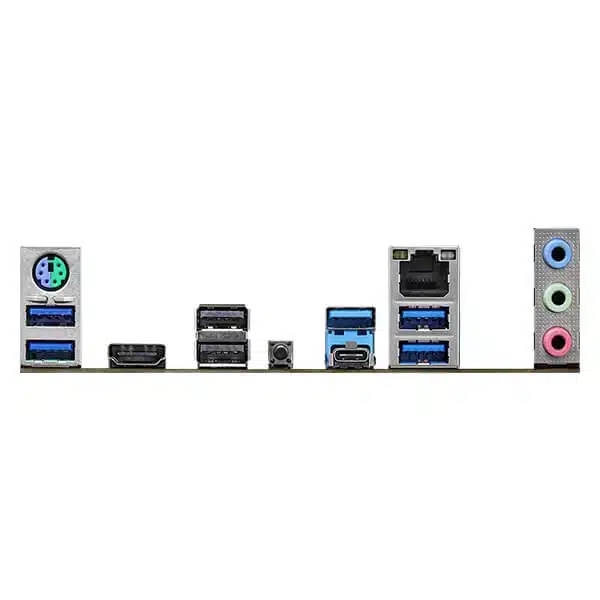

Rear Panel I/O – 3 x Antenna Mounting Points

– 1 x PS/2 Mouse/Keyboard Port

– 1 x HDMI Port

– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)

– 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)

– 2 x USB 2.0 Ports (Supports ESD Protection)

– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

– 1 x BIOS Flashback Button

– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI Software

– ASRock Motherboard Utility (Phantom Gaming Tuning)

– ASRock Polychrome SYNC

– ASRock XFast LAN

UEFI

– ASRock EZ Mode

– ASRock Full HD UEFI

– ASRock My Favorites in UEFI

– ASRock Instant Flash

– ASRock Internet Flash

– ASRock Easy RAID Installer

Support CD – Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories – Quick Installation Guide, Support CD, I/O Shield

– 2 x SATA Data Cables

– 4 x Screws for M.2 Sockets

Hardware Monitor – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans

– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans

– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans

– Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +1.8V PROC, +0.82V PCH, +12V, +5V, +3.3V

Form Factor – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

– Solid Capacitor design

OS – Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
– FCC, CE

– ErP/EuP ready (ErP/EuP ready power supply is required)

Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
