FEATURES

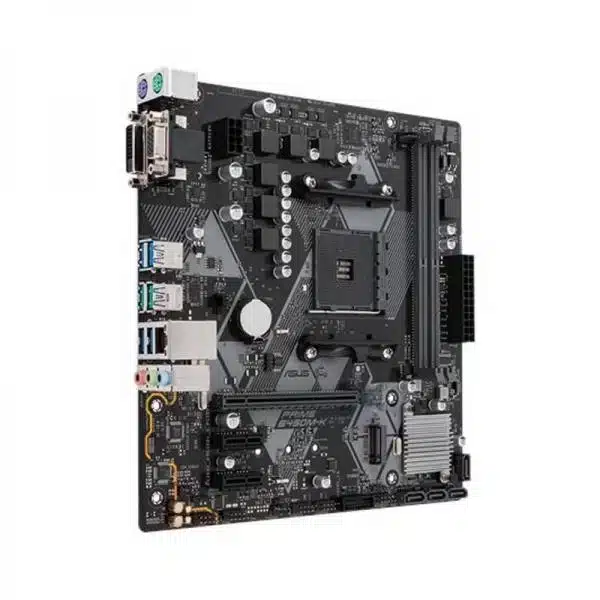

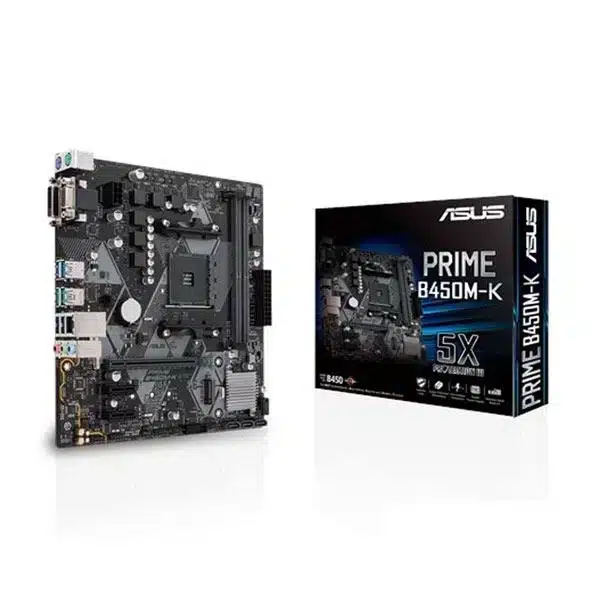

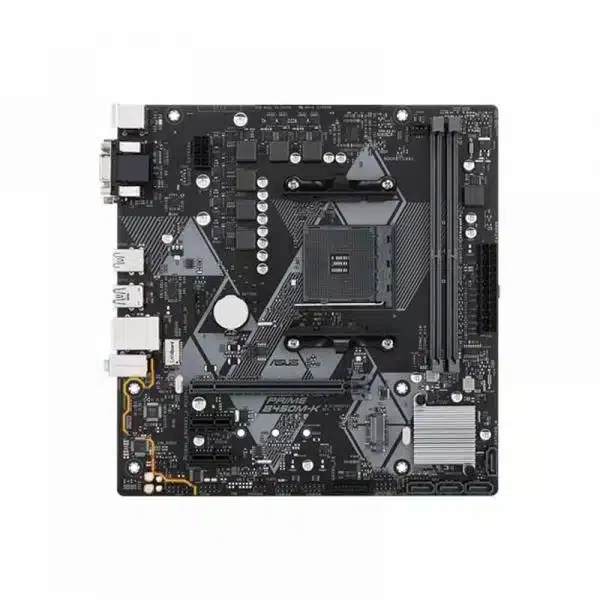

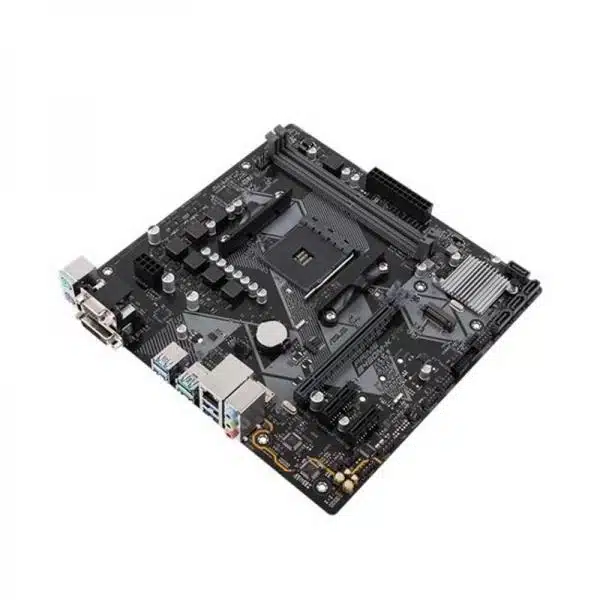

AMD AM4 mATX motherboard withwith LED lighting, DDR4 3200MHz, M.2, SATA 6Gbps and USB 3.1 Gen 2
- Fan Xpert: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming
- 5X Protection III: Multiple hardware safeguards for all-round protection
- Ultrafast connectivity: Supreme flexibility with USB 3.1 Gen 2, Native M.2
- LED illumination: Lighting control for both PCIe slot and audio trace paths
SPECIFICATIONS
CPU | AMD AM4 Socket AMD Ryzenâ„¢ 2nd Generation/Ryzenâ„¢ with Radeonâ„¢ Vega Graphics/Ryzenâ„¢ 1st Generation Processors |
Chipset | AMD B450 |
Memory | AMD Ryzenâ„¢ 2nd Generation/ Ryzenâ„¢ with Radeonâ„¢ Vega Graphics/ Ryzenâ„¢ 1st Generation Processors 2 x DIMM, Max. 64GB, DDR4 4400(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
Graphic | Integrated in the AMD Ryzenâ„¢ with Radeonâ„¢ Vega Graphics Processors Multi-VGA output support : DVI-D/D-Sub ports – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz – Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz |
Expansion Slots | AMD Ryzenâ„¢ 2nd Generation/ Ryzenâ„¢ 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzenâ„¢ with Radeonâ„¢ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD B450 chipset 2 x PCIe 2.0 x1 |
Storage | AMD B450 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 AMD Ryzenâ„¢ 2nd Generation/ Ryzenâ„¢ with Radeonâ„¢ Vega Graphics/ Ryzenâ„¢ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) |
LAN | Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) ASUS LAN Guard |
Audio | Realtek® ALC887 8-Channel High Definition Audio CODEC Audio Feature : – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path. – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
USB Ports | AMD Ryzenâ„¢ 2nd Generation/ Ryzenâ„¢ with Radeonâ„¢ Vega Graphics/ Ryzenâ„¢ 1st Generation : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD B450 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, ) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset : 4 x USB 2.0/1.1 port(s) (4 at mid-board) |
Special Features | ASUS 5X Protection III : – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! – ASUS Overvoltage Protection: World-class circuit-protecting power design – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! – ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : – AI Suite 3 – Ai Charger ASUS Quiet Thermal Solution : – Stylish Fanless Design Heat-sink solution – ASUS Fan Xpert ASUS EZ DIY : – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – Multi-language BIOS ASUS Q-Design : – ASUS Q-Slot – ASUS Q-DIMM |
Back I/O Ports | 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 4 x USB 3.1 Gen 1 , 3 x Audio jack(s) |
Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector |

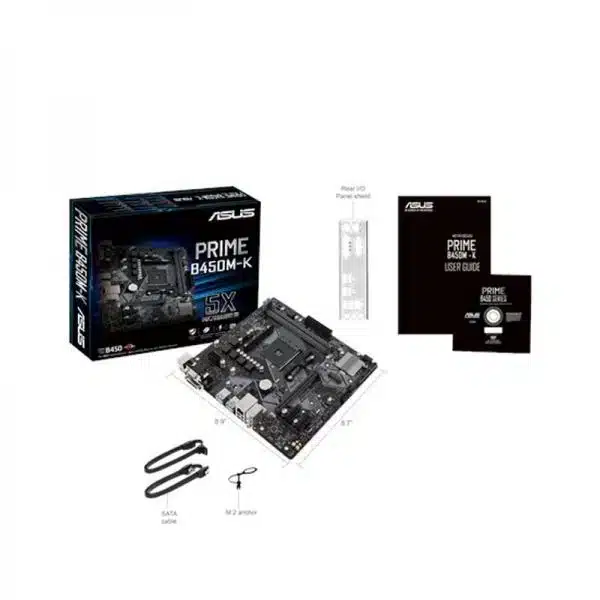

Accessories | User’s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Anchor 1 x Supporting DVD |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
Operating System | Windows® 10 64-bit |
Form Factor | mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
