Features:
AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe® 4.0, 12+2 teamed power stages, Intel® 2.5 Gb Ethernet, WiFi 6E, Two-Way AI Noise Cancelation, dual M.2 slots with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting
- AM4 socket:Â Ready for AMD Ryzenâ„¢ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output
- Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitorsÂ
- Renowned software:Â Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization:Â ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
- Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive sound

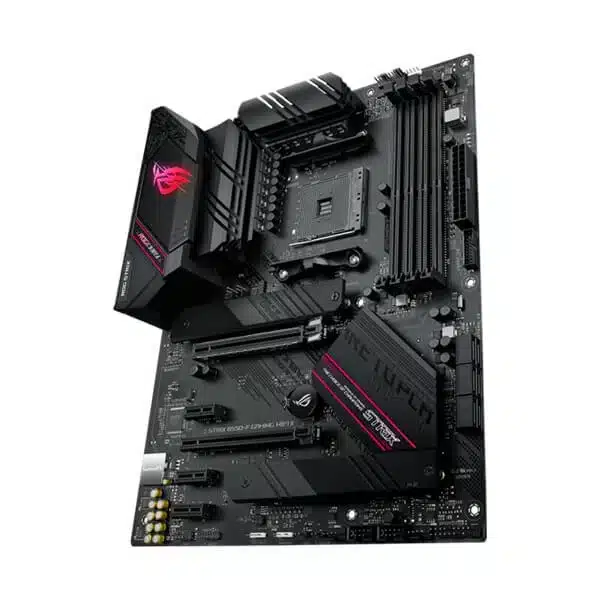

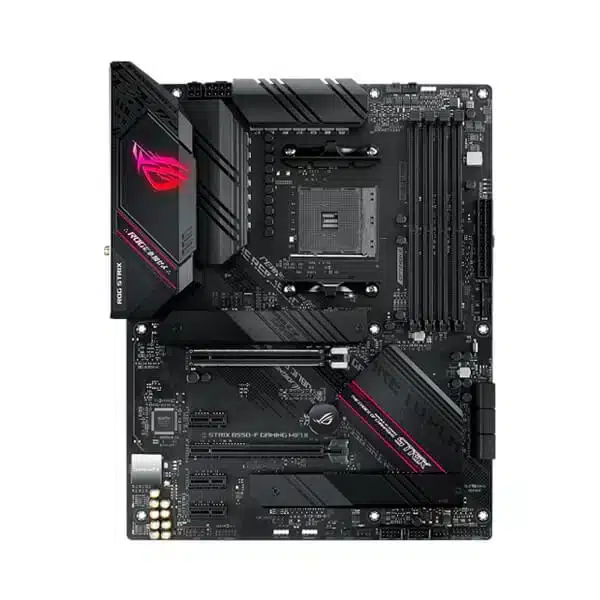

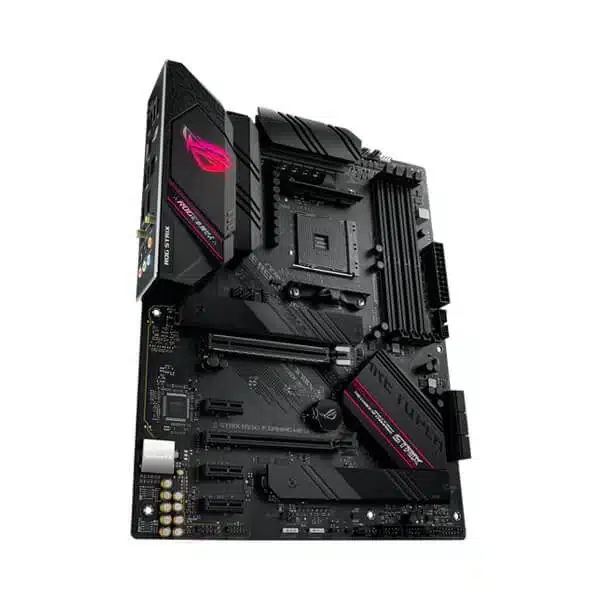

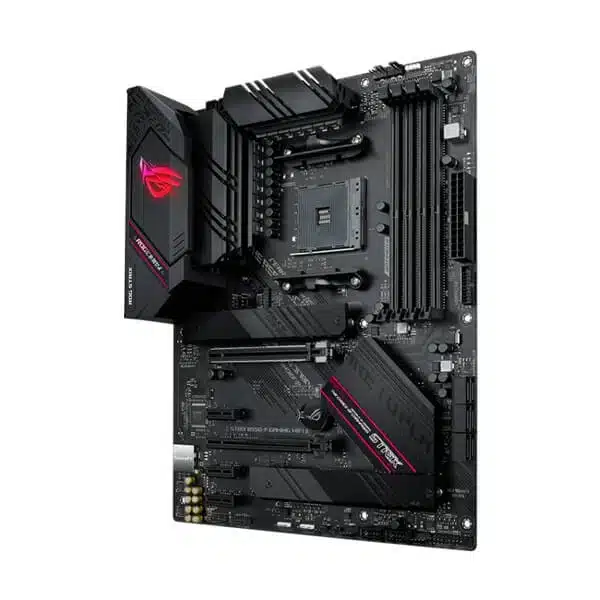

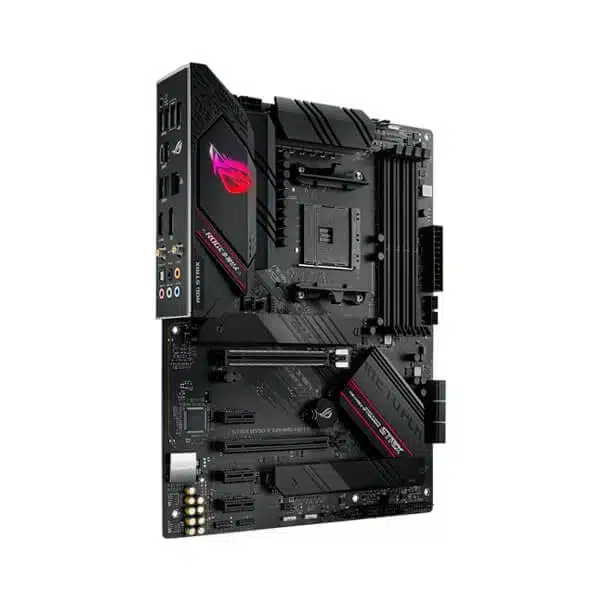

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle Zen 3 architecture AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming WiFi II gives you a head start on your dream build.
PCIe 4.0-Ready
ROG Strix B550-F Gaming WiFi II features two M.2 slots, one of which supports the PCIe 4.0 standard to provide maximum storage flexibility and the lightning-fast data speeds. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.
WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.
Intel 2.5 Gb Ethernet
Onboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming.
SupremeFX
Built-in ROG SupremeFX audio technology ensures pristine audio for ROG Strix B550-F Gaming WiFi II. Along with ensuring a flat frequency response for a neutral, detailed sound signature, it offers two front-panel outputs driven by op amps that deliver high-quality audio to gaming headsets.
Two-way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.
DTS: Sound Unbound dts
ROG Strix B550 series motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By leveraging Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.
Undeniably ROG Strix
ROG Strix B550-F Gaming WiFi II embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series’ gaming roots.
OUTSHINE THE COMPETITION
ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.
Pre-mounted I/O shield
Patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install on the motherboard.
Q-LEDs
Four onboard LEDs indicate power status, and any problem with the CPU, memory, graphics card or boot device for quick diagnosis.
SafeSlot
The reinforced ASUS SafeSlot provides stronger PCIe device retention and greater shearing resistance.
BIOS FlashBackâ„¢
Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack™ port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU aren’t present.
AI Networking
The proprietary ROG GameFirst VI utility is designed to help all users — beginners, experts, and everyone in between — optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technology to ensure faster and smarter network optimization.
RAMCACHE III
RAMCache III software turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express® storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.
Specifications:
Model | STRIX B550-F GAMING WIFI II |
Supported CPU | |
CPU Socket Type | AM4 |
CPU Type |
|
Chipset | AMD B550 |
Memory | |
Number of Memory Slots | 4×288pin |
Memory Standard |
|
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
ECC Supported | ECC Memory (ECC mode) support varies by CPU. |
Buffer Supported | Un-buffered |
Expansion Slot | |
PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16*
* Supports x4 mode. |
PCI Express x1 | 3 x PCIe 3.0 x1 |
Storage Device | |
SATA 6Gb/s | 6 x SATA 6Gb/s |
M.2 |
* When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled. |
SATA RAID | 0/1/10 |
Onboard Video Chipset | Supported only by CPU with integrated graphic |
Onboard Audio | |
Audio Chipset | ROG SupremeFX High Definition Audio CODEC S1220A |
Audio Channels | 7.1 Channels |
Onboard LAN | |
LAN Chipset | Intel I225-V |
Max LAN Speed | 10/100/1000/2500Mbps |
Wireless LAN | Wi-Fi 6E 802.11a/b/g/n/ac/ax |
Bluetooth | Bluetooth 5.2 |
Rear Panel Ports | |
Back I/O Ports |
|
Internal I/O Connectors | |
Onboard USB |
|
Other Connectors | Fan and cooling related
Miscellaneous
|
Physical Spec | |
Form Factor | ATX |
LED Lighting | RGB |
Dimensions (W x L) | 12.0″ x 9.6″ |
Power Pin |
|
Features | Special Features: ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) – ASUS Q-Slot ASUS Thermal Solution – M.2 heatsink AURA Sync – AURA RGB headers – Addressable Gen 2 RGB headers ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED – Clear CMOS header – ProCool – Pre-mounted I/O shield – SafeSlot Software Features: |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Operating System | Windows 10 64-bit, Windows 11 64-bit |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
