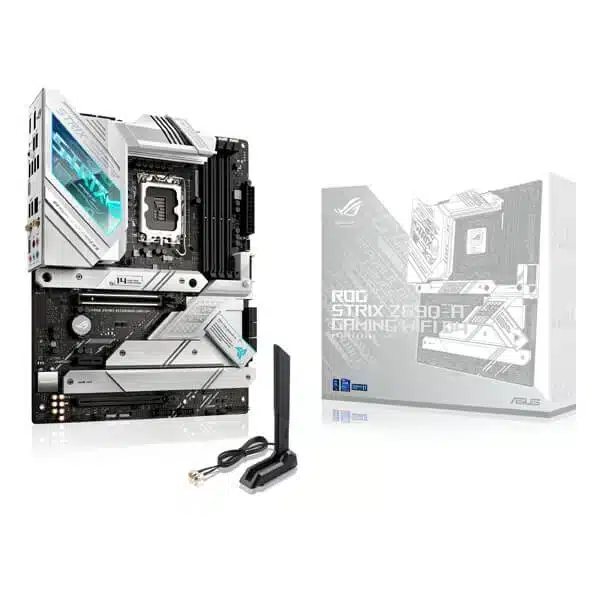

ASUS ROG Strix Z690-A Gaming WIFI D4

Brand: ASUS
SKU: ROG-STRIX-Z690-A-GAMING-WIFI-D4
Brand

Chipset

Z690

Form Factor

ATX

Socket

Memory Type

DDR4

🔥 100% Genuine Products Guaranteed

ModxComputers is known for their best in class service and 100% genuine products with full authenticity.

👉 Cash on Delivery Available

Order this product on Cash on Delivery. For more details kindly check details on the checkout page.

34,190

Out of stock

Out of stock

14 People watching this product now!

Description

Features:

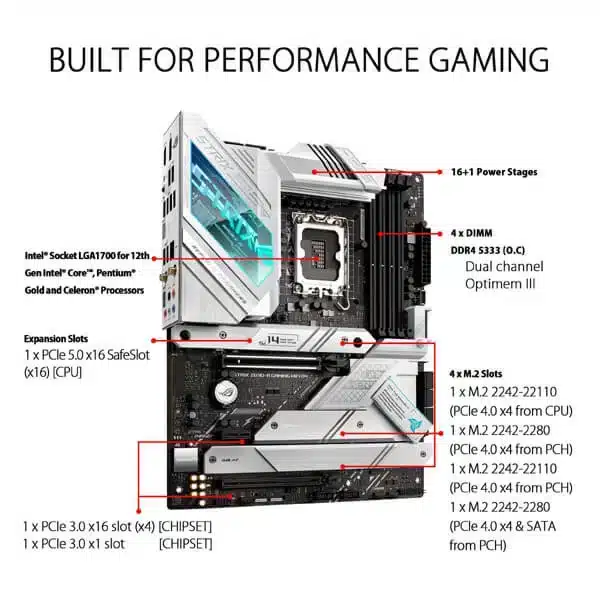

Intel®Z690 LGA 1700 ATX motherboard with PCIe®5.0, 16+1 DrMos, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel®2.5 Gb Ethernet, four M.2 slots with heatsinks PCIe 4.0 NVMe®SSD support, M.2 backplate, PCIe®Slot Q-Release, USB 3.2 Gen 2×2 Type-C®, SATA and AURA Sync RGB lighting

  • Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
  • Optimal Power Solution: 16+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors

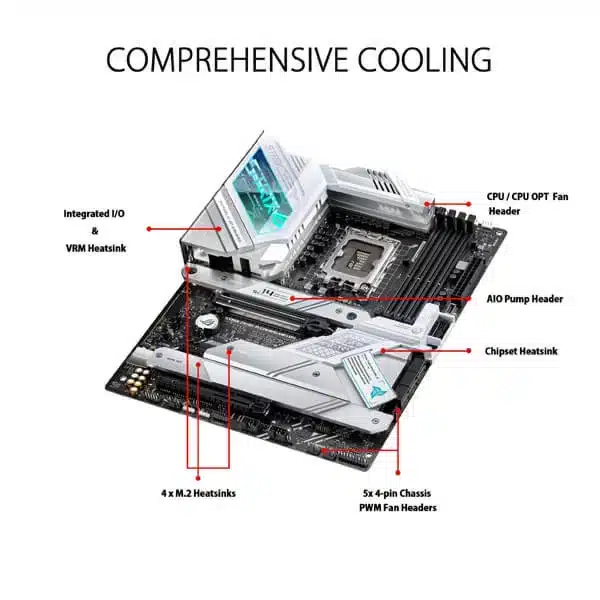

  • Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
  • High-performance Networking: On-board Intel® WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2×2 Type-C®
  • Intelligent Control:  ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance
  • DIY Friendly Design: PCIe®Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button

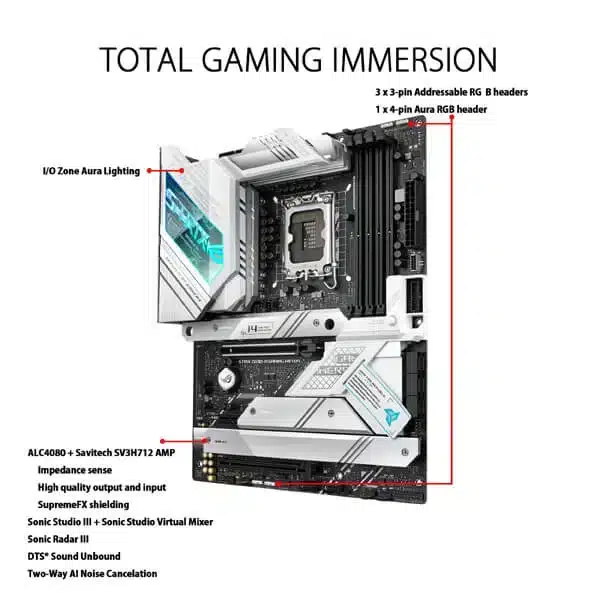

  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
  • Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
  • Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Specifications:

CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset Intel® Z690 Chipset
Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem III

*Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics 1 x DisplayPort**

1 x HDMI® port***

*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Support 8K@60Hz as specified in DisplayPort 1.4.

***Support 4K@60Hz as specified in HDMI® 2.1.

**** VGA resolution support depends on processors’ or graphic cards’ resolution.

Expansion Slots Intel® 12th Gen Processors

1 x PCIe 5.0/4.0/3.0 x16 slot*

Intel® Z690 Chipset**

1 x PCIe 3.0 x16 slot (supports x4 mode)*

1 x PCIe 3.0 x1 slot

* Please check PCIe bifurcation table in User Guide Chapter 1 // support site.

** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot

Storage Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
– Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® Z690 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
6 x SATA 6Gb/s ports***
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** When M.2_4 is operating in SATA mode, SATA6G_2 will be disabled.
*** RAID configuration and optical disc drives are not supported on the SATA6G_E1-2 ports.
Ethernet 1 x Intel® 2.5Gb Ethernet
Wireless & Bluetooth Intel® Wi-Fi 6

2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2

USB Rear USB: Total 10 ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB: Total 7 ports
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

– Impedance sense for front and rear headphone outputs

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

– Supports up to 32-Bit/384 kHz playback

Audio Features

– SupremeFX Shielding Technology

– Savitech SV3H712 AMP

– Premium audio capacitors

– Audio cover

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

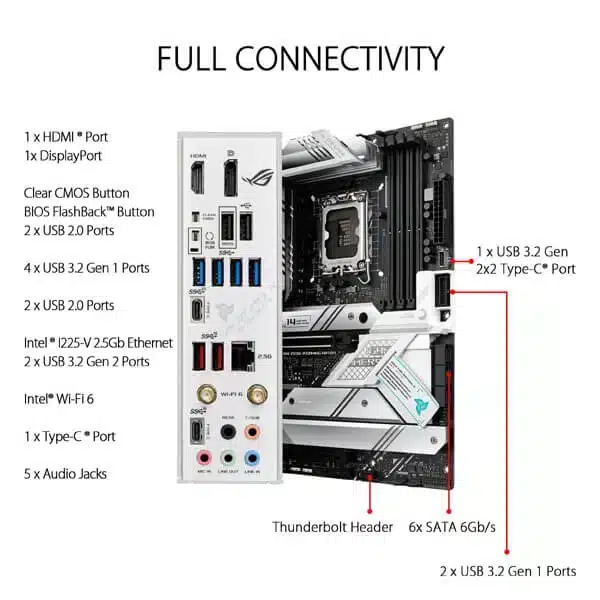

Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Intrernal I/O Connectors Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connectors

Storage related

4 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2×2 connector (support USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x CPU Over Voltage jumper

1 x 12-1 pin Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header

Special Features Extreme Engine Digi+

-5K Black Metallic Capacitors

ASUS Q-Design

– M.2 Q-Latch

– PCIe Slot Q-Release

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot

ASUS Thermal Solution

– M.2 heatsink backplate

– M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– BIOS FlashBack™ button

– BIOS FlashBack™ LED

– Clear CMOS button

– CPU Socket lever protector

– ProCool II

– Pre-mounted I/O shield

– SafeSlot

– SafeDIMM

AURA Sync

– AURA RGB header

– Addressable Gen 2 headers

ASUS HYDRANODE

– 1 x 12-1 pin Front Panel Audio header (AAFP)

– 1 x Chassis fan support* (CHA_FAN1P)

* Visit ASUS Website for the latest compatibility list.

Software Features ROG Exclusive Software

– GameFirst VI

– ROG CPU-Z

– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

– Sonic Radar III

– DTS® Sound Unbound

– Anti-virus software

ASUS Exclusive Software

Armoury Crate

– AIDA64 Extreme (60 days free trial)

– AURA Creator

– AURA Sync

– Fan Xpert 4

– Two-Way AI Noise Cancelation

AI Suite 3

– Easy Optimization with AI Overclocking

TPU

EPU

DIGI+ VRM

Turbo app

MyAsus

WinRAR

UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

FlexKey

MemTest86

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables

4 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x M.2 Rubber Package

1 x M.2 Q-Latch package

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

Installation Media

1 x Support DVD

Documentation

1 x User guide

Operating System Windows® 11 64-bit, Windows® 10 64-bit
Form Factor ATX
30.5cm x 24.4cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
