Features:
- Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors & 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
- Robust Power Solution: 16 + 1 power solution rated for 90A per stage with with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors

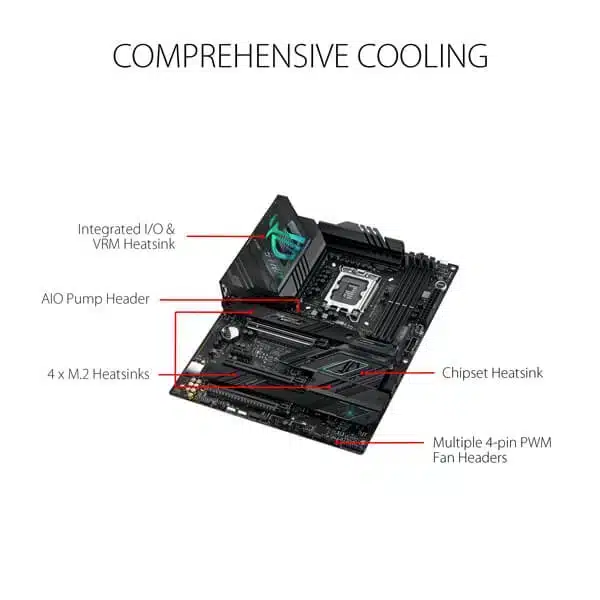

- Optimized VRM Thermals: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with an L-shaped heatpipe
- Ample M.2 Support: One PCIe® 4.0 M.2 slot with a heatsink and backplate, and three PCIe 4.0 M.2 slots with heatsinks
- Abundant Connectivity: USB 3.2 Gen 2×2 Type-C® rear I/O port and additional front-panel connector with PD 3.0 up to 30W, USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPortâ„¢ 1.4
- High-Performance Networking: On-board WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and Two-Way AI Noise Cancelation simplifies setup and improves performance

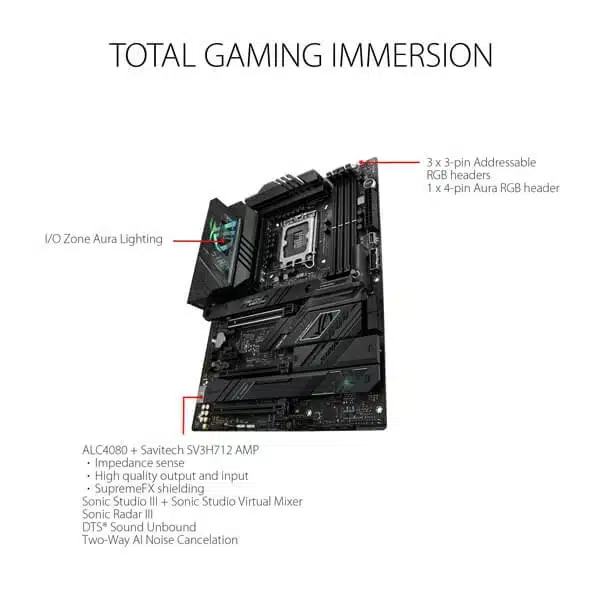

- Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and addressable Gen 2 headers
- DIY-friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-LED, BIOS FlashBackâ„¢ button, BIOS FlashBack LED, and Clear CMOS button
- Renowned Software: Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Specification:
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® Z790 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Graphics | 1 x DisplayPort 1 x HDMI® port |
| Expansion Slots |  Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 13th & 12th Gen Processors |
| Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth® | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth® v5.2 |
| USB | Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 30W PD) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover |

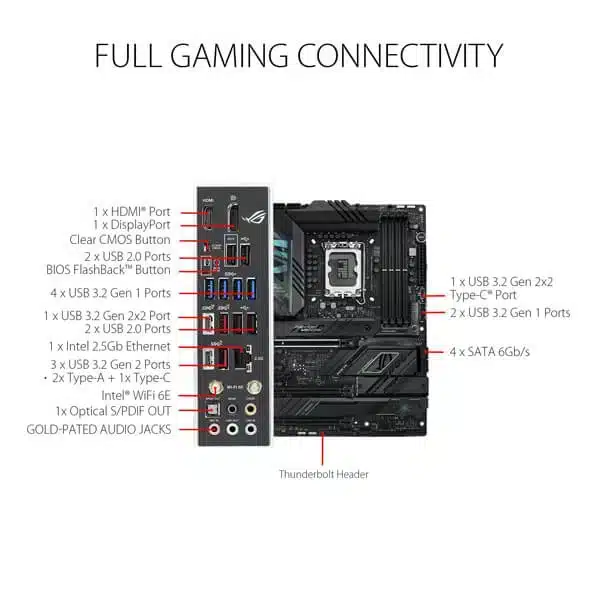

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBackâ„¢  button 1 x Clear CMOS button |
| Internal I/O Connectors |  Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 30W PD) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderboltâ„¢ header |
| Special Features | Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBackâ„¢ button – BIOS FlashBackâ„¢ LED – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – AURA RGB header – Addressable Gen 2 headers Front Panel USB 3.2 Gen 2×2 with PD Fast-charge Support – Support: up to 30W charging – Output: 5/9V max. 3A, 12V max 2.5A – Compatible with PD3.0 |
| Software Features | ROG Exclusive Software – GameFirst VI – ROG CPU-Z – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – AURA Creator – AURA Sync – Fan Xpert 4 (with AI Cooling II) – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – Easy Optimization with AI Overclocking – TPU – DIGI+ VRM – Turbo app – PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

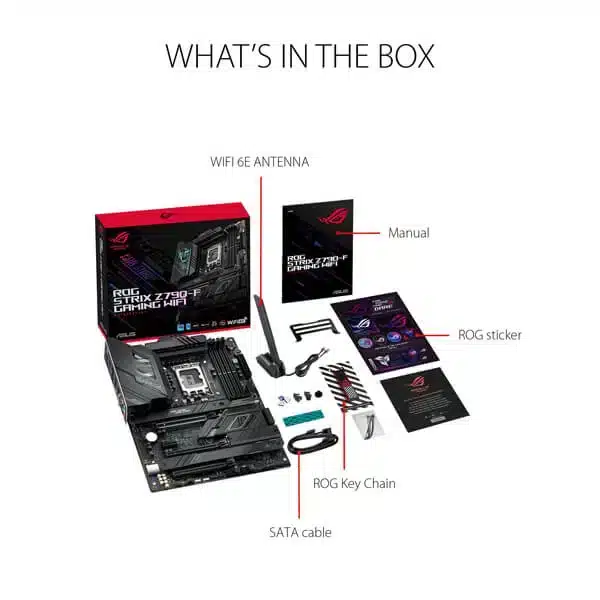

| Accessories | Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 1 x DDR5 Fan holder Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 backplate Q-Latch package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x M.2 Rubber Packages 1 x M.2 backplate Rubber Package Documentation 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Product (mm)_ L*W*H | 305mm*244mm*49mm |
| Color Box (mm)_ L*W*H | 368mm*293mm*290mm |
| Motherboard only | 1.543 Kg |
| Full package | 2.247 Kg |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
