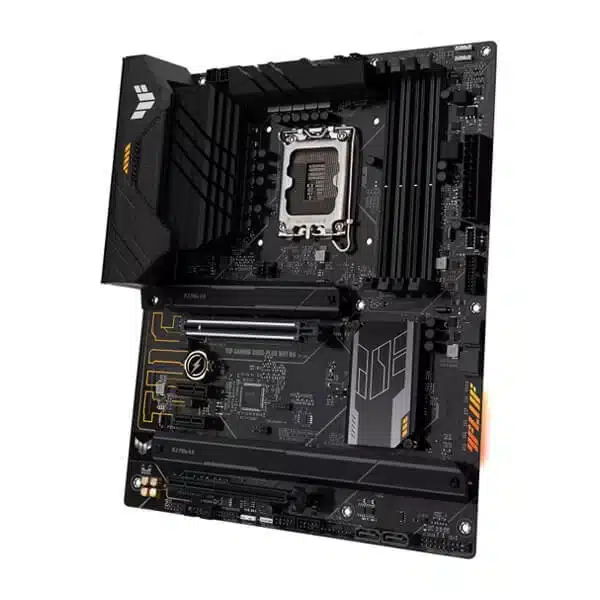

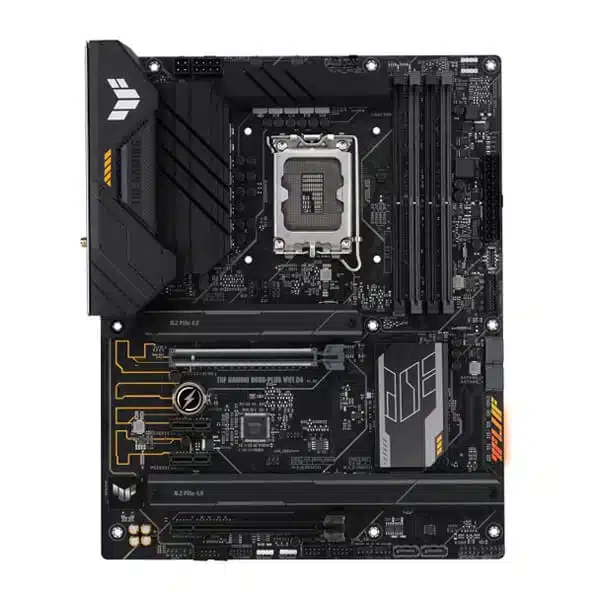

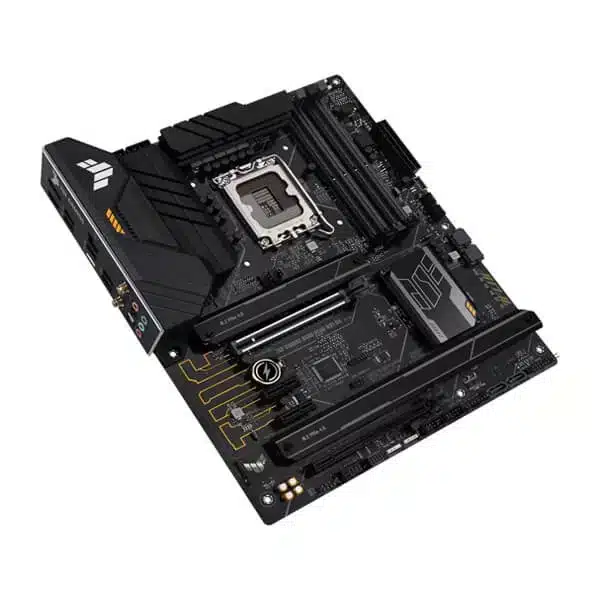

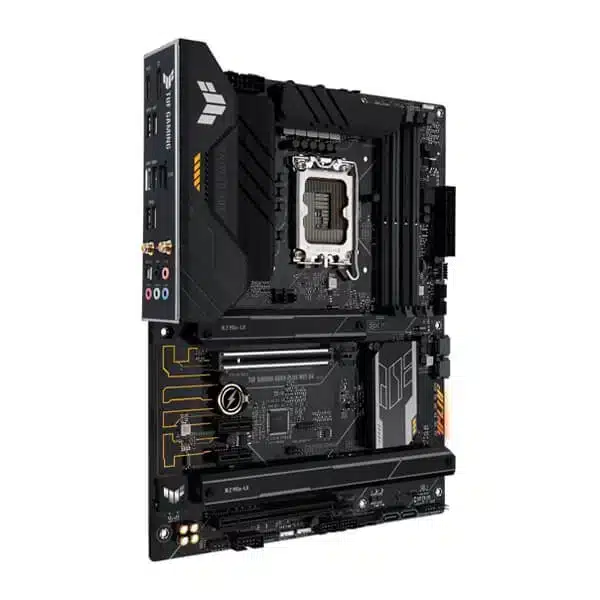

ASUS TUF Gaming B660 Plus WIFI D4

Brand: ASUS
  • Intel® LGA 1700 socket: Ready for 13th & 12th Gen Intel Core™ processors
  • Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
  • Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility
  • Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2×2 Type-C®, front panel header for USB 3.2 Gen 2 Type-C® and Thunderbolt 4™ header support
  • Made for online gaming: Intel® WiFi 6, Intel® 2.5Gb Ethernet, TUF LANGuard
  • Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
SKU: TUF-GAMING-B660-PLUS-WIFI-D4
Brand

Chipset

B660

Memory Type

DDR4

Socket

Form Factor

ATX

🔥 100% Genuine Products Guaranteed

ModxComputers is known for their best in class service and 100% genuine products with full authenticity.

👉 Cash on Delivery Available

Order this product on Cash on Delivery. For more details kindly check details on the checkout page.

20,790

Out of stock

Out of stock

20 People watching this product now!

Payment Methods:

Description

Features:

  • Intel® LGA 1700 socket: Ready for 13th & 12th Gen Intel Core™ processors
  • Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
  • Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility
  • Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2×2 Type-C®, front panel header for USB 3.2 Gen 2 Type-C® and Thunderbolt 4™ header support
  • Made for online gaming: Intel® WiFi 6, Intel® 2.5Gb Ethernet, TUF LANGuard
  • Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Specifications:

CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset Intel® B660 Chipset
Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

Graphics 1 x DisplayPort

1 x HDMI® port

Expansion Slots  Intel® 13th & 12th Gen Processors

1 x PCIe 5.0/4.0/3.0 x16 slot(s)

Intel® B660 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x1 slots

Storage  Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

– Intel® 12th Gen processors support PCIe 4.0 x4 mode.

Intel® B660 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Ethernet 1 x Intel® 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth Wi-Fi 6

2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2

USB  Rear USB (Total 6 ports)

1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

3 x USB 3.2 Gen 1 port(s) (3 x Type-A)

1 x USB 2.0 port(s) (1 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback

Audio Features

– Rear optical S/PDIF out port

– Premium audio capacitors

– Dedicated audio PCB layers

– Audio cover

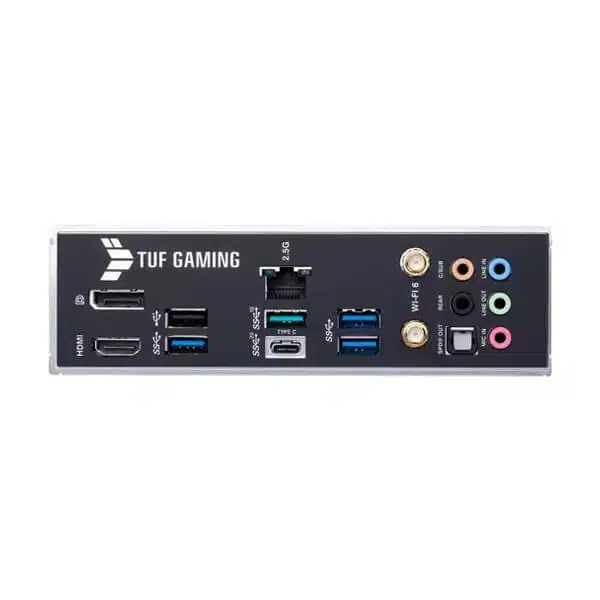

Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

3 x USB 3.2 Gen 1 port(s) (3 x Type-A)

1 x USB 2.0 port(s) (1 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

Internal I/O Connectors Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header

Special Features ASUS TUF PROTECTION

– DIGI+ VRM (- Digital power design with DrMOS)

– Enhanced DRAM Overcurrent Protection

– ESD Guards

– TUF LANGuard

– Overvoltage Protection

– Safeslot

– Stainless-Steel Back I/O

ASUS Q-Design

– M.2 Q-Latch

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot

ASUS Thermal Solution

– M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– CPU Socket lever protector

– ProCool

– Pre-mounted I/O shield

– SafeDIMM

AURA Sync

– AURA RGB header(s)

– Addressable Gen 2 header(s)

Software Features ASUS Exclusive Software

Armoury Crate

– AURA Creator

– AURA Sync

– Fan Xpert 4

– Two-Way AI Noise Cancelation

AI Suite 3

– Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

TUF GAMING CPU-Z

DTS Audio Processing

MyAsus

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

BIOS 128 Mb ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables

2 x SATA 6Gb/s cables

Miscellaneous

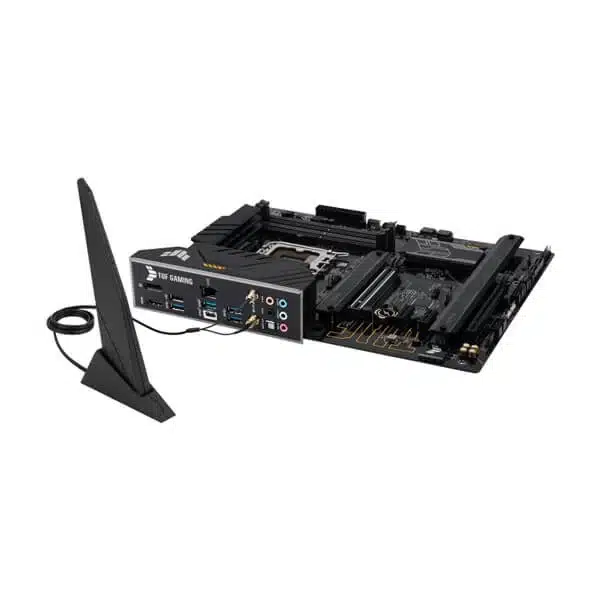

1 x ASUS Wi-Fi moving antennas

2 x M.2 Rubber Package(s)

1 x M.2 SSD screw package(s)

Installation Media

1 x Support DVD

Documentation

1 x TUF Certification card

1 x User guide

Operating System Windows® 11 64-bit, Windows® 10 64-bit
Form Factor ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
