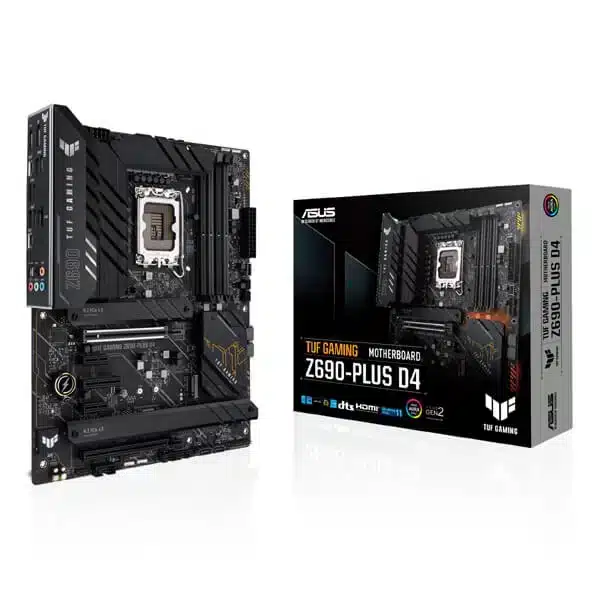

ASUS TUF Gaming Z690 Plus D4

Brand: ASUS
Brand

Chipset

Z690

Form Factor

ATX

Socket

Memory Type

DDR4

🔥 100% Genuine Products Guaranteed

ModxComputers is known for their best in class service and 100% genuine products with full authenticity.

👉 Cash on Delivery Available

Order this product on Cash on Delivery. For more details kindly check details on the checkout page.

25,690

Out of stock

Out of stock

18 People watching this product now!

Payment Methods:

Description

Features:

  • Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors

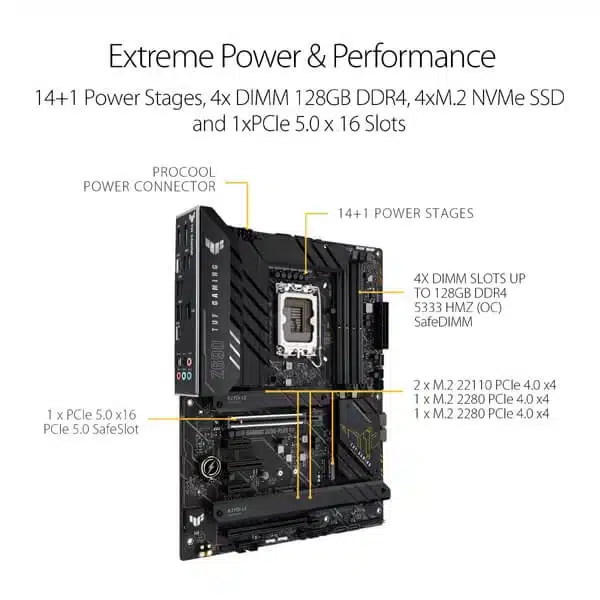

  • Enhanced power solution: 14+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
  • Next-gen connectivity: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ 4 header support
  • Made for online gaming: Intel 2.5 Gb Ethernet and TUF LANGuard
  • Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

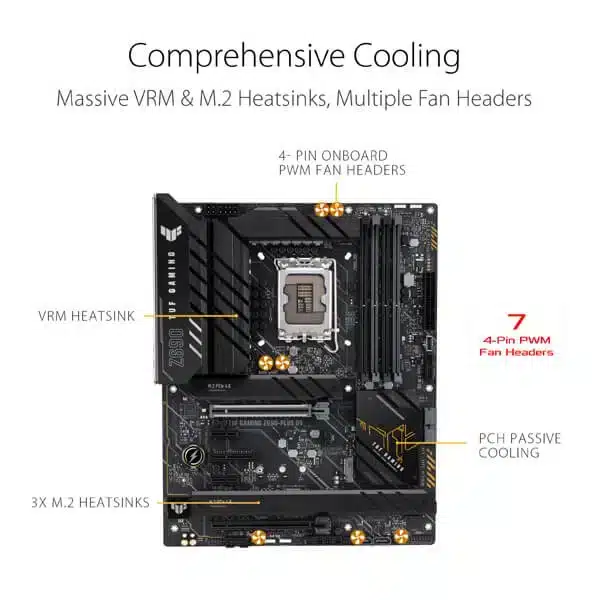

  • Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate

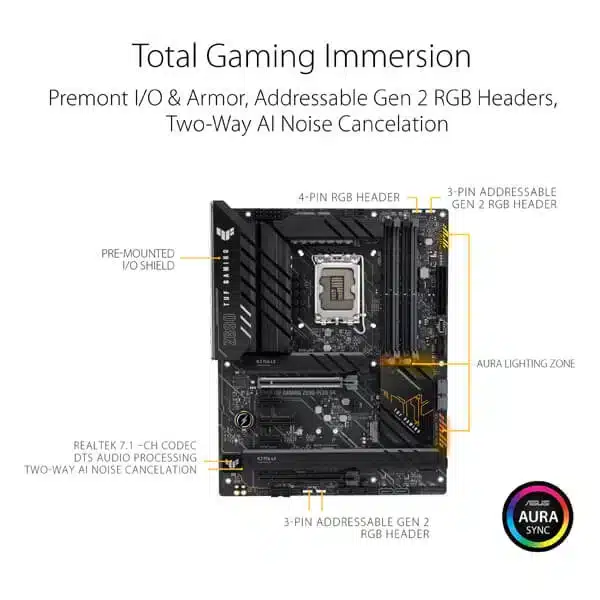

  • Outshine RGB Aura Effect: Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support.

Specifications:

CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Z690
Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)
/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
*Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics 1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slots Intel® 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel® Z690 Chipset**
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check PCIe bifurcation table in support site.
** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
– Intel® 12th Gen processors support PCIe 4.0 x4 mode
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet 1 x Intel® 2.5Gb Ethernet
TUF LANGuard
USB Rear USB:Total 8 ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)

Front USB:Total 7 ports
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Rear optical S/PDIF out port
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio Cover

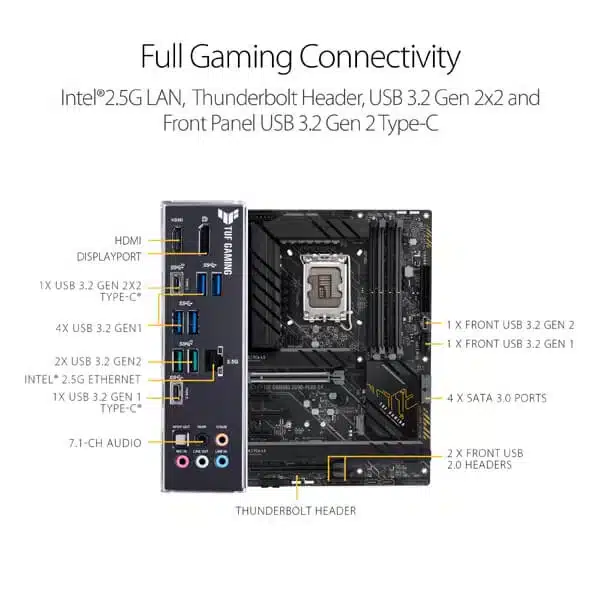

Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
1 x DisplayPort
1 x HDMI® port
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Intrernal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
Special Features ASUS TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– Enhanced DRAM Overcurrent Protection
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– Safeslot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeDIMM
AURA Sync
– AURA RGB header
– Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
– AURA Creator
– AURA Sync
– Fan Xpert 4
– Two-Way AI Noise Cancelation
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE

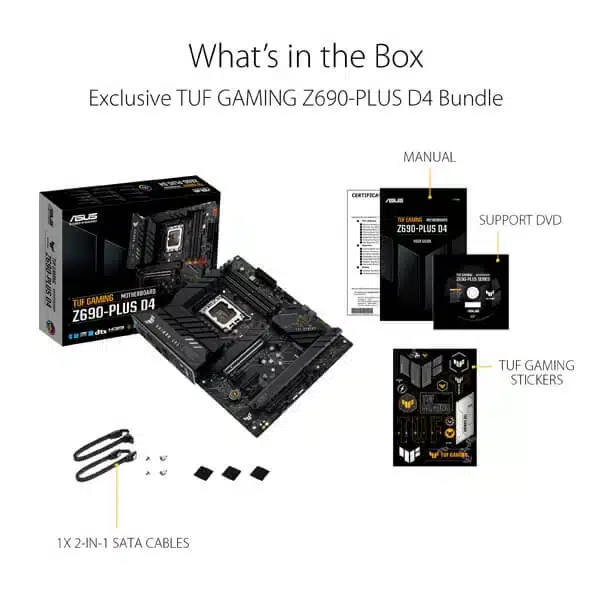

Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
2 x M.2 Rubber Packages
1 x M.2 SSD screw package
1 x TUF GAMING sticker
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User guide
Operating System Windows® 11 64-bit, Windows® 10 64-bit
Form Factor ATX
30.5cm x 24.4cm
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
