Features
Radiant Crystalline Lighting
Cooler Master is introducing a brand new product to the MasterFan family – MF120 Prismatic. It features a tri-loop Addressable RGB lighting with distinctive crystallization on both sides. The Silent Driver IC also offers a smooth and quiet fan operation using 7-blade fan to deliver strong air pressure at maximum air flow.
The Addressable RGB lighting is even more vibrant with certified compatibility across all major motherboard manufacturers. The two-tier sealing design improves dustproof capabilities and prevent lubricant oil leakage for extended life span and performance.
Tri-loop Addressable Rgb Lighting
24 Addressable RGB LEDs are uniformly arranged around the crystalized loop design with an additional 6 Addressable LEDs on the fan hub.
Radiant Crystalline Lighting Effect
Unique crystallized loop design on both sides of the fan provide maximum light dispersion of the addressable RGB.
Silent Driver Ic And Cooling Technology
Silent Driver IC with noise reduction technology offers smooth rotation reduced vibration and fan noise delivering quiet performance even at the highest loads.
Highly Optimized P/Q Performance For All Applications
The MF120 Prismatic features redesigned fan blades producing a pressure to airflow (P/Q) curve that exceeds previous generation performance.
Optimized P/Q curve for all applications such as on heatsinks and watercooling radiators or airflow-oriented applications such as case cooling.
Secure Connection
Includes Addressable RGB connector clips to ensure a secure connection
Crystal Clear Performance
Cooler Master is introducing a brand new product to the MasterFan family – MF120 Prismatic. It features a tri-loop Addressable RGB lighting with distinctive crystallization on both sides. The Silent Driver IC also offers a smooth and quiet fan operation using 7-blade fan to deliver strong air pressure at maximum air flow.The Addressable RGB lighting is even more vibrant with certified compatibility across all major motherboard manufacturers. The two-tier sealing design improves dustproof capabilities and prevent lubricant oil leakage for extended life span and performance.

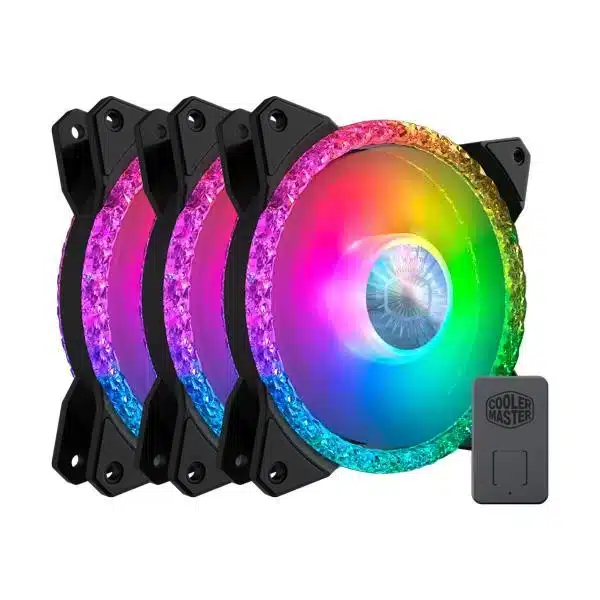

Addressable RGB Controller
Included Addressable RGB Controller gives you the versatility to choose your favorite array of colors. Additionally, it is compatible with the RESET button on your case to reset your chassis lighting.
Specifications
Product Number | MFY-B2DN-203PA-R1 |
Fan Profile | Addressable RGB |
Fan Bearing Type | Rifle Bearing |
Fan Speed | 650-2000 RPM ± 5% |
Fan Airflow | 55 CFM (Max) |
Fan Air Pressure | 2.91 mmH2O (Max) |
Fan Noise Level | 8 – 27 dBA |
Fan Dimensions (L x W x H) | 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
Fan MTTF | 160,000 Hours |
RGB Connector | 3-Pin ARGB |
RGB Rated Voltage | 5V DC |
RGB Rated Current | 0.65A |
Fan Rated Voltage | 12VDC |
Fan Rated Current | 0.12A |
Fan Safety Current | 0.37A |
Fan Power Consumption | 1.44W |
Fan Power Connector | 4-Pin (PWM) |
Fan Weight | 153g / 0.34 lbs |
Series | MasterFan |
Cooler Type | Case Fan |
Warranty | 2 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
