Cooler Master MWE 1050 V2 1050 Watt 80 Plus Gold Fully Modular

The new MWE Gold V2 1050, 1250 series is the next step in the evolution of Cooler Master’s entry level 80 Plus Gold Power Supply line which improves upon the original version in the places where users will see the most immediate benefit in terms of performance and stability for high end pc requirements.

80 PLUS GOLD CERTIFIED

The MWE Gold V2 1050, 1250 series delivers an 80 Plus Gold certification, guaranteeing a typical minimum efficiency of 90%.

RTX READY

The MWE 1050 Gold – V2 comes standard with 2 EPS connectors, 6 PCI-e connectors, and a high maximum wattage in order to ensure universal compatibility with all current gen motherboards and RTX 30 series graphics cards. You can build the high end system of your dreams and run all the latest games without having to break the bank on your PSU. This unit has all the necessary features to power the newest components for a great price.

SILENCE FAN WITH SMART TEMP. CONTROLLING FEATURE

MWE Gold 1050 & 1250 are equipped with a 140mm silence fan with smart temperature controlling feature. The fan supports 0 RPM to achieve 0 noise based on the scenario.

Achieve 0 noise based on the unit’s usage
25dBA max when the unit is on full-load

HIGH TEMPERATURE RESILIENCE

MWE Gold V2 1050 series is able to push its temperature resilience to 50 degree Celsius safely. Such a high threshold greatly improves what’s possible to accomplish with the unit and your system in general. Overclocking and other high intensity applications become way more accessible when the system’s power supply unit can take the heat.

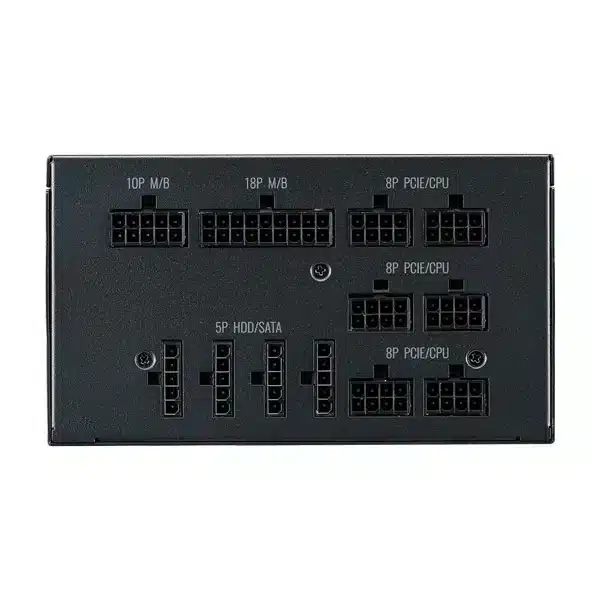

FULL MODULAR CABLING

MWE Gold V2 1050 comes with flat black cables that can be customized to each user’s individual needs. The flat cable design also benefits the overall cable management and improves airflow. MWE Gold V2 1250 also provides enough connectors for the system with the latest motherboards and RTX graphics cards.

10 YEAR WARRANTY
The MWE Gold V2 1050 comes with a standard 10 year manufacturing warranty from the date of purchase.

Specifications

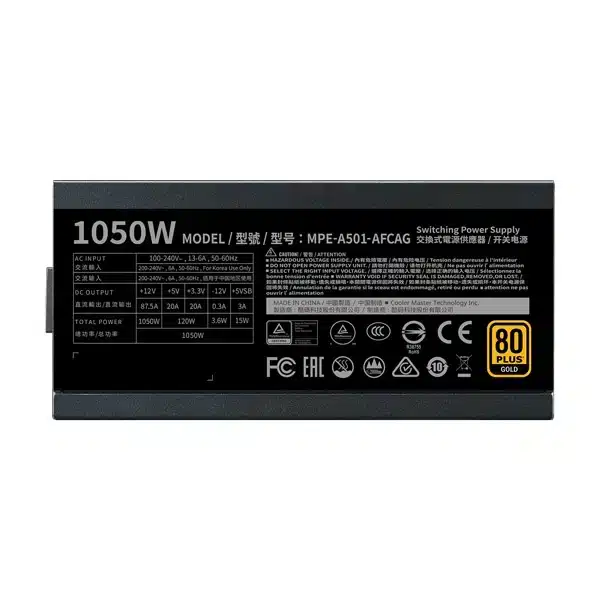

MODEL	MPE-A501-AFCAG
ATX VERSION	ATX 12V V2.52
PFC	Active PFC
INPUT VOLTAGE	90-264V
INPUT CURRENT	13-6A
INPUT FREQUENCY	47-63Hz
DIMENSIONS (L X W X H)	180 x 150 x 86 mm
FAN SIZE	140mm
FAN BEARING	FDB
FAN SPEED	2200 RPM
NOISE LEVEL @ 20%	0 dBA
NOISE LEVEL @ 50%	14.9 dBA
NOISE LEVEL @ 100%	27.3 dBA
EFFICIENCY	90% @ Typical Load
80 PLUS RATING	80 PLUS Gold
ERP 2014 LOT 3	Yes
OPERATING TEMPERATURE	0-50°C
POWER GOOD SIGNAL	100 – 150 ms
HOLD UP TIME	>20ms at 100% Load
MTBF	>100,000 Hours
PROTECTIONS	OVP, UVP, OPP, OTP, SCP, OCP
REGULATORY	TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB
ATX 24-PIN CONNECTORS	1
EPS 4+4 PIN CONNECTORS	1
EPS 8 PIN CONNECTOR	1
SATA CONNECTORS	12
PERIPHERAL 4-PIN CONNECTORS	4
PCI-E 6+2 PIN CONNECTORS	6
MODULAR	Fully Modular
WATTAGE	Above 750W
Warranty	10 Years
Note	***Features, Price and Specifications are subject to change without notice.
