EVGA 650 BR 650 Watt 80 Plus Bronze


SKU: 100-BR-0650-KN Categories: ,



  • 80 PLUS Bronze 230V EU certified, delivering up to 88% efficiency
  • Single 12V. Rail
  • Active Power Factor Correction
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power
    Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • 3 Year Warranty
  •  DC-DC Converter improves 3.3V/5V stability
  •  Quiet and Intelligent Auto Fan for near-silent operation

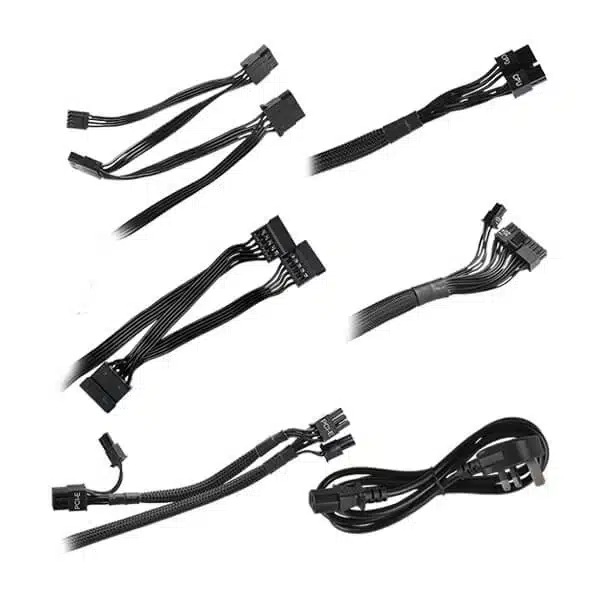

Cable Length
ATX Cable 1x 550mm
EPS Cable 1x 600mm
PCIe Cable 1x 550mm, 670mm
SATA Cable 2x 450mm, 570mm, 690mm
Four-Pin Peripheral Cable 1x 450mm, 570mm, 690mm + 810mm (Floppy)
Floppy Adapter 1x
AC Power 1x 1200mm (m)
Modular Cable Type No
Connector Quantity
24 Pin ATX 1x(20+4)
EPS (CPU) 1x 8pin (4+4)
PCIe 2x 8pin (6+2)
Four-Pin Peripheral 3x
Floppy 1x
Power Specs
Total Wattage 650W
Input Voltage 200-240V~
AC Input 4A
Input Frequency Range 60/50Hz
Efficency 88% typical
Net Weight 4.00 lbs
Japanese Capacitors No
ECO Mode No
MTBF 100,000 Hours
Net Weight 4.4 lbs
Size 86mm (H) x 150mm (W) x 140mm (L)
Approvals TUV, CB, CE, RCM, RoHS
Compliance with ErP Lot 3 2014 Requirement
UPC 843368074951
EAN 4250812445599
Fan Size / Bearing 120mm Long Sleeve Bearing
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
