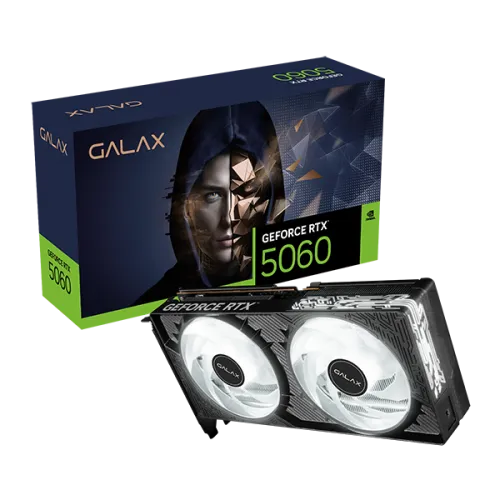

Galax RTX 5060 (1-Click OC) 8GB GDDR7

Overview

• Powered by the NVIDIA Blackwell Architecture and DLSS 4
• Dedicated Tensor Cores
• Dedicated RT Cores
• Microsoft DirectX® 12 Ultimate
• GDDR7 Graphics Memory
• NVIDIA DLSS 4
• NVIDIA® App
• NVIDIA G-SYNC®
• NVIDIA GPU Boost™
• Game Ready and NVIDIA Studio Drivers
• DisplayPort 2.1b, HDMI 2.1b
• VR Ready
• To 1-Click OC, overclock and monitor GPU info of your graphics cards in-App, please make sure your mobile device and PC are connected with the same WiFi network.
• The LED lighting effects can be toggled on or off via the onboard physical switch.
• All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.

GPU Engine Specs:

• CUDA Cores: 3840
• Boost Clock: 2512MHz
• 1-Click OC Clock: 2527MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC)

Memory Specs:

• Memory Speed: 28 Gbps
• Standard Memory Config: 8GB
• Memory Interface Width 128-bit GDDR7
• Memory Bandwidth: 448 GB/sec

Feature Support:

• PCI-E 4.0
• Windows 10/11 64-bit

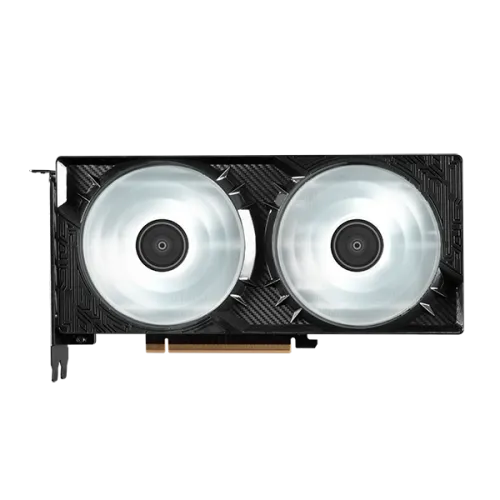

Fan Feature:

• 1 * 92mm
• WINGS 3.0 with Fan stop @ Idle (All Fans)

Display Support:

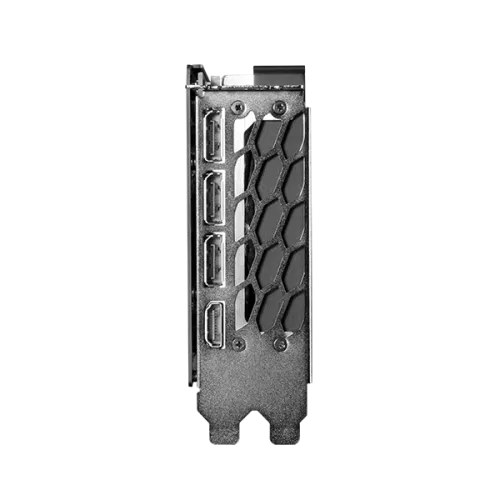

• DisplayPort 2.1b x 3, HDMI 2.1b x 1

Dimensions:

• Dimensions(with Bracket): 247*131*40.6mm
• Dimensions(without Bracket): 235*115.5*39.6mm
