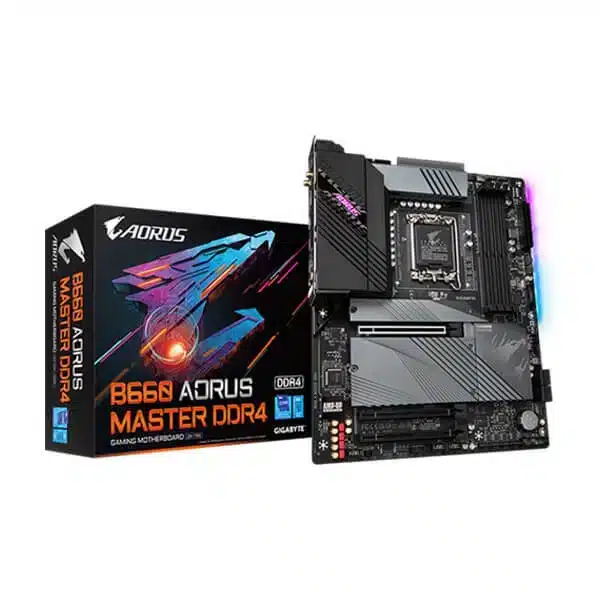

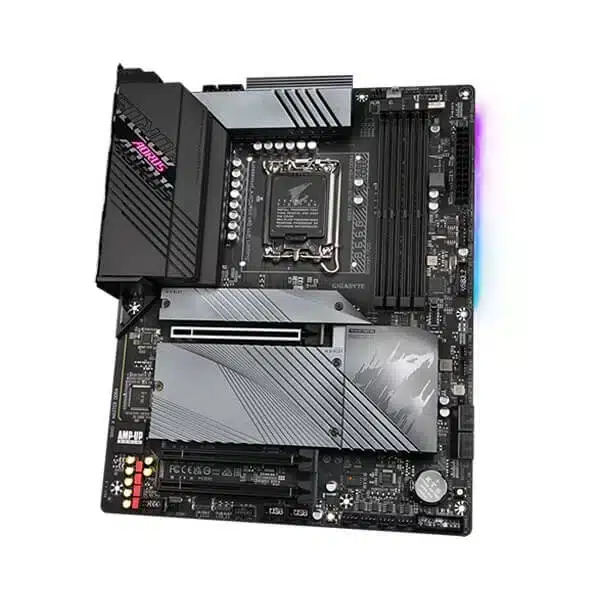

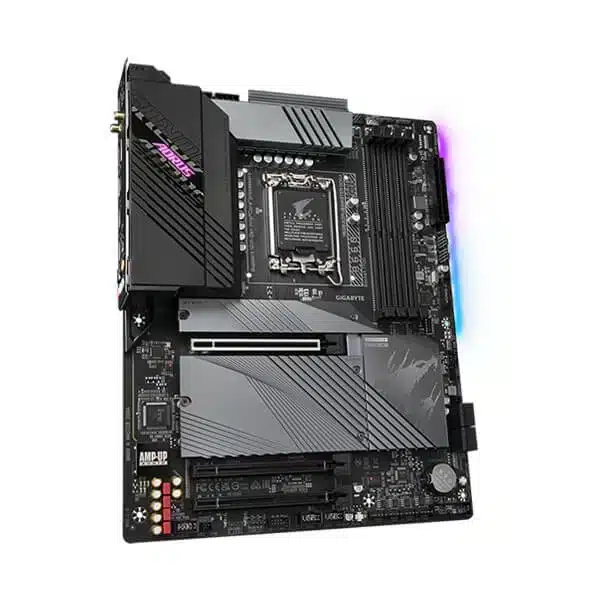

Gigabyte B660 Aorus Master WIFI DDR4

Brand: Gigabyte
SKU: B660-AORUS-MASTER-DDR4
Brand

Memory Type

DDR4

Socket

Chipset

B660

Form Factor

ATX, M-ATX

šŸ”„ 100% Genuine Products Guaranteed

ModxComputers is known for their best in class service and 100% genuine products with full authenticity.

šŸ‘‰ Cash on Delivery Available

Order this product on Cash on Delivery. For more details kindly check details on the checkout page.

21,300

Out of stock

Out of stock

10 People watching this product now!

Description

Features:

IntelĀ® B660 AORUS Motherboard with 16*+1+1 Twin Hybrid Phases Digital VRM Design, Fully Covered Thermal Design , 3 x PCIe 4.0*/3.0 M.2 with Enlarged Thermal Guard, IntelĀ® 2.5GbE LAN, WIFI 6 802.11ax , 120dB Hi-Res Audio with WIMA, Rear USB 3.2 Gen 2×2 Type-CĀ®, RGB FUSION 2.0, Q-Flash Plus

  • Supports 12th Gen IntelĀ®Ā Coreā„¢ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 16*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Amp-Up Audio with ALC1220 and WIMA Audio Capacitors
  • Blazing Fast IntelĀ®Ā 2.5GbE LAN with Bandwidth Management
  • Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Enlarged Thermal Guards
  • SuperSpeed USB 3.2 Gen 2×2 Type-CĀ®Ā delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
    * Actual support may vary by CPU.
    * 8+8 phases parallel power design

Specifications:

CPU LGA1700 socket: Support for 12th Gen IntelĀ® Coreā„¢, PentiumĀ® Gold and CeleronĀ® Processors*
Chipset IntelĀ® B660 Express Chipset
Memory
  1. Support for DDR4Ā 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /Ā 3200/3000/2933/2666/2400/2133 MHz memory modules
  2. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

Onboard Graphics Integrated Graphics Processor-IntelĀ®Ā HD Graphics support:

  1. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports

(Graphics specifications may vary depending on CPU support.)

Audio RealtekĀ® ALC1220-VB CODEC

* The back panel line out jack supports DSD audio.

High Definition Audio 2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN IntelĀ® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module WIFI Module

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
  2. BLUETOOTH 5.2
  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the M2M_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2M_SB connector.
  3. 1 x PCI Express x16 slot, running at x1 (PCIEX1)
    (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology Support for AMD Quad-GPU CrossFireā„¢ and 2-Way AMD CrossFireā„¢ technologies
Storage Interface CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
  3. 4 x SATA 6Gb/s connectors

Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
IntelĀ®Ā Optaneā„¢ Memory Ready
* System acceleration with IntelĀ®Ā Optaneā„¢ Memory can only be enabled on the M.2 connectors supported by the Chipset.

USB Chipset:

  1. 1 x USB Type-CĀ®Ā port on the back panel, with USB 3.2 Gen 2×2 support
  2. 1 x USB Type-CĀ®Ā port with USB 3.2 Gen 2 support, available through the internal USB header
  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  4. 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+2 USB 3.2 Gen 1 Hubs:

  1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 4 x system fan headers
  7. 2 x system fan/water cooling pump headers
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 3 x M.2 Socket 3 connectors
  11. 4 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x USB Type-CĀ®Ā header, with USB 3.2 Gen 2 support
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 headers
  17. 1 x noise detection header
  18. 2 x Thunderboltā„¢ add-in card connectors
  19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  20. 1 x reset button
  21. 1 x Q-Flash Plus button
  22. 1 x reset jumper
  23. 2 x temperature sensor headers
  24. 1 x Clear CMOS jumper

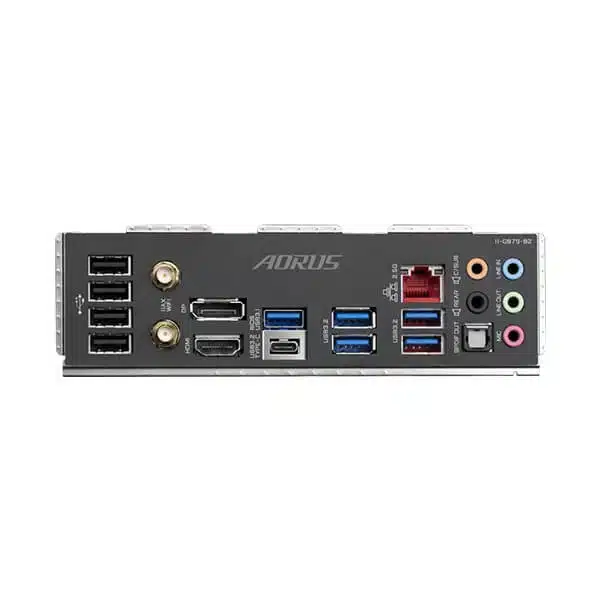

Back Panel Connectors
  1. 1 x USB Type-CĀ®Ā port, with USB 3.2 Gen 2×2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red)
  3. 4 x USB 3.2 Gen 1 ports
  4. 4 x USB 2.0/1.1 ports
  5. 2 x SMA antenna connectors (2T2R)
  6. 1 x DisplayPort
  7. 1 x HDMI 2.0 port
  8. 1 x RJ-45 port
  9. 1 x optical S/PDIF Out connector
  10. 5 x audio jacks
I/O Controller iTEĀ® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  7. Noise detection
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software NortonĀ® Internet Security (OEM version) cFosSpeed
Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
