Features

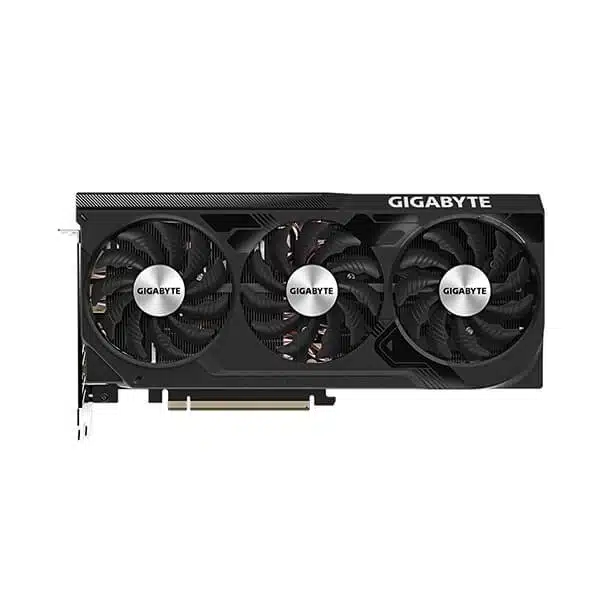

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

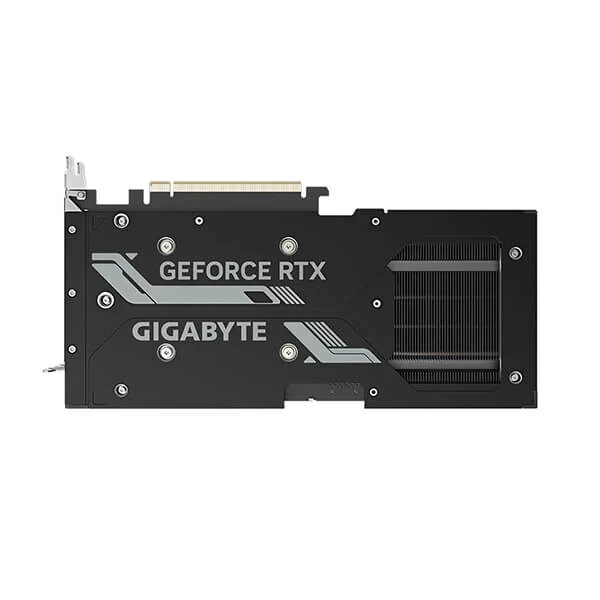

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Technical Detail
Brand : Gigabyte
Modal : GV-N407TWF3OC -12GD
Technical Spec
Chipset : GeForce RTXâ„¢ 4070 Ti
Core Clock : 2625 MHz (Reference Card: 2610 MHz)
CUDA® Cores : 7680
Memory Clock : 21 Gbps
Memory Size : 12 GB
Memory Type : GDDR6X
Memory Bus : 192 bit
Card Bus : PCI-E 4.0
Digital max resolution : 7680×4320
Multi-view : 4
Card size : L=261 W=126 H=50 mm
PCB Form : ATX
DirectX : 12 Ultimate
OpenGL : 4.6
Power requirement : 750W
Power Connectors : 16 pin *1
Output : DisplayPort 1.4a *3, HDMI 2.1a *1
Accessories
1. Quick guide
2. One 16-pin to two 8-pin power adaptor
Specifications
| Model | |
|---|---|
| Brand | GIGABYTE |
| Model | GV-N407TWF3OC -12GD |
| Form Factor | GeForce RTXâ„¢ 4070 Ti |
| Interface | |
| Interface | PCI Express Gen 4 |
| Chipset | |
| GPU | NVIDIA® GeForce RTX™ 4070 Ti |
| Core clock | 2625 MHz (Reference card : 2610 MHz) |
| Memory | |
| Memory Clock | 21 Gbps |
| Memory Size | 12GB |
| Memory Interface | 192-bit |
| Memory Type | GDDR6X |
| 3D API | |
| DirectX | DirectX : 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Ports | |
| HDMI | HDMI 2.1a *1 |
| DisplayPort | 3 x DisplayPort 1.4a |
| General | |
| Max Resolution | 7680 x 4320 |
| Cooler | Triple fan |
| Power Connector | 1 x 16-pin |
