CPU |
AMD Socket AM4, support for: AMD Ryzenâ„¢ 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzenâ„¢ 4000 G-Series Processors/ AMD Ryzenâ„¢ 3000 Series Processors/ AMD Ryzenâ„¢ 3000 G-Series Processors/ AMD Ryzenâ„¢ 2000 Series Processors/ AMD Ryzenâ„¢ 2000 G-Series Processors |
Chipset |
AMD X570 |
Memory |
- AMD Ryzenâ„¢ 5000 Series processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- AMD Ryzenâ„¢ 4000 G-Series processors:
Support for DDR4 5400(O.C.)/ 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- AMD Ryzenâ„¢ 3000 Series processors:
Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.)/ 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- AMD Ryzenâ„¢ 3000 G-Series Processors/AMD Ryzenâ„¢ 2000 Series Processors/ AMD Ryzenâ„¢ 2000 G-Series Processors:
Support for DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory moduleses
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
|
Onboard Graphics |
Integrated Graphics Processor:
- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
For AMD Ryzenâ„¢ 4000 G-Series Processors/AMD Ryzenâ„¢ 3000 G-Series Processors/AMD Ryzenâ„¢ 2000 G-Series Processors only. |
Audio |
- Realtek® ALC1220-VB Audio CODEC
* The back panel line out jack supports DSD audio.
- Support for DTS:X® Ultra
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
|
LAN |
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication module |
Intel® Wi-Fi 6 AX200
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 5.1
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
|
Expansion Slots |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzenâ„¢ 5000 Series Processors/AMD Ryzenâ„¢ 3000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzenâ„¢ 4000 G-Series Processors/AMD Ryzenâ„¢ 2000 Series Processors support PCIe 3.0 x16 mode
- AMD Ryzenâ„¢ 3000 G-Series Processors/AMD Ryzenâ„¢ 2000 G-Series Processors support PCIe 3.0 x8 mode
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
- AMD Ryzenâ„¢ 5000 Series Processors/AMD Ryzenâ„¢ 3000 Series Processors support PCIe 4.0 x8 mode
- AMD Ryzenâ„¢ 4000 G-Series Processors/AMD Ryzenâ„¢ 2000 Series Processors support PCIe 3.0 x8 mode
- AMD Ryzenâ„¢ 3000 G-Series Processors/AMD Ryzenâ„¢ 2000 G-Series Processors do not support this slot.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
- Supporting PCIe 4.0*/3.0 x4 mode
* For AMD Ryzenâ„¢ 5000 Series Processors/AMD Ryzenâ„¢ 3000 Series Processors only.
|
Multi-Graphics Technology |
- Support forAMDQuad-GPU CrossFireâ„¢ and 2-WayAMD CrossFireâ„¢ technologies
For AMD Ryzenâ„¢ 5000 Series Processors/AMD Ryzenâ„¢ 4000 G-Series Processors/AMD Ryzenâ„¢ 3000 Series Processors/AMD Ryzenâ„¢ 2000 Series Processors only |
Storage Interface |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
- AMD Ryzenâ„¢ 5000 Series Processors/AMD Ryzenâ„¢ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
- AMD Ryzenâ„¢ 4000 G-Series Processors/AMD Ryzenâ„¢ 3000 G-Series Processors/AMD Ryzenâ„¢ 2000 Series Processors/AMD Ryzenâ„¢ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
- Supporting PCIe 4.0*/3.0 x4/x2 SSDs
* For AMD Ryzenâ„¢ 5000 Series Processors/AMD Ryzenâ„¢ 3000 Series Processors only.
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
- Supporting SATA and PCIe 4.0*/3.0 x4/x2 SSDs
* For AMD Ryzenâ„¢ 5000 Series Processors/AMD Ryzenâ„¢ 3000 Series Processors only.
6 x SATA 6Gb/s connectors, integrated in the Chipset:
- Support for RAID 0, RAID 1, and RAID 10
* Refer to “1-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
|
USB |
CPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 3 x USB 3.2 Gen 1 ports on the back panel
Chipset+ASMedia® USB 3.2 Gen 2×2 Controller:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
|
Internal I/O Connectors |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 4 x system fan headers
- 2 x system fan/water cooling pump headers
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 1 x CPU cooler LED strip/RGB LED strip header
- 3 x M.2 Socket 3 connectors
- 6 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 1 headers
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
- 1 x Thunderboltâ„¢ add-in card connector
- 1 x Clear CMOS jumper
- 2 x temperature sensor headers
|

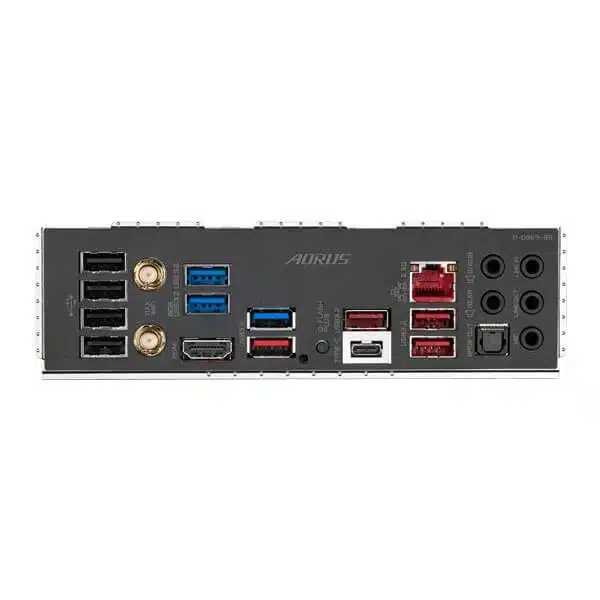

Back Panel Connectors |
- 4 x USB 2.0/1.1 ports
- 2 x SMA antenna connectors (2T2R)
- 1 x HDMI port
- 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
- 4 x USB 3.2 Gen 2 Type-A ports (red)
- 3 x USB 3.2 Gen 1 ports
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 5 x audio jacks
|
I/O Controller |
iTE® I/O Controller Chip |
H/W Monitoring |
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
|
BIOS |
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Unique Features |
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each applicationmay also vary depending onmotherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
- Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
|
Bundled Software |
- Norton® Internet Security (OEM version)
- cFosSpeed
|
Operating System |
Support for Windows 10 64-bit |
Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
Warranty |
3 Years |
Note |
***Features, Price and Specifications are subject to change without notice. |
