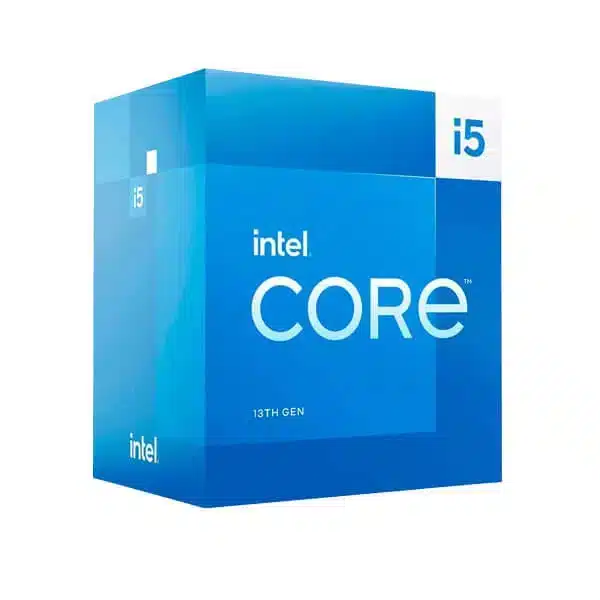

Intel Core i5-13500 Processor is a 13th Gen Desktop Processor. This Products formerly Raptor Lake It has 14 Cores and 20 Threads. Max Turbo Frequency 4.80GHz. 24 MB Intel Smart Cache Memory, with Intel UHD Graphics 770.
Specification:
Essentials | |
Product Collection | 13th Generation Intel® Core™ i5 Processors |
Code Name | Products formerly Raptor Lake |
Vertical Segment | Desktop |
Processor Number | i5-13500 |
Lithography | Intel 7 |
Use Conditions | PC/Client/Tablet |
CPU Specifications | |
Total Cores | 14 |
# of Performance-cores | 6 |
# of Efficient-cores | 8 |
Total Threads | 20 |
Max Turbo Frequency | 4.80 GHz |
Performance-core Max Turbo Frequency | 4.80 GHz |
Efficient-core Max Turbo Frequency | 3.50 GHz |
Performance-core Base Frequency | 2.50 GHz |
Efficient-core Base Frequency | 1.80 GHz |
Cache | 24 MB Intel® Smart Cache |
Total L2 Cache | 11.5 MB |
Processor Base Power | 65 W |
Maximum Turbo Power | 154 W |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 128 GB |
Memory Types | Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
Max # of Memory Channels | 2 |
Max Memory Bandwidth | 76.8 GB/s |
ECC Memory Supported ‡ | Yes |
Processor Graphics | |
Processor Graphics ‡ | Intel® UHD Graphics 770 |
Graphics Max Dynamic Frequency | 1.55 GHz |
Graphics Base Frequency | 300 MHz |
Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
Execution Units | 32 |
Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
DirectX* Support | 12 |
OpenGL* Support | 4.5 |
OpenCL* Support | 3.0 |
Multi-Format Codec Engines | 2 |
Intel® Quick Sync Video | Yes |
Intel® Clear Video HD Technology | Yes |
# of Displays Supported ‡ | 4 |
Device ID | 0x4680 |
Expansion Options | |
Direct Media Interface (DMI) Revision | 4.0 |
Max # of DMI Lanes | 8 |
Scalability | 1S Only |
PCI Express Revision | 5.0 and 4.0 |
PCI Express Configurations ‡ | Up to 1×16+4, 2×8+4 |
Max # of PCI Express Lanes | 20 |
Package Specifications | |
Max CPU Configuration | 1 |
Thermal Solution Specification | PCG 2020C |
TJUNCTION | 100°C |
Package Size | 45.0 mm x 37.5 mm |
Advanced Technologies | |
Intel® Gaussian & Neural Accelerator | 3.0 |
Intel® Thread Director | Yes |
Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
Intel® Speed Shift Technology | Yes |
Intel® Turbo Boost Max Technology 3.0 ‡ | No |
Intel® Turbo Boost Technology ‡ | 2.0 |
Intel® Hyper-Threading Technology ‡ | Yes |
Intel® 64 ‡ | Yes |
Instruction Set | 64-bit |
Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
Idle States | Yes |
Enhanced Intel SpeedStep® Technology | Yes |
Thermal Monitoring Technologies | Yes |
Intel® Volume Management Device (VMD) | Yes |
Security & Reliability | |
Intel® Standard Manageability (ISM) ‡ | Yes |
Intel® Control-Flow Enforcement Technology | Yes |
Intel® AES New Instructions | Yes |
Secure Key | Yes |
Intel® OS Guard | Yes |
Execute Disable Bit ‡ | Yes |
Intel® Boot Guard | Yes |
Mode-based Execute Control (MBEC) | Yes |
Intel® Virtualization Technology (VT-x) ‡ | Yes |
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
