Fell the Difference With Lian Li O11 Dynamic Range of Computer Cabinets, The O11 Dynamic Mini, Now Featured in Snow White Color Accent, Supports 360mm Radiator Mount, SFX PSU, 7 Expansion Slots and more..
Think Big. Build Small.

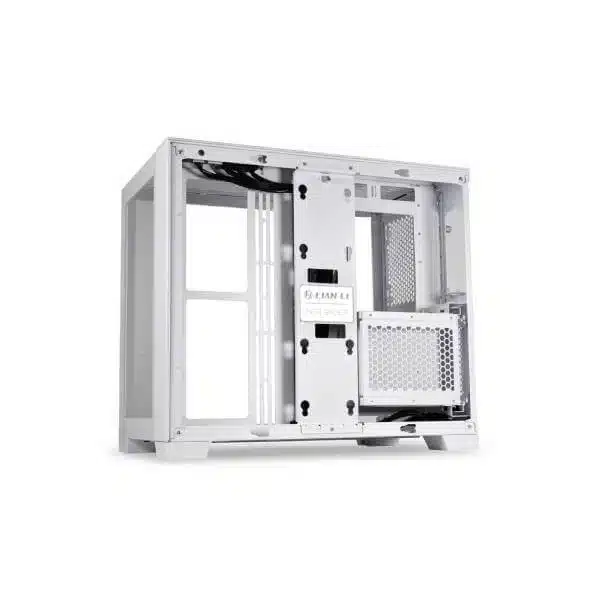

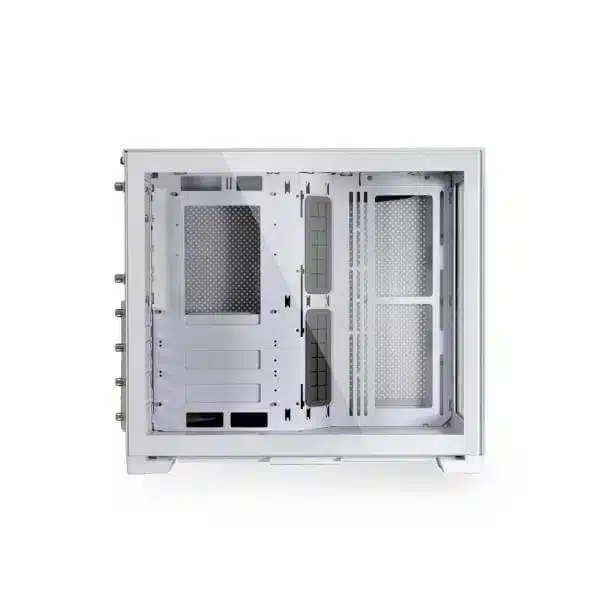

O11D MINI adding to the O11 Dynamic series, the classic and mordern looking. A case that would accommodate the maximum number of water-cooling configurations without being oversized. With a modular back panel design, the user has the option to choose from 3 slots/ 5 slots/ 7 slots I/O shield to optimize the case to the configuration of user’s choice. Supports mini-ITX, micro-ATX, ATX, motherboard sizes. and up to 9 fans to cool the chassis.
- Space for ATX-, Micro-ATX- or Mini-ITX-form factor
- A wide range of configuration options for radiators and fans at
the top, bottom, and beside the motherboard
- three different pump stands are provided to accommodate
different water cooling scenarios.
- Can hold up to 4 storage drives
Support 2 x USB 3.0, 1 x USB 3.1 TYPE-C. 1 x HD Audio
|Product Name||O11 Dynamic MINI|
|DIMENSIONS||(D)420mm X (W)269.5mm X (H)380mm|
|MOTHERBOARD||ATX/ Micro-ATX/ Mini-ITX|
|MATERIAL||0.8mm SPCC (body)
1mm SPCC (interior, back panel)
4 mm Tempered Glass
2mm Aluminum (top and left panel)
|FAN SUPPORT||Top: 3x 120mm or 2x 140mm
Side: 2x 120mm or 2x 140mm
Bottom: 3x 120mm or 2x 140mm
Rear: 1x 120mm
|RADIATOR SUPPORT||Top: 360mm or 280mm or 240mm radiator
Side: 240mm or 280mm radiator
Bottom: 360 or 280mm or 240mm radiator
|GPU LENGTH CLEARANCE||395mm|
|CPU COOLER HEIGHT CLEARANCE||170mm|
|DRIVES||Right side 2 x 2.5″ SSD + back plate 2 x 3.5″ HDD (or SSD)|
|EXPANSION SLOTS||3 or 5 or 7 slots (depends on back panel)|
|IO PORTS||2 x USB 3.0, 1 x USB 3.1 TYPE-C, 1 x HD Audio, Power Button|
|DUST FILTERS||1 x Top, 1 x Bottom, 2 x Side|
|Note||***Features, Price and Specifications are subject to change without notice.|
