Features

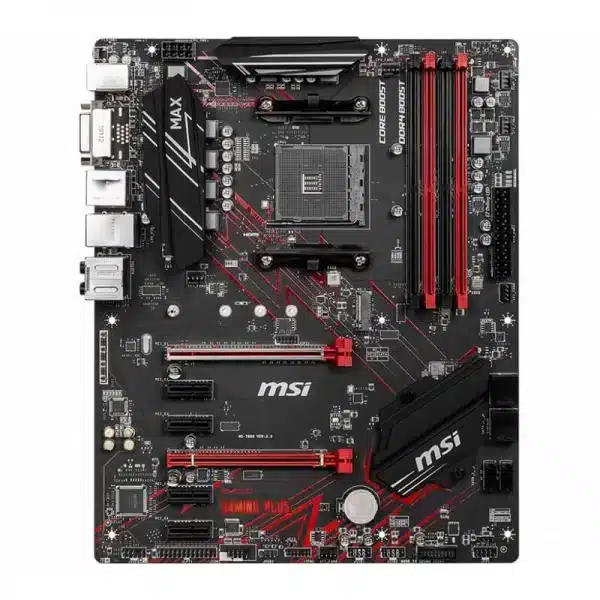

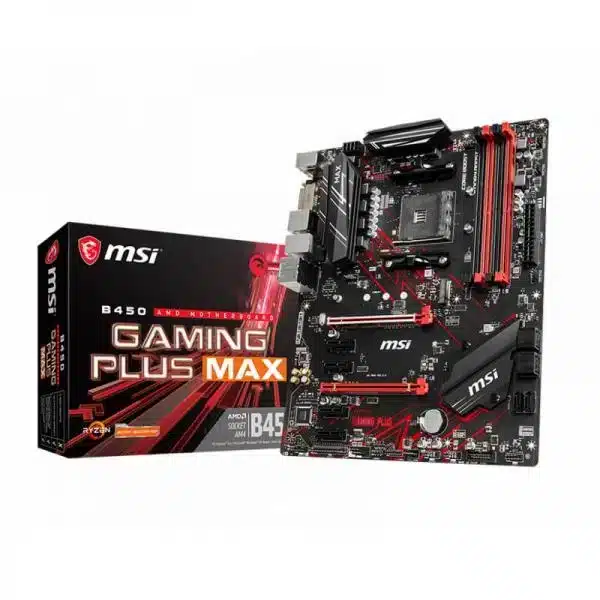

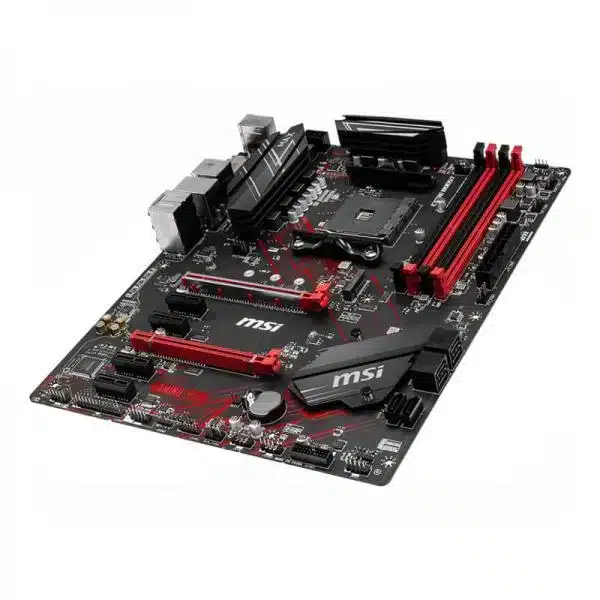

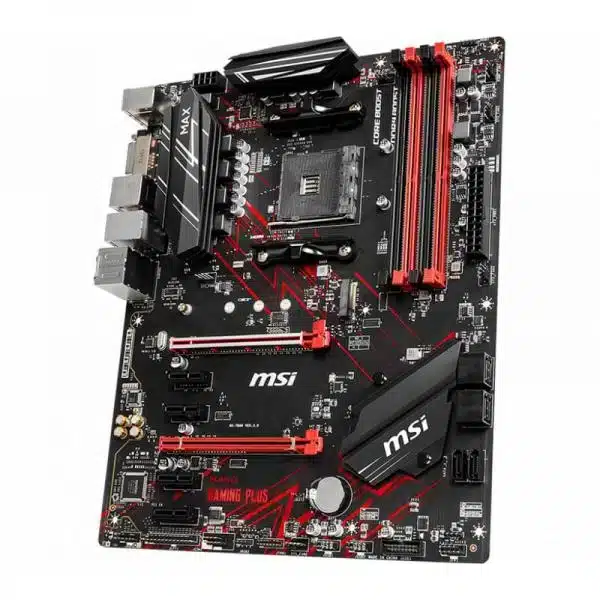

Satisfying gamers with what they really need, B450 GAMING PLUS MAX is equipped with Core boost, Turbo M.2, DDR4 Boost, USB 3.2 Gen2 Connector
- Supports 1st, 2nd and 3rd Gen AMD Ryzenâ„¢ / Ryzenâ„¢ with Radeonâ„¢ Vega Graphics and 2nd Gen AMD Ryzenâ„¢ with Radeonâ„¢ Graphics / Athlonâ„¢ with Radeonâ„¢ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 4133(OC) MHz
- Lightning Fast Game experience: TURBO M.2, AMD Turbo USB 3.2Â GEN2, StoreMI Technology
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card
Specifications
PROCESSOR |
Supports 1st, 2nd and 3rd Gen AMD Ryzenâ„¢, Ryzenâ„¢ with Radeonâ„¢ Vega Graphics, 2nd Gen AMD Ryzenâ„¢ with Radeonâ„¢ Graphics and Athlonâ„¢ with Radeonâ„¢ Vega Graphics Desktop Processors for Socket AM4 |
CHIPSET |
AMD® B450 Chipset |
MEMORY |
- 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
- For AMD Ryzen Gen3 (R5/R7/R9)
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE)
- For AMD Other CPU
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE)
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
|
SLOTS |
- 1 x PCIe 3.0 x16 slot (PCI_E1)
- 1st, 2nd and 3rd Gen AMD Ryzenâ„¢ support x16 mode
- Ryzenâ„¢ with Radeonâ„¢ Vega Graphics and 2nd Gen AMD Ryzenâ„¢ with Radeonâ„¢ Graphics support x8 mode
- Athlonâ„¢ with Radeonâ„¢ Vega Graphics support x4 mode
- 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
- 4 x PCIe 2.0 x1 slots
- PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.
|
ONBOARD GRAPHICS |
- 1 x DVI-D port, support a maximum resolution of 1920×1200 @60Hzz
- 1 x HDMIâ„¢ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz
- Only support when using Ryzenâ„¢ with Radeonâ„¢ Vega Graphics, 2nd Gen AMD Ryzenâ„¢ with Radeonâ„¢ Graphics and Athlonâ„¢ with Radeonâ„¢ Vega Graphics processors
- Maximum shared memory of 2048 MB
|
MULTI-GPU |
Supports 2-Way AMD® CrossFire™ Technology |
STORAGE |
AMD® CPU
- 2 x SATA 6Gb/s ports
- 1 x M.2 slot (Key M)
- Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzenâ„¢, Ryzenâ„¢ with Radeonâ„¢ Vega Graphics and 2nd Gen AMD Ryzenâ„¢ with Radeonâ„¢ Graphics) or PCIe 3.0 x2 (Athlonâ„¢ with Radeonâ„¢ Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
AMD® B450 Chipset
- SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
|
RAID |
AMD® B450 Chipset
- Supports RAID 0, RAID1 and RAID 10 for SATA storage devices
|
USB |
AMD® B450 Chipset
- 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
- 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® CPU
- 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
|
AUDIO |
Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
|
LAN |
1 x Realtek® 8111H Gigabit LAN controller |
INTERNAL CONNECTORS |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water-pump-fan connector
- 4 x 4-pin system fan connectors
- 1 x TPM module connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
- 2 x 5050 RGB LED strip 12V connectors
|

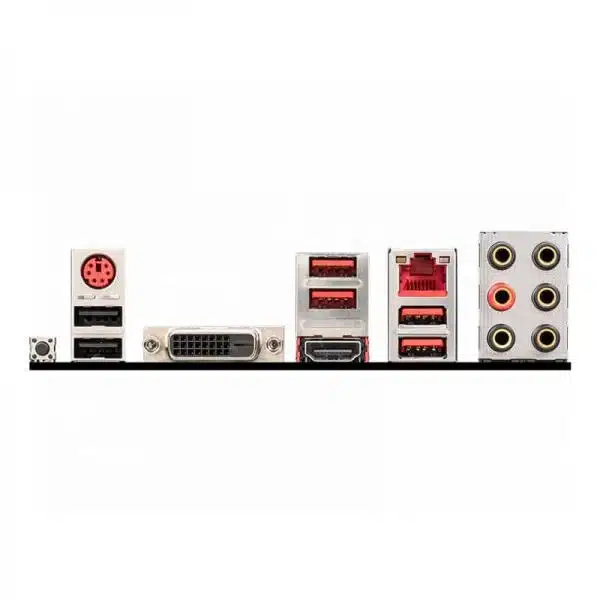

BACK PANEL PORTS |
- PS/2 Combo Port
- USB 3.2 Gen1
- LAN Port
- HD Audio Connectors
- Flash BIOS Button
- USB 2.0 Ports
- DVI-D Port
- HDMI Port
- USB 3.2 Gen2
|
DIMENSIONS |
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- ATX Form Factor
|
MOUNTING |
9 mounting holes |
OPERATING SYSTEM |
Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
Warranty |
3 Years |
Note |
***Features, Price and Specifications are subject to change without notice. |
