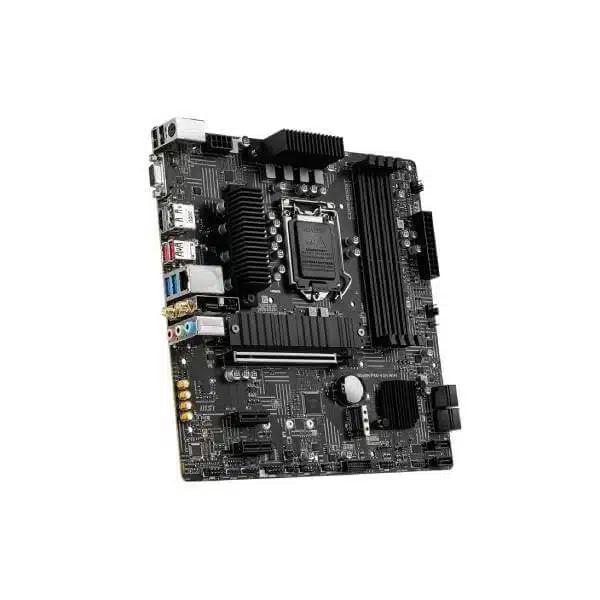

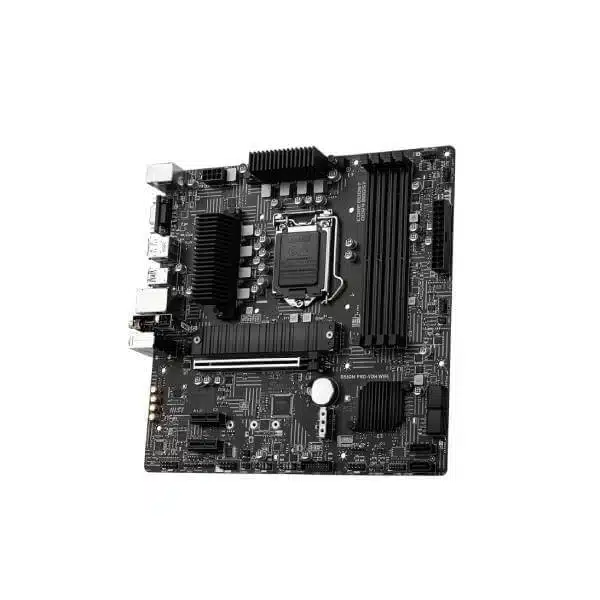

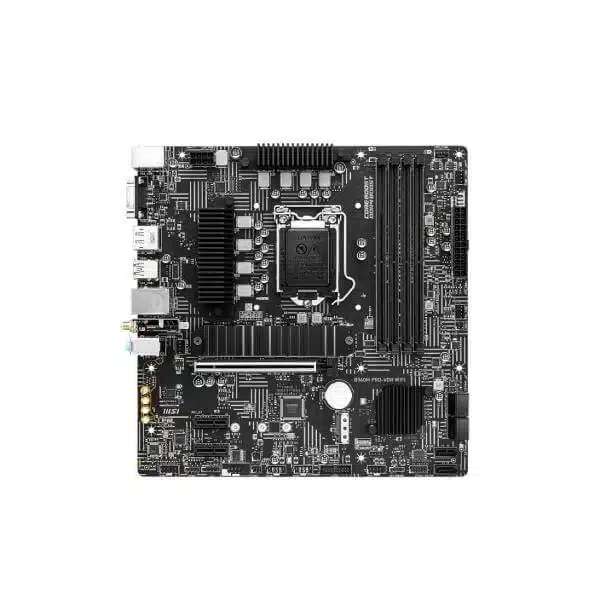

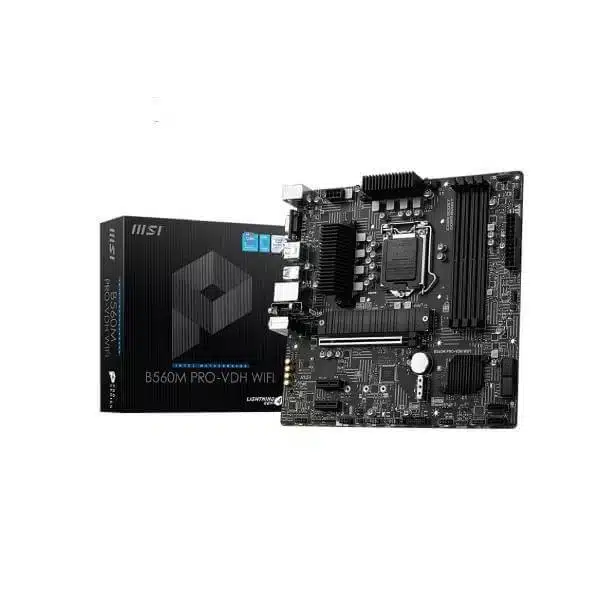

MSI B560M PRO-VDH WIFI

Brand: MSI
Brand

Chipset

B560

Form Factor

M-ATX

Memory Type

DDR4

Socket

šŸ”„ 100% Genuine Products Guaranteed

ModxComputers is known for their best in class service and 100% genuine products with full authenticity.

šŸ‘‰ Cash on Delivery Available

Order this product on Cash on Delivery. For more details kindly check details on the checkout page.

11,210

Out of stock

Out of stock

13 People watching this product now!

Description

MSI Pro Series Intel 11th Gen Rocket Lake Micro-ATX Motherboard, The B560M VDH WiFi Features DDR4 5000 Memory Support, 2.5 Gigabit Gaming LAN, Intel WiFI 6, Audio Boost and Copper OZ PCB for Longer Life.

Features

B560M PRO-VDH WIFI

  • Supports 10th Gen IntelĀ®Ā Coreā„¢, 11th Gen IntelĀ®Ā Coreā„¢, PentiumĀ®Ā Gold and CeleronĀ®Ā processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5066(OC) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications

CPU Supports 10th Gen IntelĀ® Coreā„¢ Processors, 11th Gen IntelĀ® Coreā„¢ Processors, PentiumĀ® Gold and CeleronĀ® Processors1

Processor socket LGA1200

MEMORY 4x DDR4 memory slots, support up to 128GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen IntelĀ® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen IntelĀ® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports IntelĀ® Extreme Memory Profile (XMP)
EXPANSION SLOT
  • 1x PCIe x16 slot (From CPU)
    • PCI_E1 (From CPU)
      • Support up to PCIe 4.0 for 11th Gen IntelĀ®Ā CPU
      • Support up to PCIe 3.0 for 10th Gen IntelĀ®Ā CPU
  • 2x PCIe 3.0 x1 slots (From B560 chpiset)
ONBOARD GRAPHICS
  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
  • 1x VGA port, supports the maximum resolutions of 2048×1536 @50Hz, 2048×1280 @60Hz and 1920×1200 @60Hz
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
AUDIO RealtekĀ® AL897 Codec
7.1-Channel High Definition Audio
NETWORKING / LANĀ  / WiFI 1xĀ  RealtekĀ® 8125B 2.5Gbps LAN controller

IntelĀ®Ā Wi-Fi 6 AX201

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • WiFi 6 pre certified
  • Supports BluetoothĀ®Ā 5.1, FIPS, FISMA
STORAGE
  • 6x SATA 6Gb/s ports (From B560 chipset)
  • 2x M.2 slot (Key M)
    • M2_1 slot
      • Supports up to PCIe 4.0 x4 for 11th Gen IntelĀ®Ā CPU (From CPU)
      • Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen IntelĀ®Ā CPU (From B560 chipset)1
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot
      • Supports up to PCIe 3.0 x4
      • Supports 2242/ 2260/ 2280 storage devices
      • IntelĀ®Ā Optaneā„¢ Memory Ready1
  • Supports IntelĀ®Ā Smart Response Technology for Intel Coreā„¢Ā processors
USB IntelĀ®Ā B560 Chipset

  • 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 2x USB 2.0 Type-A ports on the back panel

USB Hubs GL850G

  • 4x USB 2.0 ports are available through the internal USB 2.0 connectors
FORM FACTOR Miro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
BIOS FEATURES 1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.2, SMBIOS 3.0
Multi-language
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 2x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Tuning Controller Connector
LED FEATURE
  • 1x 4-pin RGB LED connector
  • 1x 3-pin RAINBOW LED connector
  • 4x EZ Debug LED

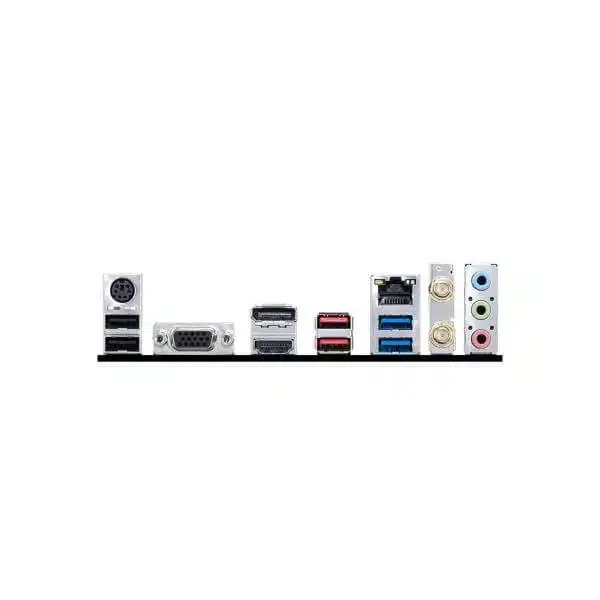

BACK PANEL CONNECTORS Keyboard / Mouse
VGA
DisplayPort
USB 3.2 Gen 2 10Gbps Type-A
LAN port
Audio connector
USB 2.0
HDMI
USB 3.2 Gen 1 5Gbps Type-A
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
