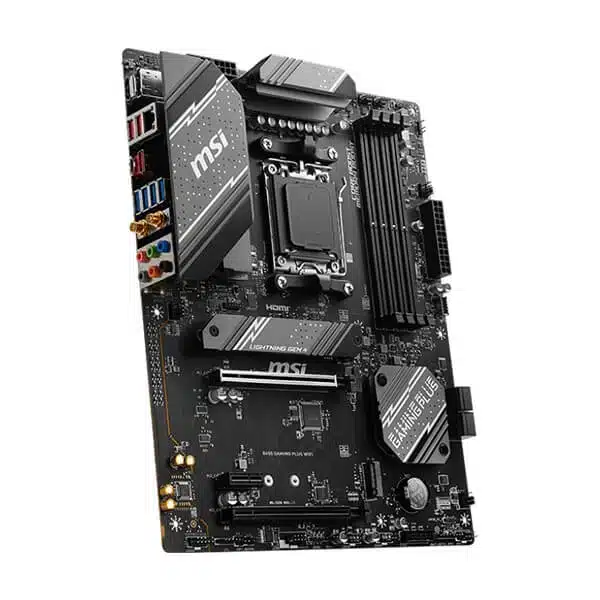

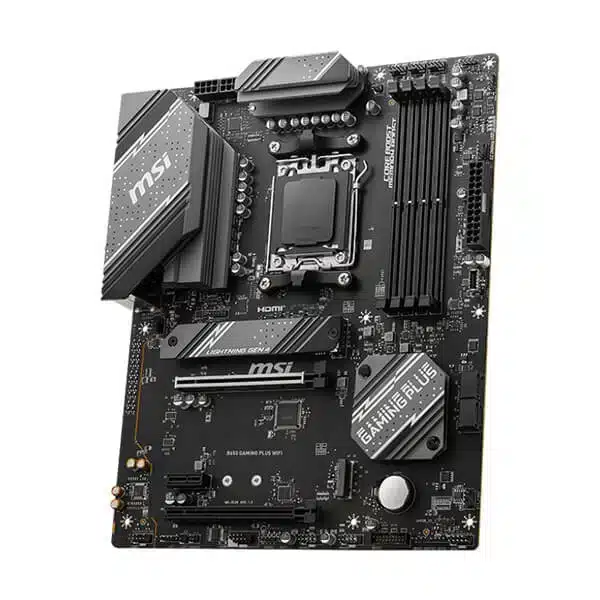

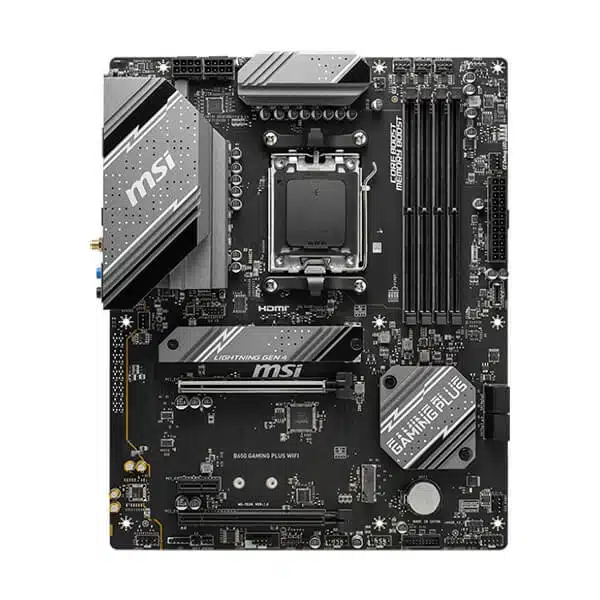

MSI B650 Gaming Plus WIFI (DDR5)

Brand: MSI
SKU: B650-GAMING-PLUS-WIFI
Chipset

B650

Memory Type

DDR5

Socket

Brand

Form Factor

ATX

🔥 100% Genuine Products Guaranteed

ModxComputers is known for their best in class service and 100% genuine products with full authenticity.

👉 Cash on Delivery Available

Order this product on Cash on Delivery. For more details kindly check details on the checkout page.

17,090

18 People watching this product now!

Description

MSI B650 GAMING PLUS WIFI Motherboard Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC) and also Supports AMD Ryzen 7000 Series Desktop Processors. Featuring PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2 20G.

Features:

  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
  • Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2 20G
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specification:

Model B650 GAMING PLUS WIFI
Chipset AMD B650
CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6000+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

Onboard Graphics 1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz
EXPANSION SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Multi-GPU AMD MULTI-GPU Support
Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 3x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® 8125BG 2.5G LAN
WIRELESS / BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3

Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 4x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Com Port (JCOM)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 3.2 Gen1 Type A ports
  • 1x USB 3.2 Gen2 Type C ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
  • DisplayPort
  • 2.5G LAN
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • Wi-Fi / Bluetooth
  • Audio connectors
  • Flash BIOS Button
  • HDMI™
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • USB 3.2 Gen 2×2 20Gbps (Type-C)
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L) ATX
243.84mmx304.8mm
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
