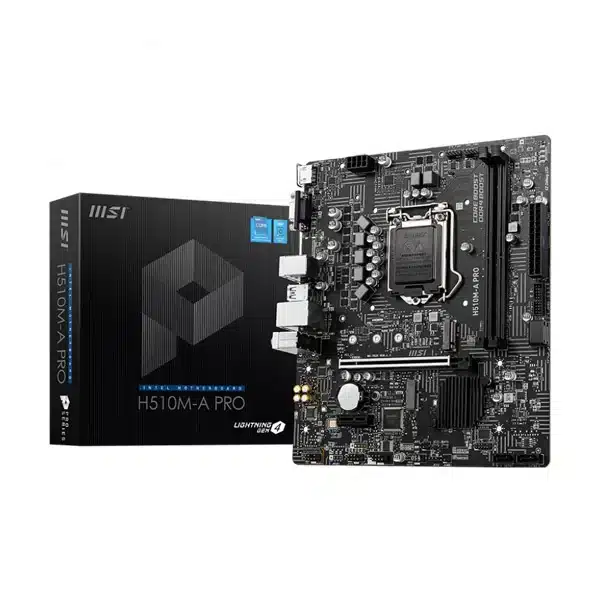

MSI H510M-A-PRO

Brand: MSI
Brand

Chipset

H510

Form Factor

M-ATX

Socket

Memory Type

DDR4

🔥 100% Genuine Products Guaranteed

ModxComputers is known for their best in class service and 100% genuine products with full authenticity.

👉 Cash on Delivery Available

Order products on Cash on Delivery upto Rs 2 Lakh. For more details kindly check details on the checkout page.

👉 EMI Available

EMI is available on selected Credit Cards, kindly check the offers on checkout page.

5,790

Out of stock

Out of stock

17 People watching this product now!

Description

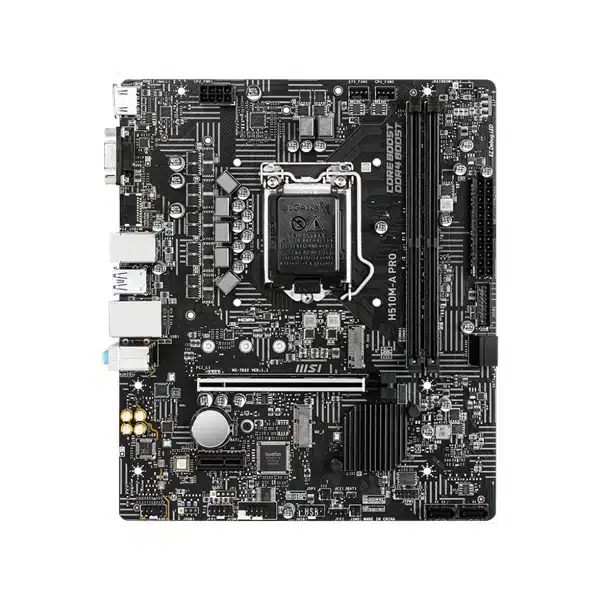

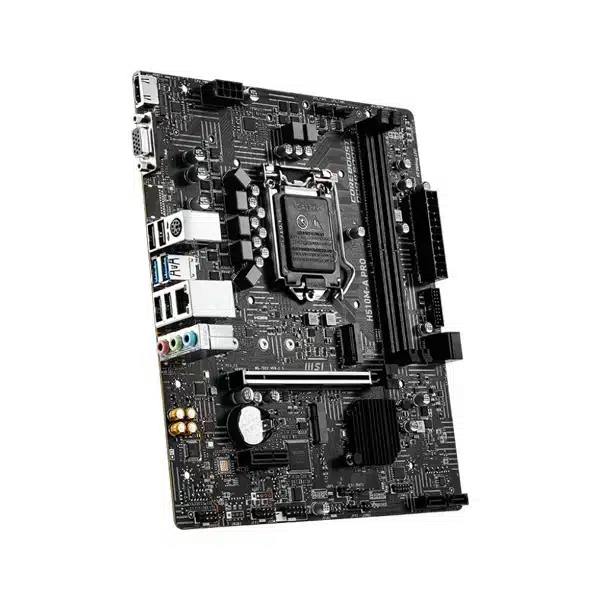

H510M-A PRO

  • Supports 10th Gen Intel® Coreâ„¢, 11th Gen Intel® Coreâ„¢, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 3200(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Lightning Fast Experience: PCIe 4.0
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications

PROCESSOR Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

  1.  Please go to www.intel.com for more compatibility information.
CHIPSET Intel® H510 Chipset
MEMORY
  • 2x DDR4 memory slots, support up to 64GB
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1.  Please refer to www.msi.com for more information on compatible memory.
EXPANSION SLOT
  • 1x PCIe x16 slot (From CPU)
    • Support up to PCIe 4.0 for 11th Gen Intel® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel® CPU
  • 1x PCIe 3.0 x1 slot (From PCH)
  • 1x M.2 slot with E key for WiFi module only(M2_2)
ONBOARD GRAPHICS
  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz
  1.  Available only on processors featuring integrated graphics.
  2.  Graphics specifications may vary depending on the CPU installed.
STORAGE
  • 4x SATA 6Gb/s ports (From H510 Chipset)
  • 1x M.2 slot (Key M)
    • M2_1 slot (From H510 Chipset)
      • Supports up to PCIe 3.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
  1.  SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
USB Intel® H510 Chipset

  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector)
AUDIO Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio
LAN 1x Intel® I219V 1Gbps LAN controller
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
BACK PANEL PORTS
  1. HDMI
  2. VGA
  3. Mouse / Keyboard
  4. LAN port
  5. Audio connector
  6. USB 2.0
  7. USB 3.2 Gen 1 5Gbps Type-A
  8. USB 2.0
DIMENSIONS
  • mATX Form Factor
  • 9.29 x 7.95 in. (23.6 cm x 20.2 cm)
MOUNTING 6 mounting holes
OPERATING SYSTEM Support for Windows® 10 64-bit
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
