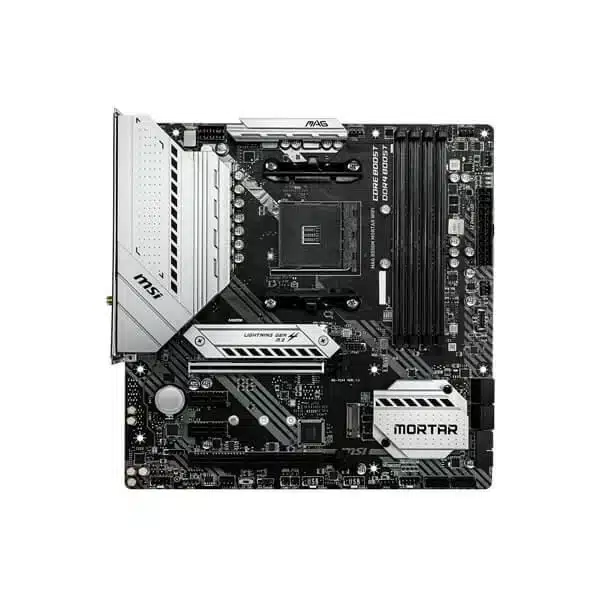

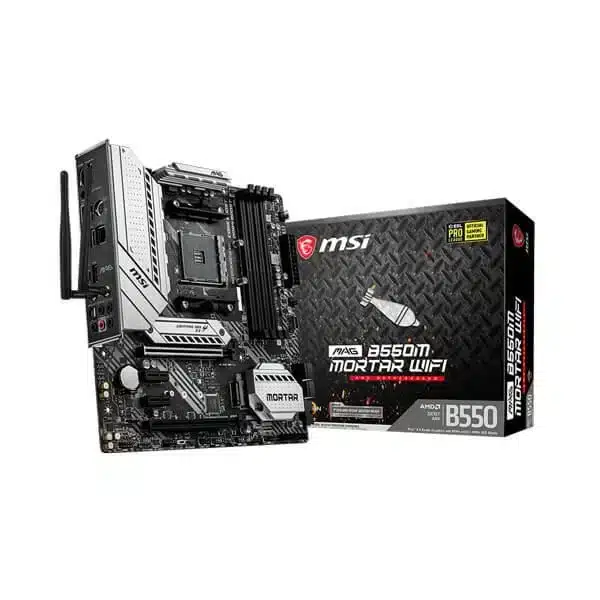

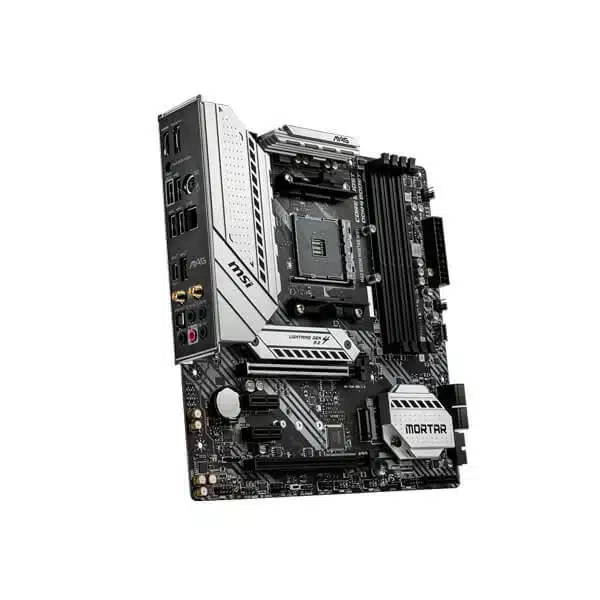

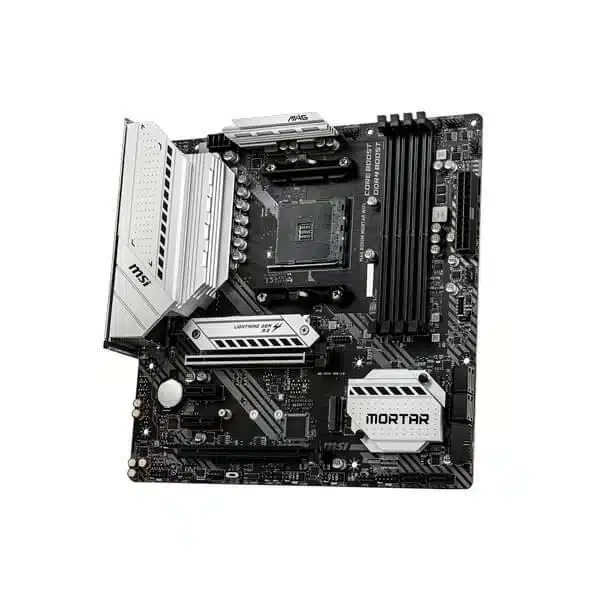

MSI MAG B550M Mortar WIFI

Brand:

Brand	MSI
Chipset	B550
Memory Type	DDR4
Socket	AM4
Form Factor	M-ATX

🔥 100% Genuine Products Guaranteed

ModxComputers is known for their best in class service and 100% genuine products with full authenticity.

👉 Cash on Delivery Available

Order products on Cash on Delivery upto Rs 2 Lakh. For more details kindly check details on the checkout page.

👉 EMI Available

EMI is available on selected Credit Cards, kindly check the offers on checkout page.

₹15,709

Out of stock

Compare

Add to wishlist

14 People watching this product now!

Description

Important Notice :

BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website

Features

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Supports DDR4 Memory, up to 4400+(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
Enhanced Power Design: 8+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire™

Specifications

Processor	Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset	AMD B550 Chipset
Memory	4x DDR4 memory slots, support up to 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Expansion Slot	1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2x PCIe 3.0 x1 slots The supported specification depends on installed processor. PCI_E4 will be unavailable when an M.2 SSD is installed in the M2_2 slot.
Multi-GPU	Supports 2-Way AMD CrossFire™ Technology
Onboard Graphics	1x HDMI port, supports a maximum resolution of 4096×2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz Maximum shared memory of 2048 MB Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage	AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0×4 Supports 2242/ 2260/ 2280 storage devices The supported specification depends on installed processor.
RAID	AMD B550 Chipset Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio	Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® RTL8125B 2.5Gbps LAN controller
Wireless LAN & Bluetooth®	Intel® Wi-Fi 6 AX200 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.1
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper

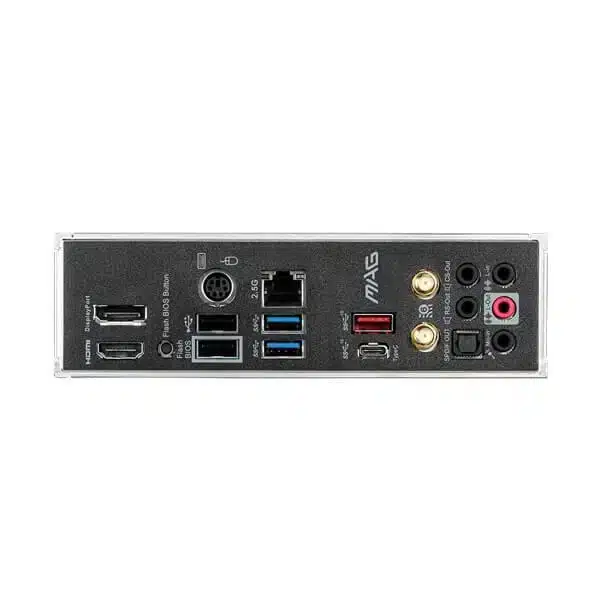

Back panel ports	DisplayPort PS/2 Combo Port 2.5G LAN Port USB 3.2 Gen 2 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors HDMI Port Flash BIOS Button USB 2.0 port USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) Optical S/PDIF OUT
Dimensions	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Mounting	8 mounting holes
Operating System	Support for Windows® 10 64-bit
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
