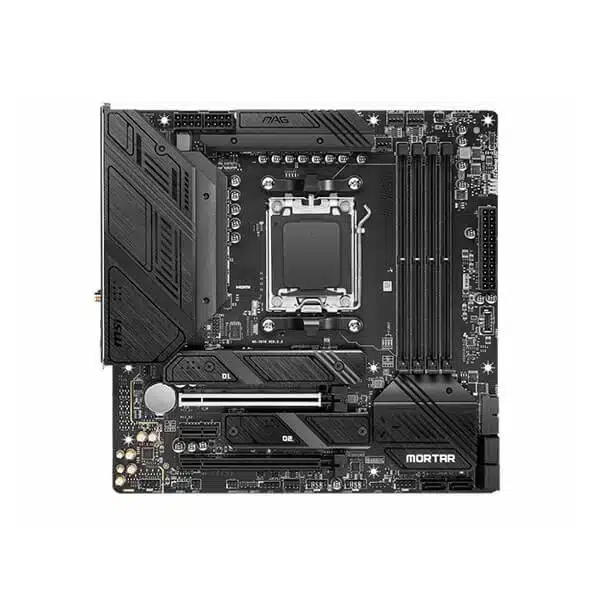

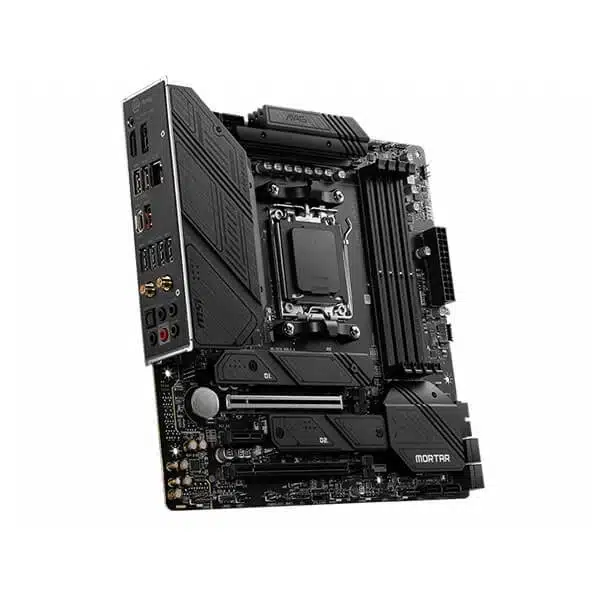

MSI MAG B650M Mortar WIFI (DDR5)

Brand: MSI
SKU: MAG-B650M-MORTAR-WIFI
Brand

Memory Type

DDR5

Socket

Chipset

B650

Form Factor

M-ATX

🔥 100% Genuine Products Guaranteed

ModxComputers is known for their best in class service and 100% genuine products with full authenticity.

👉 Cash on Delivery Available

Order this product on Cash on Delivery. For more details kindly check details on the checkout page.

22,090

17 People watching this product now!

Description

MAG B650M MORTAR WIFI

  • Supports AMD Ryzen™ 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 6400+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specification

Chipset AMD B650
CPU SUPPORT
  • Supports AMD Ryzen 7000 Series Desktop Processors
  • Socket AM5
Memory
  • 4x DDR5
  • Maximum Memory Capacity 128GB Memory Support DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Onboard Graphics
  • 1x HDMI
  • 1x DisplayPort Support HDMITM 2.1 with HDR
  • maximum resolution of 4K 60Hz
  • Support DP 1.4
  • maximum resolution of 8K 60Hz
EXPANSION SLOT
  • 2x PCI-E x16 slot
  • Support x16/ x4
  • 1x PCI-E x1 slot
  • PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage
  • 2x M.2 slot
  • M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function.
USB
  • 4x USB 2.0 (Front)
  • 4x USB 3.2 Gen1 Type A (Rear)
  • 2x USB 3.2 Gen1 Type A (Front)
  • 3x USB 3.2 Gen2 Type A (Rear)
  • 1x USB 3.2 Gen2 Type C (Front)
  • 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek RTL8125B 2.5Gbps LAN
WIRELESS / BLUETOOTH
  • AMD Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax

  • Supports Bluetooth® 5.2
Audio
  • Realtek® ALC4080 Codec
  • 7.1-Channel High Performance Audio
  • Supports S/PDIF output
  • Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x CPU Fan
  • 1x Pump Fan
  • 3x System Fan
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 2x Addressable V2 RGB LED connector (JARGB_V2)
  • 2x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0
  • 2x USB 3.2 Gen1 Type A
  • 1x USB 3.2 Gen2 Type C
LED FEATURE 4x EZ Debug LED
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
UPCB Dimension M-ATX
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
