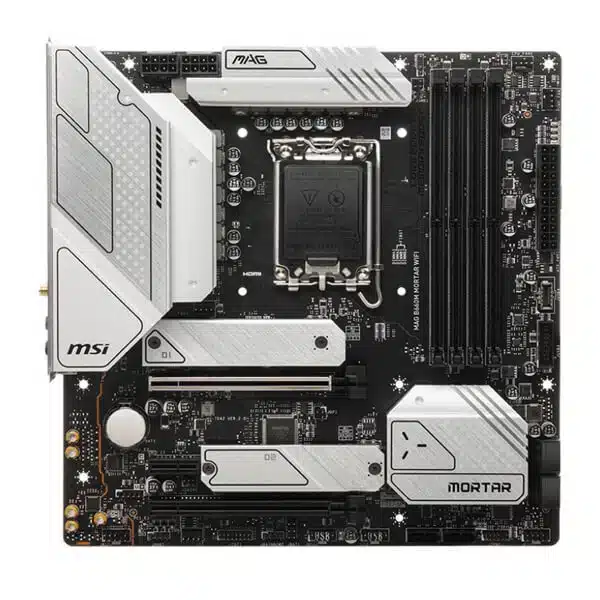

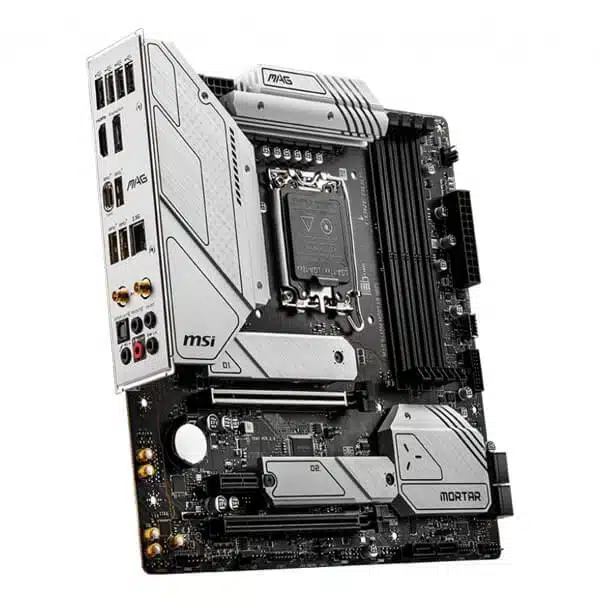

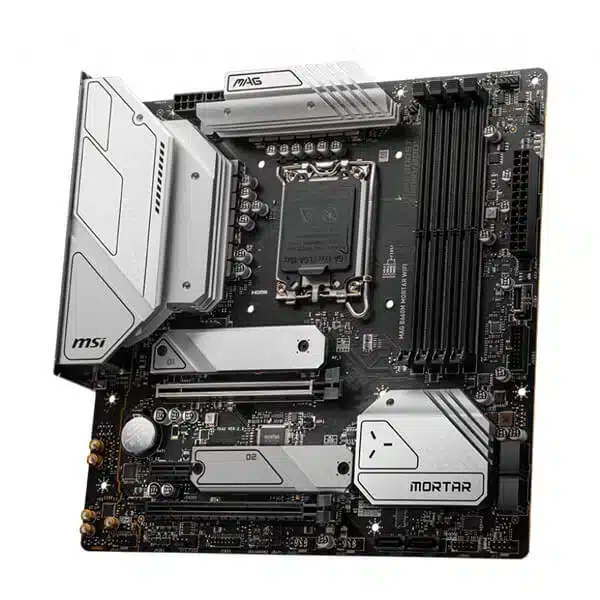

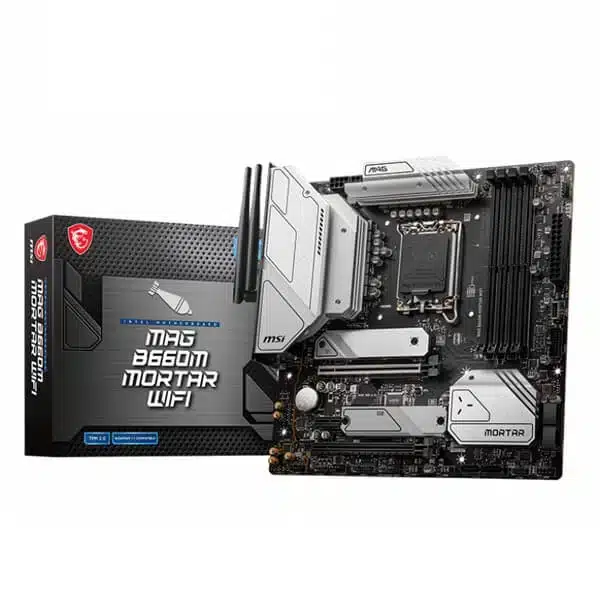

MSI MAG B660M Mortar WIFI (DDR5)

20,960

SKU: MAG-B660M-MORTAR-WIFI-DDR5 Categories: , ,

Description

Features:

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6200+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

Specification:

PROCESSOR
  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
  • Processor socket LGA1700
CHIPSET Intel® B660 Chipset
MEMORY
  • 4x DDR5 memory slots, support up to 128GB
  • Supports 1R 4800 MHz (by JEDEC & POR)
  • Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6200+ MHz
    • 1DPC 2R Max speed up to 5200+ MHz
    • 2DPC 1R Max speed up to 4000+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Intel® XMP 3.0 OC
  • Supports Dual Controller Dual-Channel mode
  • Supports non-ECC, un-buffered memory
EXPANSION SLOT
  • 2x PCIe x16 slots
    • PCI_E1 slot (From CPU)
      • Supports PCIe 4.0 x16
    • PCI_E3 slot (From B660 Chipset)
      • Supports PCIe 3.0 x4
  • 1x PCIe 3.0 x1 slot
MULTI-GPU Supports AMD® CrossFire™ Technology
ONBOARD GRAPHICS
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
STORAGE
  • 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)
  • 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)
  • 2x M.2 slots (Key M)
    • M2_1 slot (From CPU)
      • Supports PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot (From B660 Chipset)
      • Supports PCIe 4.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
      • Supports Intel® Optane™ Memory
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB

Intel® B660 Chipset

  • 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel
  • 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector
  • 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
  • 4x USB 2.0 ports on the back panel

USB Hub-GL3590

  • 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

USB Hub-GL850G

  • 4x USB 2.0 ports available through internal connectors
AUDIO

Realtek® ALC1200 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN 1x Realtek® 8125BG 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH®

Intel® Wi-Fi 6E

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz
    (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2, FIPS, FISMA
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C connector
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 2x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x TBT connector (supports RTD3)
  • 1x Tuning Controller connector
LED FEATURE
  • 4x EZ Debug LED
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors

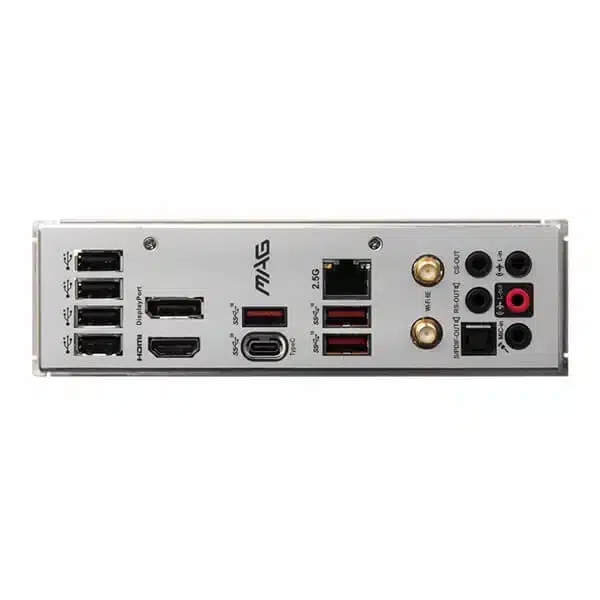

BACK PANEL PORTS
  • USB 2.0 Port
  • DisplayPort 1.4
  • USB 3.2 Gen 2 10Gbps Type-A
  • 2.5G LAN Port
  • Wi-Fi / Bluetooth Antenna
  • HD Audio Connectors
  • HDMI 2.1 Port
  • USB 3.2 Gen 2×2 20Gbps Type-C
  • Optical S/PDIF OUT
DIMENSIONS
  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Warranty 3 Years
