MAG FORGE 320R AIRFLOW PC Case
Beyond The Power
The MAG FORGE 320R AIRFLOW has great compatibility in the budget mid-tower chassis market. It is compatible with the lastest large RTX 40 series GPUs and 360 mm radiators. The case offers great airflow possibilities because of the mesh front panel and space for up to 11 system fans.
Amazing Compatibility
This mid-tower PC case is designed with great compatibility for the latest RTX 40 series GPUs and 360 mm radiators for entry level system builders. The MAG FORGE 320R AIRFLOW also supports up to 11 x 120 mm fans for maximum cooling.
Optimized Airflow
The MAG FORGE 320R AIRFLOW is well equipped mesh to its front and side panel to provide the most effective airflow for system cooling. It comes with 4 x 120 mm ARGB fans pre-installed in front and rear panel.

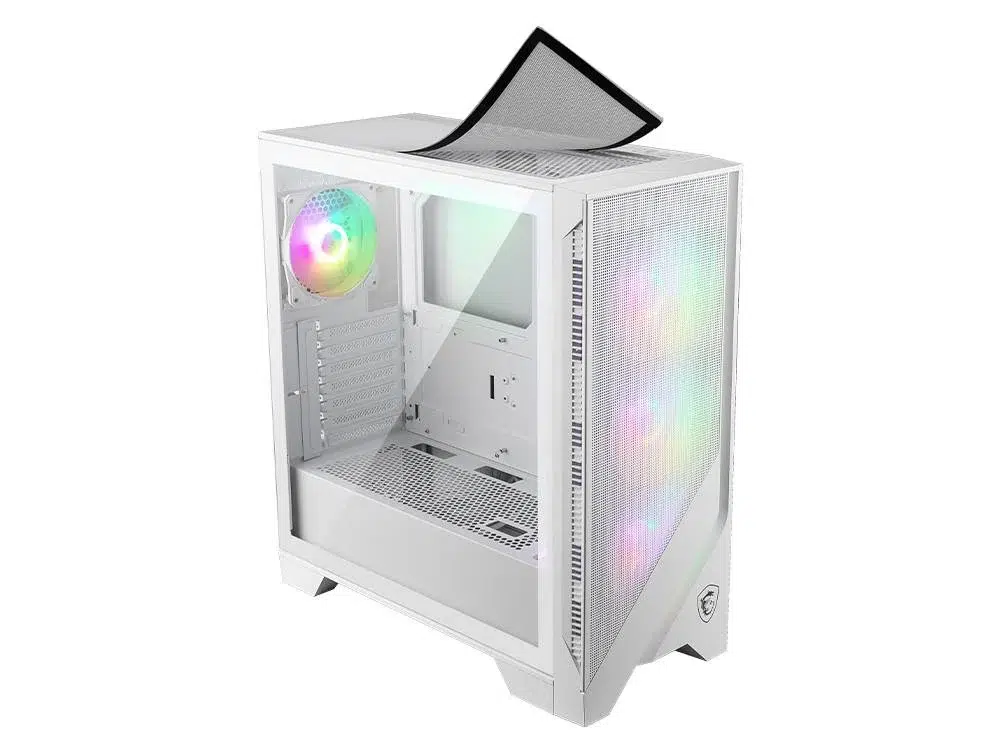

Magnetic Dust Filter
Magnetic dust filters sit on the MAG FORGE 320R AIRFLOW’s top and side vents, keeping dust from falling inside while being easy to remove for cleaning purposes.

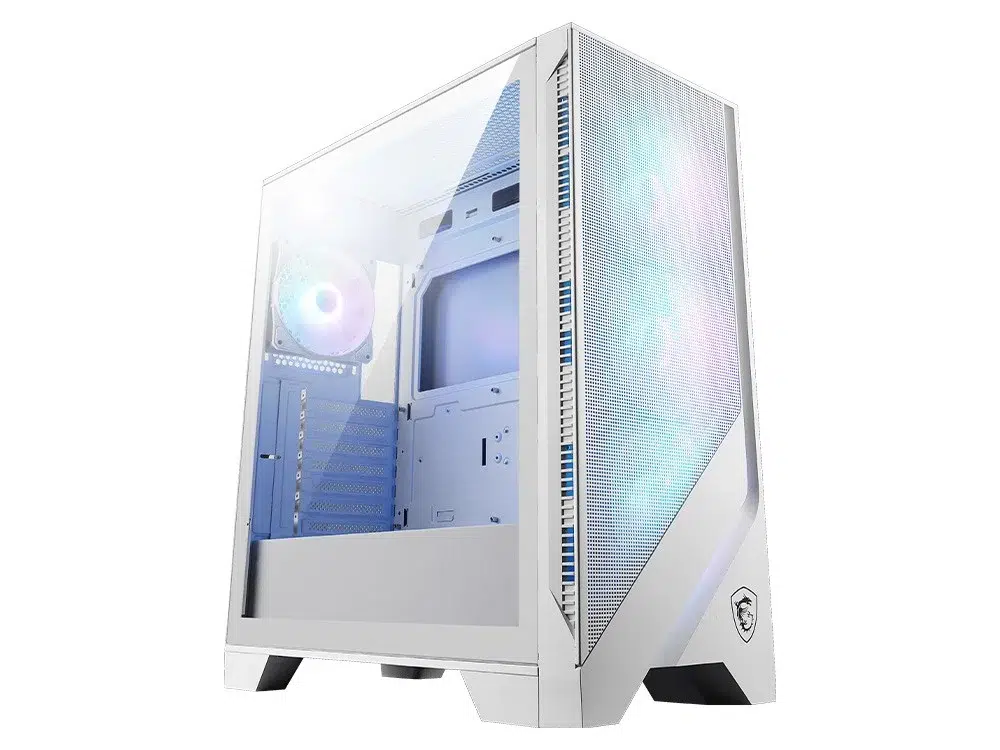

Tempered Glass Window
The MAG FORGE 320R AIRFLOW reveals your gaming components with a 4 mm tempered glass window that is durable and provides an excellent view of your system.
Extensive Compatibility
Motherboard support: ATX, Micro-ATX and Mini-ITX
Component clearances:
1. CPU Cooler height: 160 mm
2. GPU Length: 390 mm
3. PSU Length: up to 200 mm
4. Storage bays: 1 x 2.5″ SSD dock & a removeable 2 x 2.5/3.5″ HDD cage
Up to 11 Fans Supported
The chassis can house up to 11 x 120 mm case fans on its front, top, side, rear and PSU Shroud for maximized cooling.
1-to-6 ARGB Control Board
The pre-installed 1-to-6 ARGB control board supports extra ARGB fan connections to the case. It supports intuitive control & lighting profiles through the LED switch button, and is also compatible with the Mystic Light utility via MSI motherboards.
Front I/O Panel
1. Power Button
2. LED Switch Button
3. Audio out / Mic in
4. 2 x USB 3.2 Gen 1 Type-A (5Gbps)
SPECIFICATIONS | |
PRODUCT NAME | MAG FORGE 320R AIRFLOW WHITE |
CASE FORM FACTOR | Mid Tower |
MOTHERBOARD FORM FACTOR SUPPORT | ATX / Micro-ATX / Mini-ITX |
I/O PORTS | 2 x USB 3.2 Gen 1 Type-A 1 x Audio-out 1 x Mic-in 1 x LED Switch |
DRIVE MOUNT SUPPORT | 1 x 2.5″ 2 x 2.5″ / 3.5″ |
EXPANSION SLOTS | 7 |
MAXIMUM GPU LENGTH | 390 mm / 15.35 inches |
MAXIMUM CPU COOLER HEIGHT | 160 mm / 6.29 inches |
POWER SUPPLY SUPPORT | ATX |
MAXIMUM PSU LENGTH | 200 mm / 7.87 inches (without 2.5″/3.5″ HDD tray installation) |
FAN SIZE SUPPORT | Front: 3 x 120 mm / 2 x 140 mm Top: 3 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm Side: 2 x 120 mm PSU Shroud: 2 x 120 mm |
PRE-INSTALLED FAN SIZE | Front: 3 x 120 mm Rear: 1 x 120 mm |
PRE-INSTALLED FAN TYPE | Front: 3 x ARGB Fan Rear: 1 x ARGB Fan |
RADIATOR SIZE SUPPORT | Front: 120 / 140 / 240 mm Top: 120 / 240 / 280 / 360 mm Rear: 120 mm |
DIMENSIONS (DXWXH) | 472.5 x 210 x 498 mm / 18.60 x 8.26 x 19.60 inches |
NET WEIGHT | 7.05 kg / 15.54lbs |
GROSS WEIGHT | 8.35 kg / 18.41lbs |
CONNECTION | Power Button LED Switch Button Audio Out Mic In 2 x USB 3.2 Gen 1 Type-A |
