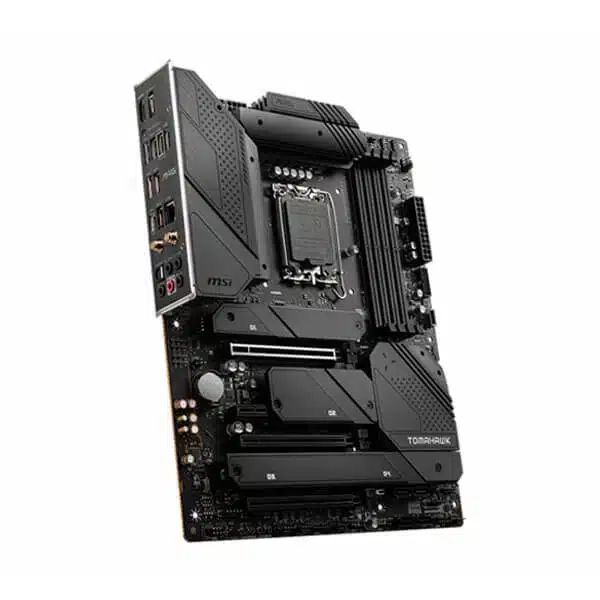

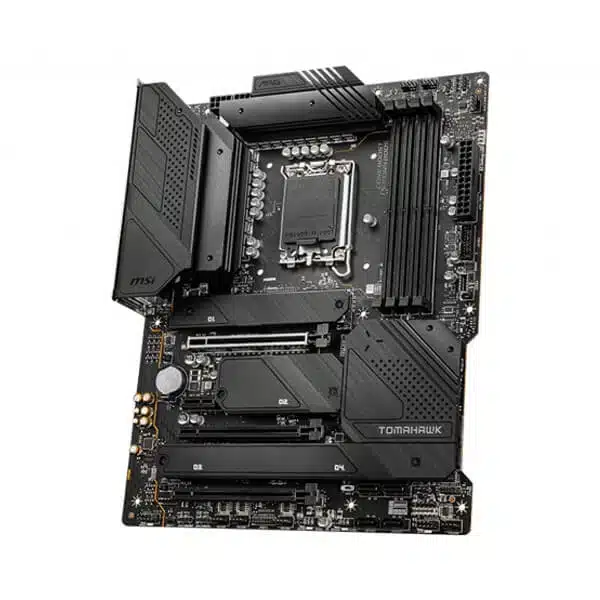

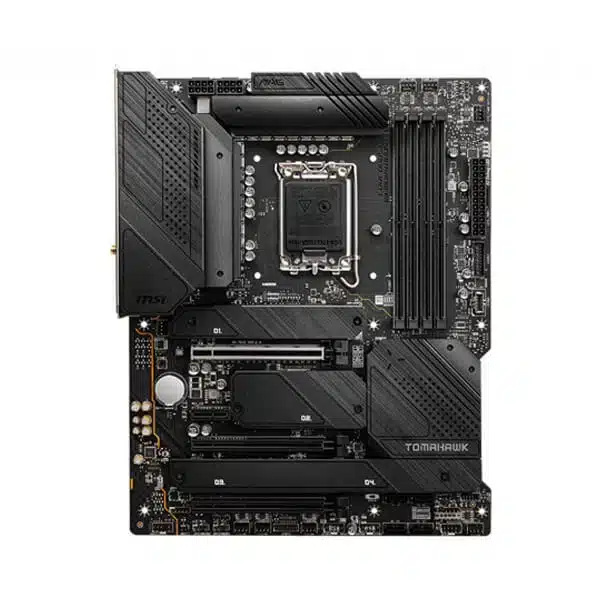

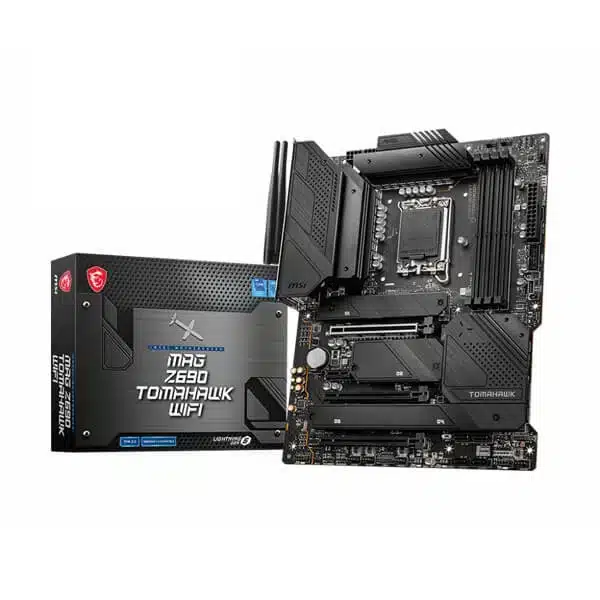

MSI MAG Z690 Tomahawk WIFI (DDR5)

28,690

SKU: MAG-Z690-TOMAHAWK-WIFI Categories: , ,

Description

MAG Z690 TOMAHAWK WIFI

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6400(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

Specification
Processor Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1

Processor socket LGA1700

Chipset Intel® Z690 Chipset
Memory 4x DDR5 memory slots, supporting up to 128GB 1

Supports 1R 4800 MHz (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 6400+ MHz

1DPC 2R Max speed up to 5400+ MHz

2DPC 1R Max speed up to 4000+ MHz

2DPC 2R Max speed up to 4000+ MHz

Supports Intel® XMP 3.0 OC

Supports Dual Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

Onboard Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

Expansion Slots 3x PCIe x16 slots

PCI_E1 (From CPU)

Support up to PCIe 5.0 x16

PCI_E3 (From Z690 chipset)

Support up to PCIe 3.0 x4

PCI_E4 (From Z690 chipset)

Support up to PCIe 3.0 x1

1x PCIe 3.0 x1 slot (From Z690 chipset)

Multi-GPU Support Supports AMD® CrossFire™ Technology
Storage 6x SATA 6Gb/s ports (From Z690 chipset)

4x M.2 slots (Key M)

M2_1 slot (From CPU)

Supports up to PCIe 4.0 x4

Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_2 slot (From Z690 chipset)

Supports up to PCIe 4.0 x4

Supports 2242/ 2260/ 2280 storage devices

M2_3 slot (From Z690 chipset)

Supports up to PCIe 3.0 x4

Supports up to SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

M2_4 slot (From Z690 chipset)

Supports up to PCIe 4.0 x4

Supports up to SATA 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

Intel® Optane™ Memory Ready for M.2 slots from Z690 Chipset

Supports Intel® Smart Response Technology for Intel Core™ processors

RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB Intel® Z690 Chipset

1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel

4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel)

4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector)

1x USB 2.0 Type-A port on the back panel

Hub-GL850G

5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)

LAN 1x Intel® I225V 2.5Gbps LAN controller
Audio Realtek® ALC4080 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

WIFI & Bluetooth Intel® Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.2

Internal Connectors 1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

6x SATA 6Gb/s connectors

4x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x TPM module connector

1x Clear CMOS jumper

1x TBT connector (supports RTD3)

1x Tuning Controller connector

LED Feature 1x EZ LED Control switch

1x 4-pin RGB LED connectors

3x 3-pin RAINBOW LED connectors

4x EZ Debug LED

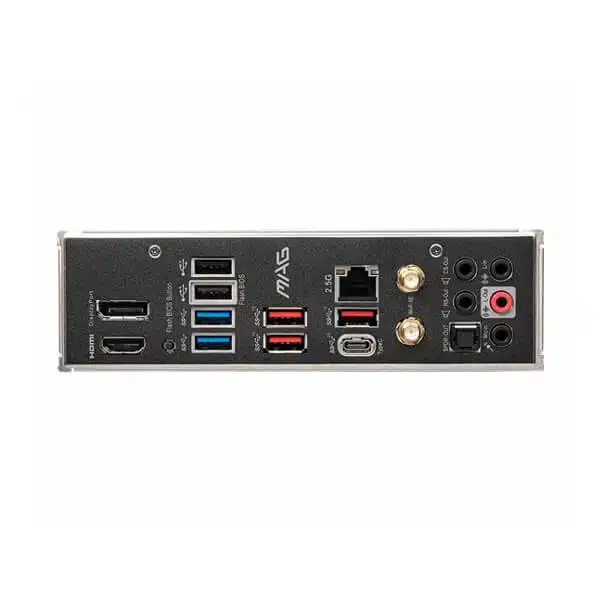

Back Panel Ports DisplayPort 1.4

USB 2.0 Port

USB 3.2 Gen 2 10Gbps Type-A

2.5G LAN Port

Wi-Fi / Bluetooth Antenna

HD Audio Connectors

HDMI 2.1 Port

Flash BIOS Button

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 2 10Gbps Type-A

USB 3.2 Gen 2×2 20Gbps Type-C

Optical S/PDIF OUT

Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
Dimensions ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Warranty 3 Years
Note* Price, feature and specifications are subject to change without notice.
