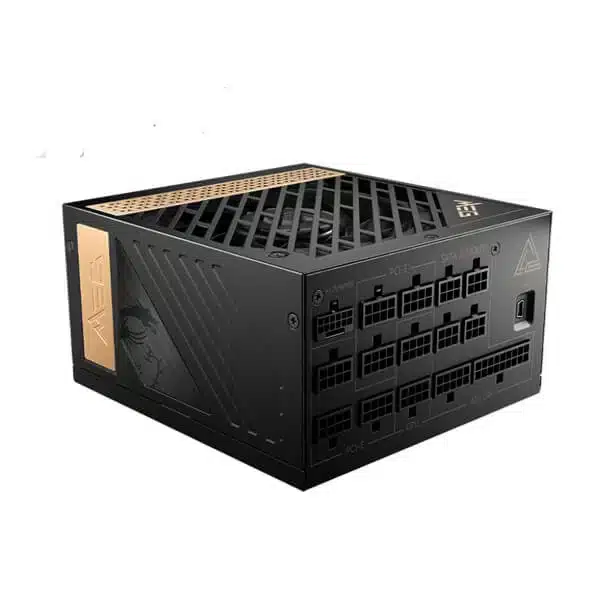

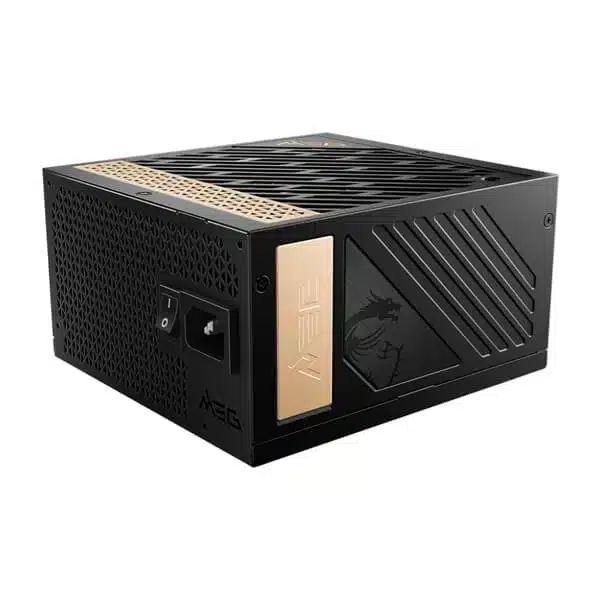

MSI MEG Ai1300P is a 1300 watt 80 Plus Gold Fully Modular SMPS. It has active PFC Design and also Supports Nvidia® GeForce RTXTM 40 Series graphics cards.
- Supports Nvidia® GeForce RTXTM 40 Series graphics cards
- ATX 3.0 fully supported
- PCIe 5.0 ready, with native 16 pin connector
- Software sync with MSI center
- Full modular design
- Sleeve cables
- 80 PLUS Platinum certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- LLC Half Bridge Topology with DC-DC module design
ATX 3.0 compatible
It has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
level up your GAME
With native 16 PIN PCIe connector this power supply is ready for Nvidia® GeForce RTX® 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.
80 PLUS platinum CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Platinum certification promises lower energy consumption and higher efficiency.
GPU SUPPORT FOR ALL
The power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MEG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
Compared with the general platinum power supply on the market. The power supply’s 160mm-long and 150mm-wide dimensions ensure a comfortable and easy fit in most PC cases, effectively providing more space for cable management and airflow to the rest of the system.
Flexible triple-layer sleeved cables are easy to bend and durable, providing easy cable routing and better durability. It also looks better depending on the preference of users.
|Efficiency Rating||80 PLUS Platinum (up to 92%)|
|Modular||Yes (fully modular)|

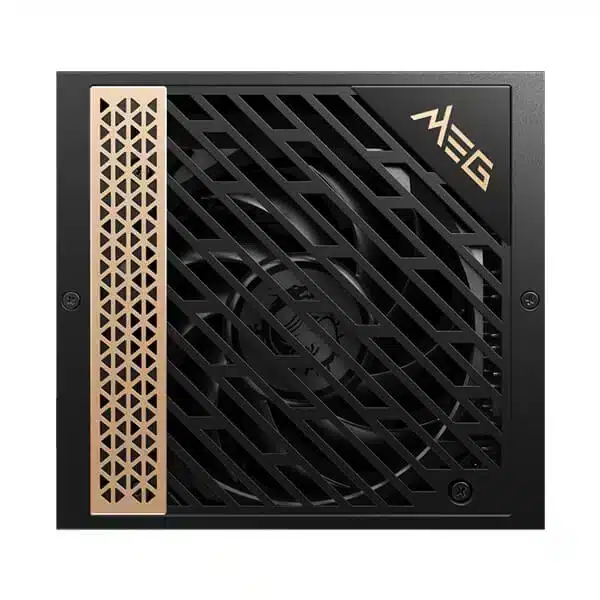

|Fan Size||120 mm|
|Fan Bearing||Hydro Dynamic Bearing|
|Dimensions (DxWxH)||160 x 150 x 86 mm|
|PFC Type||Active PFC|
|Input Voltage Range||100-240~|
|Power Excursion||2600W (*up to 200% of the PSU’s rated power for 100μs)|
|Input Frequency Range||50~60 Hz|
|Protection||OCP / OVP / OPP / OTP / SCP / UVP|

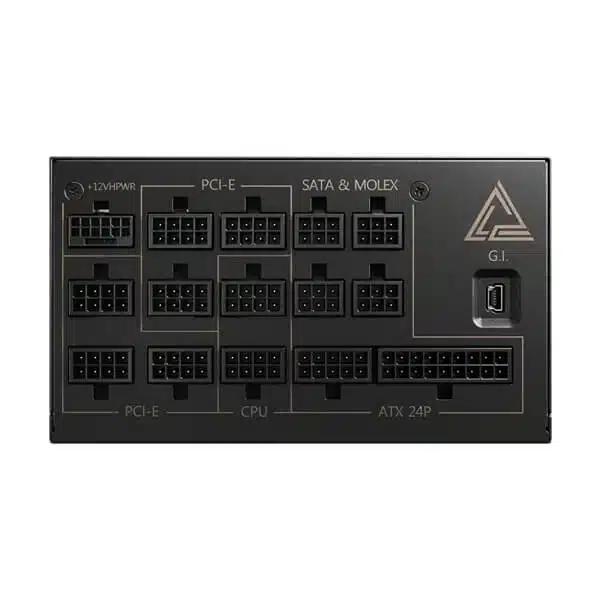

|ATX (24 pin)||1|
|EPS (8 pin)||1|
|EPS (4+4 pin)||1|
|PCI-E 5.0 (16 pin)||1 (650W)|
|PCI-E (6+2 pin)||8|
|SATA (15 pin)||16|
|MOLEX (4 pin)||4|
|FDD (4 pin)||1|
|Note||*** Features, Price, Specifications are subject to change without notice.|
