Features:
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4800+(OC) MHz
- Lightning Fast Experience: PCIe 4.0 slots, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN:Â Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Turbo USB 3.2 Gen 2: Powered by USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- High Quality PCB: 6-layer PCB made by 2oz thickened copper level material
- Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfireâ„¢
- Audio Boost: Reward your ears with studio grade sound quality
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market, a dedicated water pump PIN header gives you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
TEMPERATURE MANAGEMENT
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
OPTIMIZE NETWORK FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
LIGHTNING GEN 4 PCI-E.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for Z690 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
A HUGE STEP OF DDR PERFORMANCE.
CORE BOOST
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Specification:
Processor | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Processor socket LGA1700 |
Chipset | Intel® B660 Chipset |
Memory |
4x DDR4 memory slots, support up to 128GB
|
Expansion Slot |
|
Onboard Graphics |
|
Multi-GPU | Supports AMD® CrossFire™ Technology |
SATA Ports | 4x SATA 6Gb/s ports (From B660 chipset) |
M.2 SSD Slot |
|
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
Audio | Realtek® ALC897 Codec
|
LAN | 1x Intel® 8125BG 2.5SGbps LAN controller |
Power Connectors |
|
Internal USB Connectors |
|
Fan Connectors |
|
System Connectors |
|
Jumpers | 1x Clear CMOS jumper |
LED Feature |
|

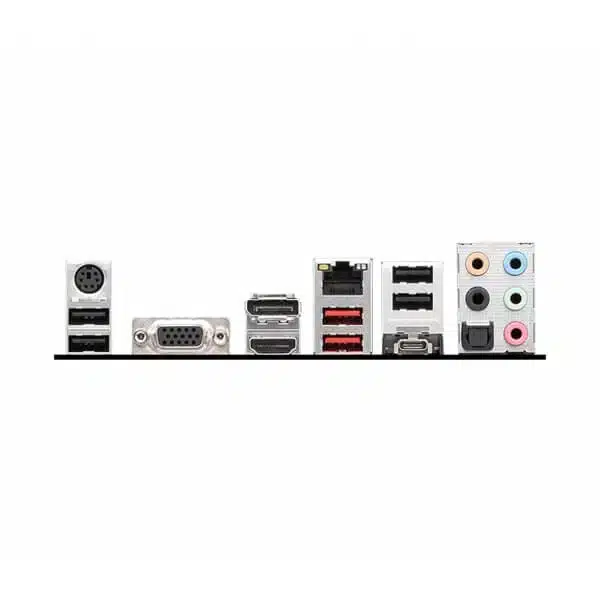

Back panel ports |
|
I/O Controller | NUVOTON NCT6687-R Controller Chip |
Hardware Monitor |
|
Dimensions |
|
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
