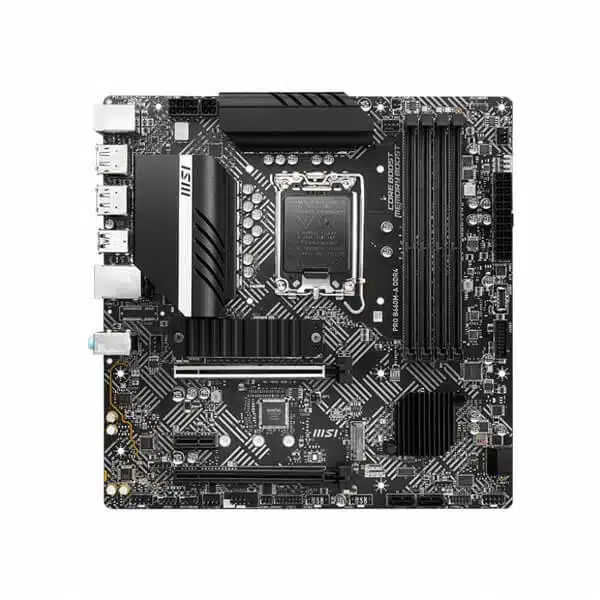

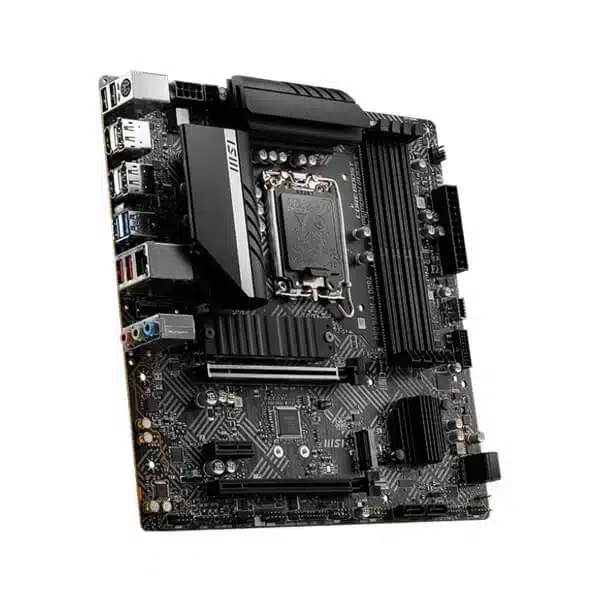

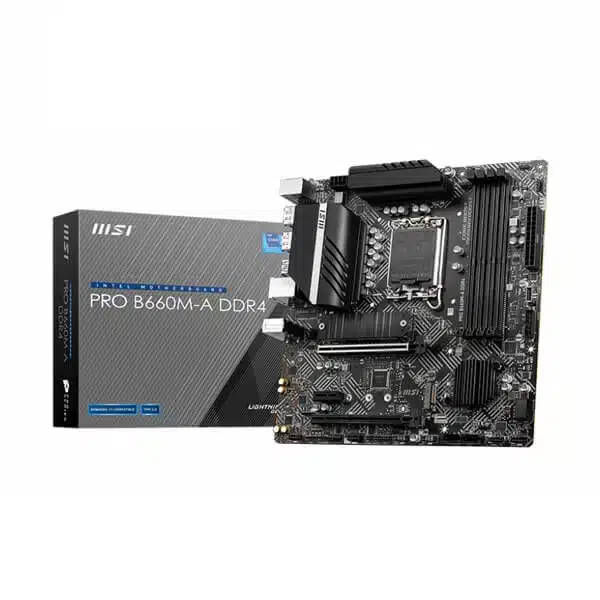

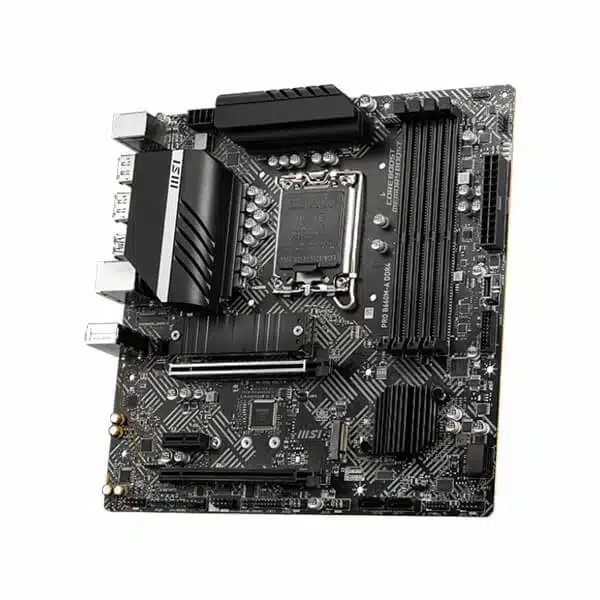

MSI PRO B660M-A DDR4

Brand: MSI
SKU: PRO-B660M-A-DDR4
Brand

Memory Type

DDR4

Socket

Chipset

B660

Form Factor

M-ATX

šŸ”„ 100% Genuine Products Guaranteed

ModxComputers is known for their best in class service and 100% genuine products with full authenticity.

šŸ‘‰ Cash on Delivery Available

Order this product on Cash on Delivery. For more details kindly check details on the checkout page.

13,650

Out of stock

Out of stock

18 People watching this product now!

Description

Features:

Supports 12th Gen IntelĀ® Coreā„¢, PentiumĀ® Gold and CeleronĀ® processors for LGA 1700 socket

Supports DDR4 Memory, up to 4800+(OC) MHz

Core Boost : With premium layout and digital power design to support more cores and provide better performance

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works

2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

Audio Boost: Reward your ears with studio grade sound quality

Specifications:

CPU Supports 12th Gen IntelĀ® Coreā„¢ Processors

Processor socket LGA1700

Chipset IntelĀ® B660 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB 1
  • Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
  • Max overclocking frequency:
  • 1DPC 1R Max speed up to 4800+ MHz
  • 1DPC 2R Max speed up to 4000+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 3600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memoryy
  • Supports IntelĀ® Extreme Memory Profile (XMP)
Expansion Slot
  • 2x PCIe x16 slots
  • PCI_E1 (From CPU)
  • Support PCIe 4.0 x16
  • PCI_E3 (From B660 chipset)
  • Support PCIe 3.0 x4
  • 1x PCIe 3.0 x1 slot (Fom B660 chipset)
Onboard Graphics
  • 2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 1 / 2
  • 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60 1 / 2

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.

Audio RealtekĀ® ALC897 Codec

  • 7.1-Channel High Definition Audio
Storage
  • 4x SATA 6Gb/s ports (From B660 chipset)
  • 2x M.2 slots (Key M)
  • M2_1 slot (From CPU)
  • Supports up to PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280 storage devices
  • M2_2 slot (From B660 chipset)
  • Supports up to PCIe 4.0 x4
  • Supports up to SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Supports IntelĀ® Optaneā„¢ Memory
  • Support IntelĀ® Smart Response Technology for Intel Coreā„¢ processors
  • SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
LAN
  • 1x RealtekĀ® RTL8125BG 2.5Gbps LAN controller
USB IntelĀ® B660 Chipset

  • 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
  • 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)

Asmedia ASM1074

  • 2X USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 2x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Clear CMOS jumper
  • 1x TBT connector (supports RTD3)
  • 1x Serial port
  • 1x Tuning Controller connector
LED Features 1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

4x EZ Debug LED

Back panel ports
  • Keyboard / Mouse
  • DisplayPort
  • USB 3.2 Gen 1 5Gbps Type-A
  • LAN port
  • Audio connector
  • USB 2.0
  • HDMI
  • USB 3.2 Gen 2 10Gbps Type-A
Dimensions
  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
