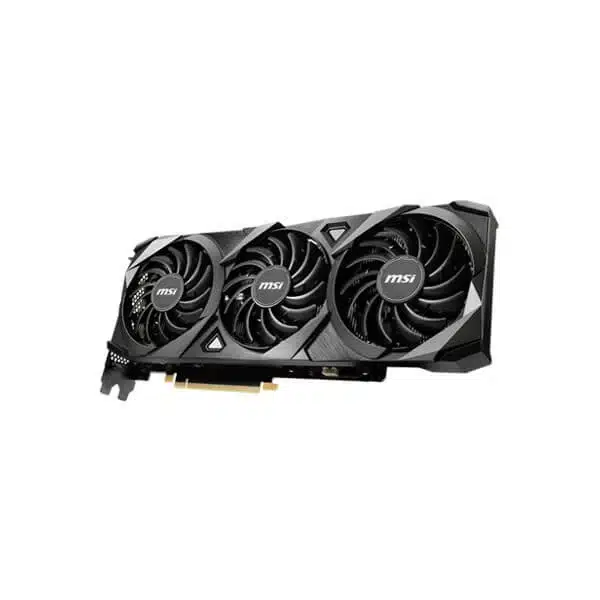

GeForce RTXâ„¢ 3070 VENTUS 3X PLUS 8G OC LHR
The GeForce RTX™ 3070 is powered by Ampere—NVIDIA’s 2nd gen RTX architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory, it gives you the power you need to rip through the most demanding games.
- This GeForce RTX 3070 graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.).
Core / Memory
- Boost Clock / Memory Speed
1755 MHz / 14 Gbps - 8GB GDDR6
- DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

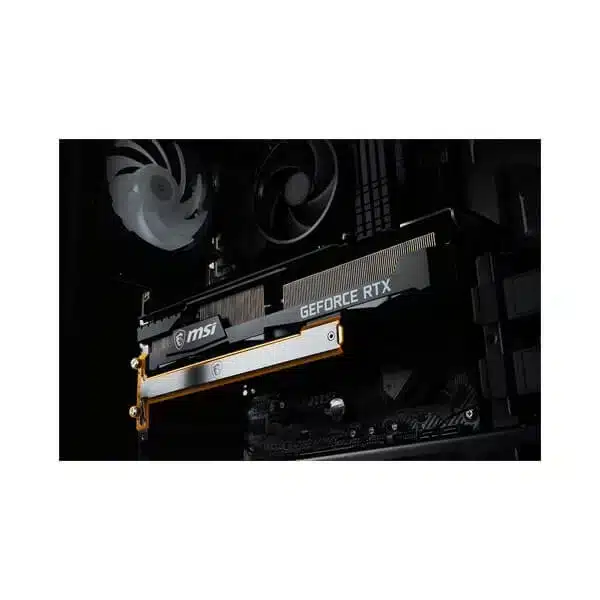

Metal backplate
- Premium metal backplate provides a nice visual finish to the card. It also strengthens the card and thanks to some cleverly place thermal pads even helps to keep the temperature low.
Core Pipe
- Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Triple Fan Thermal Design
- TORX Fan 3.0:Â The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
- Zero Frozr:Â Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
- Thermal Padding:Â An abundance of thermal pads use any chance for additional heat transfer directly from the components.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
MODEL NAME | GeForce RTXâ„¢ 3070 VENTUS 3X PLUS 8G OC LHR |
GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 3070 |
INTERFACE | PCI Express® Gen 4 |
CORE CLOCKS | 1755 MHz |
CUDA® CORES | 5888 Units |
MEMORY SPEED | 14 Gbps |
MEMORY | 8GB GDDR6 |
MEMORY BUS | 256-bit |
OUTPUT | DisplayPort x 3 (v1.4a) |
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) | |
HDCP SUPPORT | Y |
POWER CONSUMPTION | 220 W |
POWER CONNECTORS | 8-pin x 2 |
RECOMMENDED PSU | 650 W |
CARD DIMENSION (MM) | 305 x 121 x 52 mm |
WEIGHT (CARD / PACKAGE) | 992g / 1587g |
DIRECTX VERSION SUPPORT | 12 API |
OPENGL VERSION SUPPORT | 4.6 |
MAXIMUM DISPLAYS | 4 |
VR READY | Y |
G-SYNC® TECHNOLOGY | Y |
ADAPTIVE VERTICAL SYNC | Y |
DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
