Description
Features
Radeon™ RX 6600 XT MECH 2X 8G OC
Gear up for incredible 1080p gaming performance. The MSI Radeon™ RX 6600 XT graphics cards, featuring the breakthrough AMD RDNA™ 2 architecture. Engineered to deliver an incredible 1080p gaming experience, the AMD Radeon™ RX 6600 XT powers the next generation of gaming with vivid visuals and elevated experiences.
Boost Clock / Memory Speed
- Up to 2602 MHz / 16 Gbps
- 8GB GDDR6

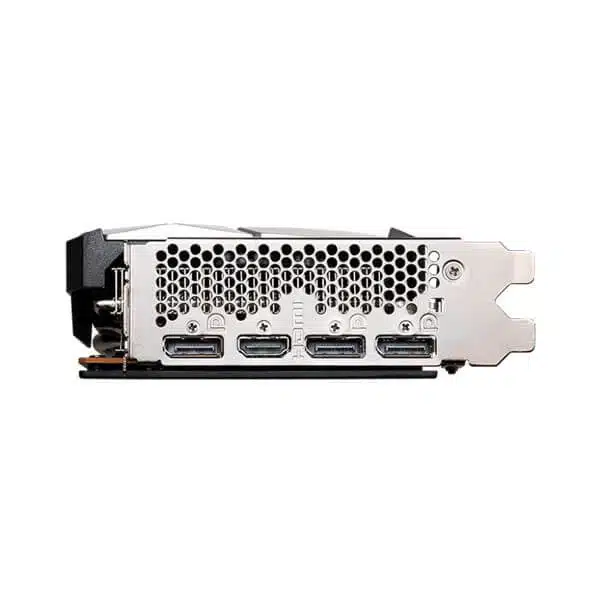

- DisplayPort x 3 (v1.4)
HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1)

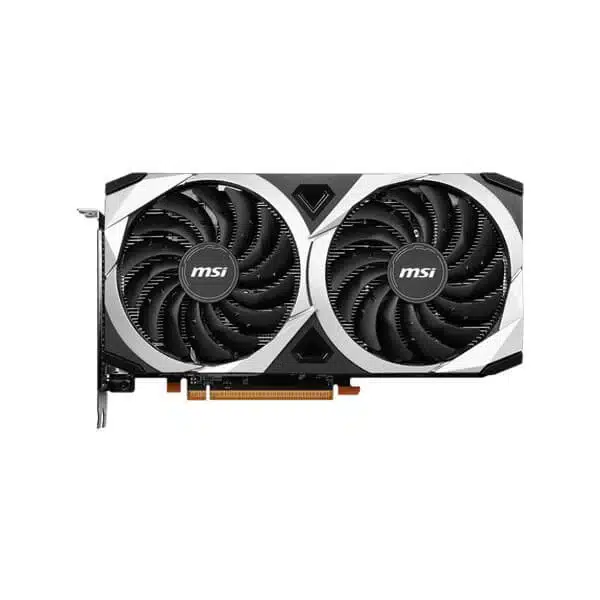

Dual Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Afterburner Overclocking Utility
- Supports multi-GPU setups.
- OC Scanner: An automated function finds the highest stable overclock settings.
- On Screen Display: Provides real-time information of your system’s performance.
- Predator: In-game video recording.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
| Specification | |
| Model Name | Radeon™ RX 6600 XT MECH 2X 8G OC |
| Graphics Processing Unit | AMD Radeon™ RX 6600 XT |
| Interface | PCI Express® 4.0 x8 |
| Cores | 2048 Units |
| Core Clocks | Boost: Up to 2602 MHz / Game: Up to 2413 MHz |
| Memory Speed | 16 Gbps |
| Memory | 8GB GDDR6 |
| Memory Bus | 128-bit |
| Output | DisplayPort x 3 (v1.4) / HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) |
| HDCP Support | Y |
| Power Consumption | 160 W |
| Power Connectors | 8-pin x 1 |
| Recommended PSU | 500 W or greater |
| Card Dimension (Mm) | 235 x 125 x 46 mm |
| Weight (Card / Package) | 721 g / 1188 g |
| DirectX Version Support | 12 Ultimate |
| OpenGl Version Support | 4.6 |
| Multi-GPU Technology | Y |
| Afterburner OC | Y |
| Maximum Displays | 4 |
| VR Ready | Y |
| Digital Maximum Resolution | 7680 x 4320 |
| Warranty | 3 years |
| Note* | Price, feature and specifications are subject to change without notice |
