NZXT H3 Flow Micro-ATX Mid Tower (White)
Brand:
| Brand |
|---|
🔥 100% Genuine Products Guaranteed
ModxComputers is known for their best in class service and 100% genuine products with full authenticity.
👉 Cash on Delivery Available
Order products on Cash on Delivery upto Rs 2 Lakh. For more details kindly check details on the checkout page.
👉 EMI Available
EMI is available on selected Credit Cards, kindly check the offers on checkout page.
0
People watching this product now!
Description
Overview
The H3 Flow micro-ATX case combines a space-efficient design with high-performance capability. Designed to support full-sized components, it features ultra-fine mesh panels and a ventilated PSU shroud to maintain consistent, optimized airflow throughout your build.

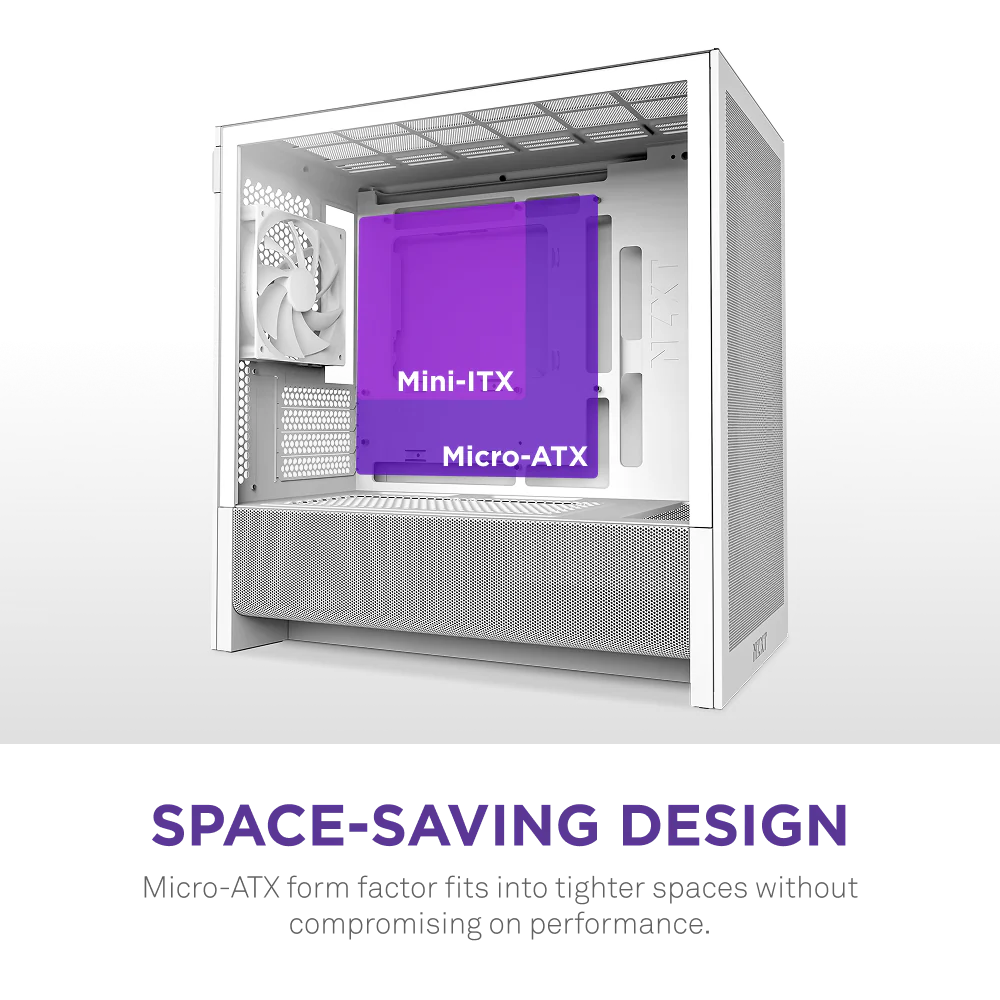

- Space-Saving Size: A space-efficient micro-ATX chassis that accommodates high-performance components without compromise.
- High-Airflow Design: Ultra-fine steel mesh panels and a ventilated PSU shroud maximize airflow while effectively filtering out dust.

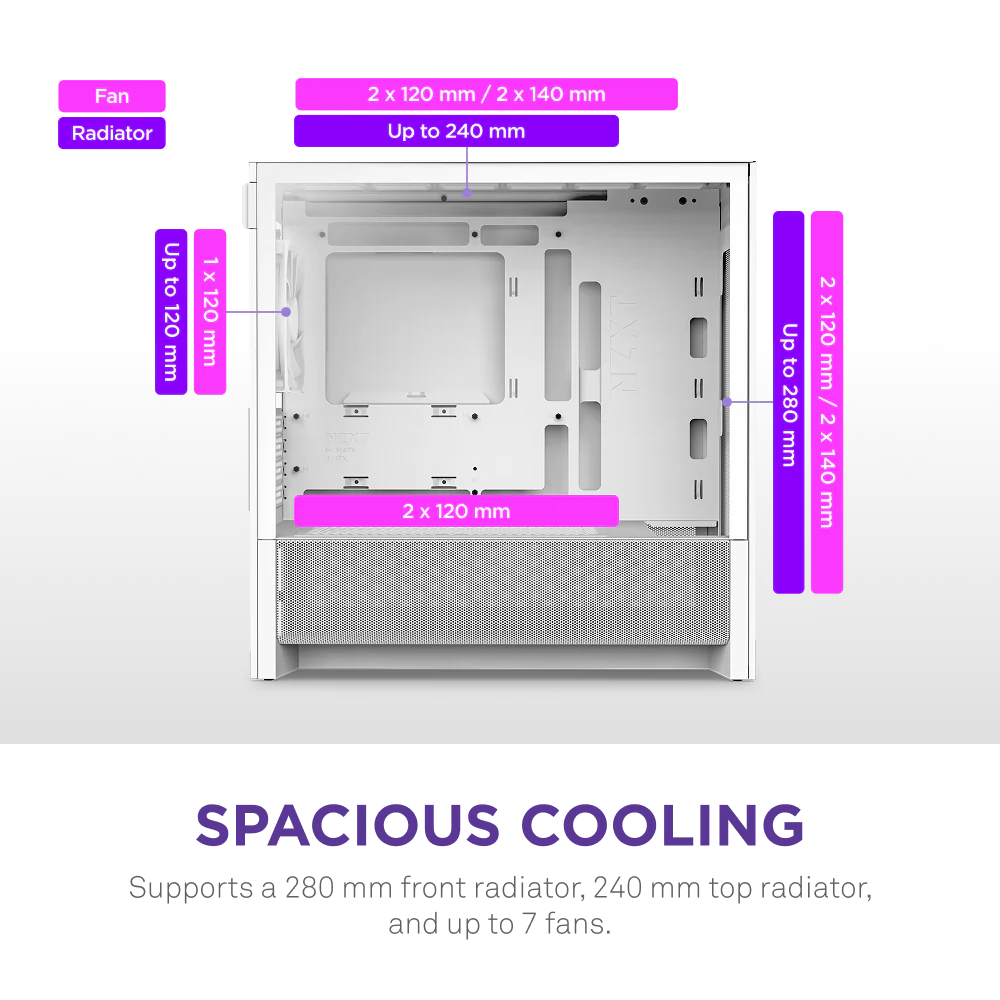

- Extensive Cooling Support: Supports up to a 280 mm radiator in the front, a 240 mm radiator on top, and up to seven fans for powerful, customizable cooling performance.

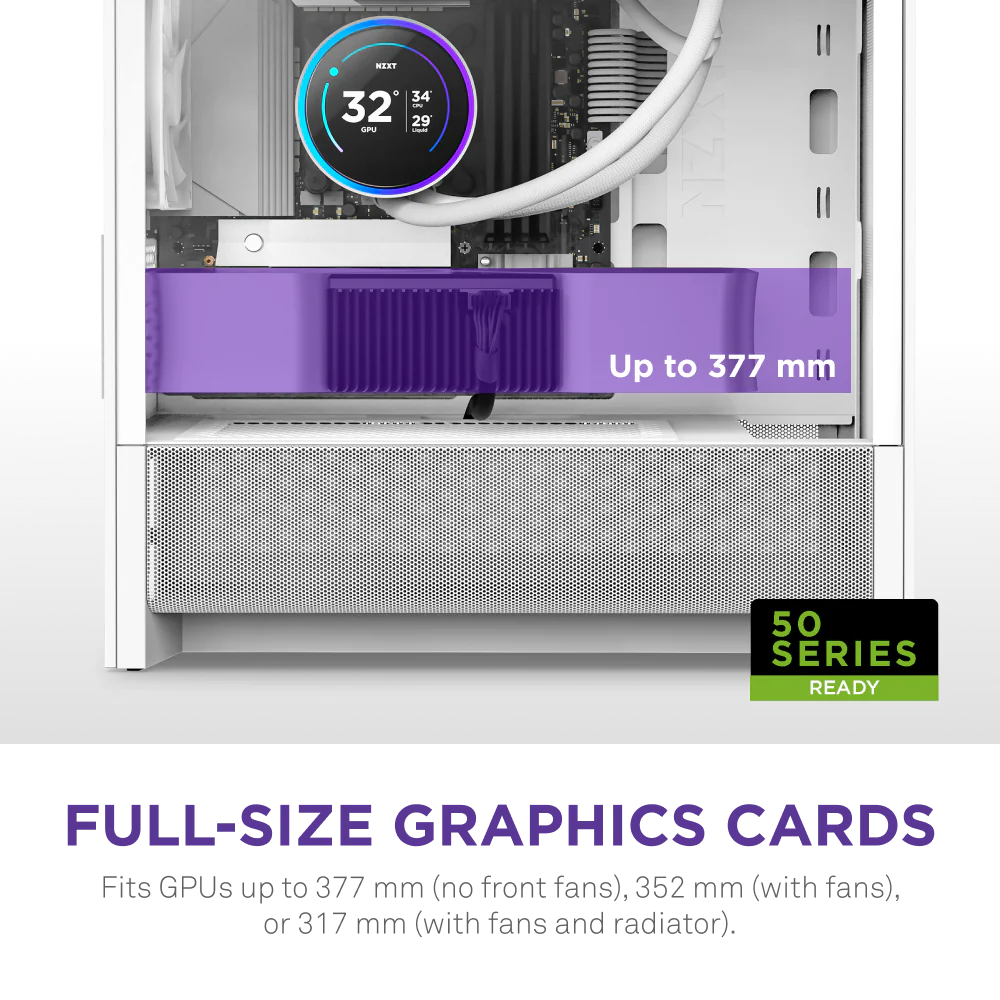

- Full-Size GPU Support: Fits graphics cards up to 377 mm (without front fans), 352 mm (with front fans), or 317 mm (with front radiator and fans installed).
- Pre-Installed Rear Fan: Includes one F120Q (CV) fan at the rear to provide efficient exhaust airflow straight out of the box. CV = Case Version (3-pin DC)
- Simplified Cable Management: Integrated cable channels and multiple tie-down points make it easy to route and organize cables for a clean, organized build.
- Back-Connect Motherboard Compatible: Ready for rear-connector motherboards like ASUS BTF and MSI Project Zero, enabling a clean, cable-free aesthetic.
- Tool-Free Access: Removable top, front, and side panels allow for easy upgrades and cleaning—no tools required.
Specifications:

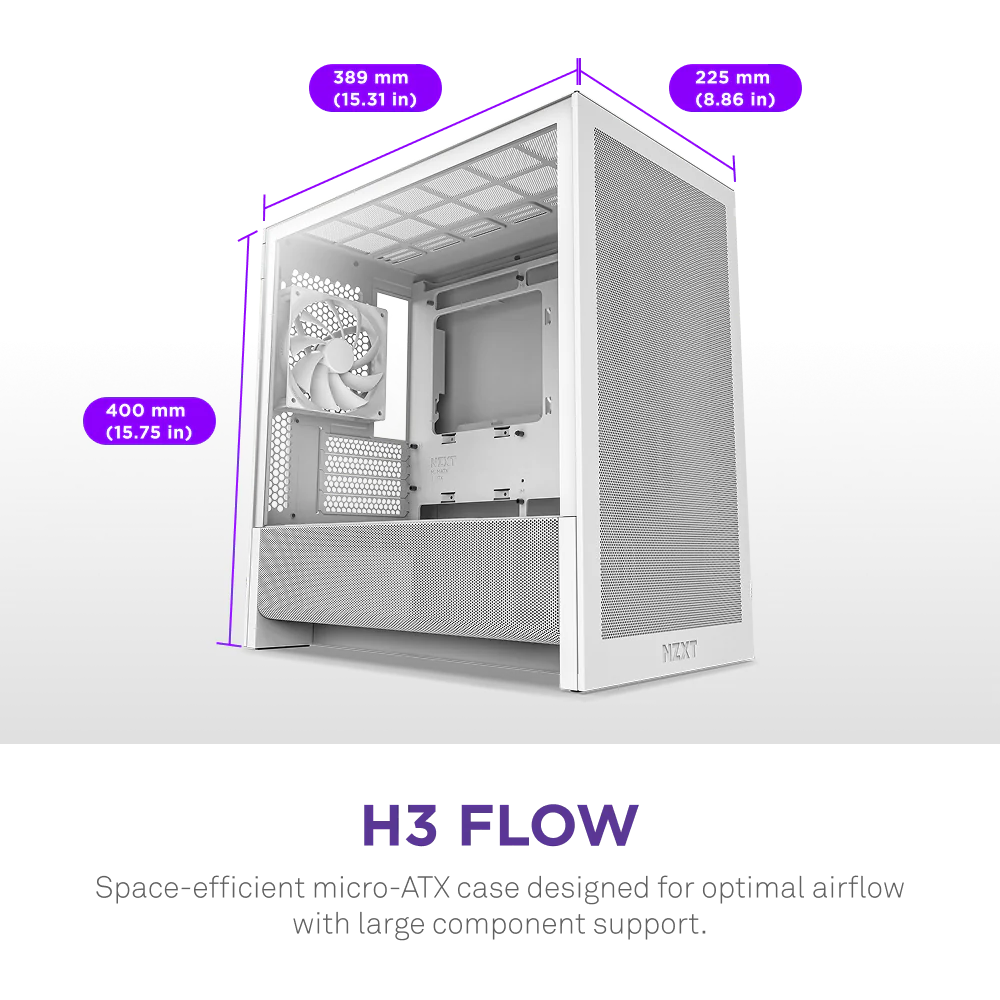

| Height (with feet) | 400 mm (15.75 in) |
| Width | 225 mm (8.86 in) |
| Depth | 389 mm (15.31 in) |
| Volume | 35.0 L |
| Weight | 4.8 kg (10.58 lb) |
| Enclosure Type | Micro-ATX Case |
| Motherboard Compatibility | Micro-ATX, Mini-ITX |
| Rear-Connecting Motherboard Support | Yes (Micro-ATX) |
| Materials | SGCC steel, clear tempered glass (white), tinted tempered glass (black) |
| CPU Cooler Height Clearance | 170 mm |
| GPU Length Clearance | Up to 377 mm (without front fans) <br> Up to 352 mm (with front fans) <br> Up to 317 mm (with front radiator & fans) |
| PSU Length Clearance | Up to 185 mm |
| Cable Routing Space | Up to 31.5 mm |
| Front Radiator + Fan Thickness | Up to 63 mm |
| Top Radiator + Fan Thickness | Up to 70 mm |
| Front I/O Ports | 1 x USB 3.2 Type-A, 1 x USB 3.2 Gen2x2 Type-C |
| Expansion Slots | Standard: 4 <br> Vertical: 0 |
| Drive Bays | 2.5″: 1+2 <br> 3.5″: 1 |
| Fan Support | Front: 2 x 120 mm / 2 x 140 mm <br> Top: 2 x 120 mm / 2 x 140 mm <br> Bottom: 2 x 120 mm <br> Rear: 1 x 120 mm (1 x F120Q (CV) included) |
| Radiator Support | Front: Up to 280 mm <br> Top: Up to 240 mm |
| Fan Specs (F120Q CV) | Speed: 1,350 ± 150 RPM <br> Airflow: 60.2 CFM <br> Static Pressure: 1.05 mmH₂O <br> Noise: 24.1 dBA <br> Connector: 3-pin |
| Warranty | 2 years |
| Model Numbers | CC-H31FW-01 |
| UPC | 810074848039 |
| EAN | 5056547207971 |
