Specifications
| Model No. | SST-PF360W-ARGB |
| Application | Intel Socket LGA775/115X/1200/1366/2011/2066 AMD Socket AM2/AM3/AM4/FM1/FM2 |

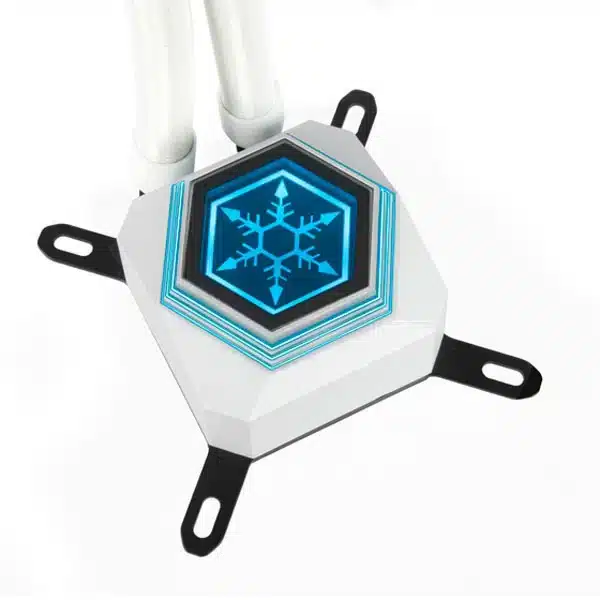

| Water Block | |
| Dimension | 61mm (L) x 61mm (W) x 50mm (H) 2.4″ (L) x 2.4″ (W) x 1.97″ (H) |
| Material | Copper base with plastic body |

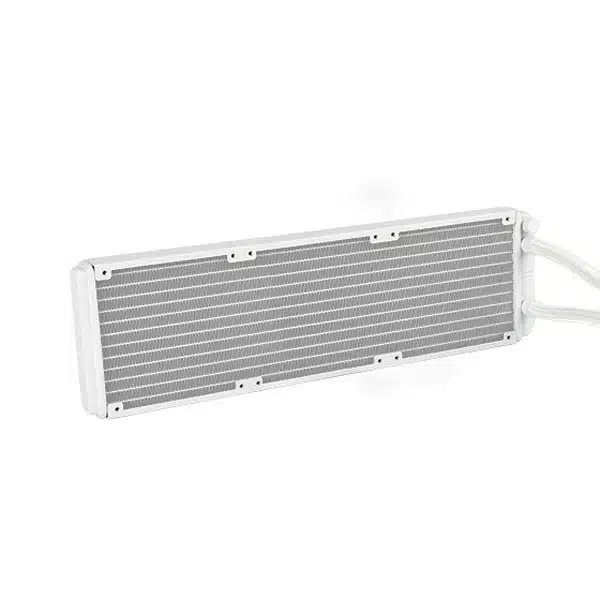

| Radiator | |
| Dimension | 394mm (L) x 120mm (W) x 28mm (H) 15.51″ (L) x 4.72″ (W) x 1.1″ (H) |
| Material | Aluminum |
| Tube | |
| Length | 400mm |
| Material | Rubber |
| Pump | |
| Motor speed | 3400±10% RPM |
| Rated Voltage | 12V |
| Rated Current | 0.39A |

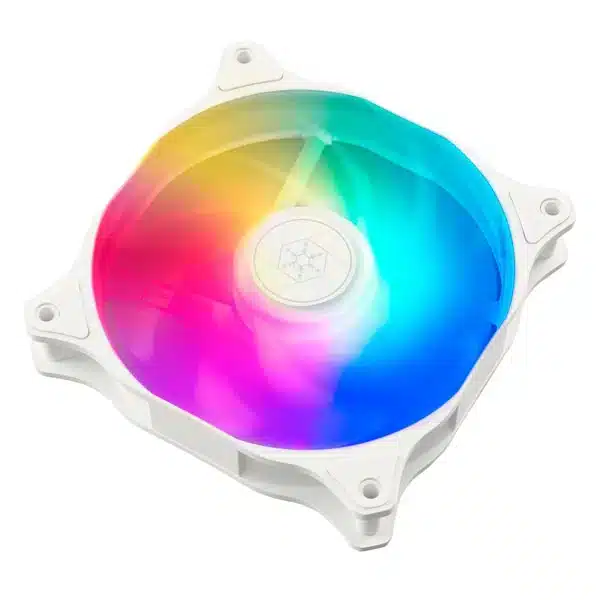

| Fan | |
| Dimension | 120mm (L) x 120mm (W) x 25mm (D) 4.72″ (L) x 4.72″ (W) x 0.98″ (D) |
| Speed | 600~2200RPM |
| Max airflow | 94CFM |
| Pressure | 3.53mm/H2O |
| Noise level | 7.4~35.6 dBA |
| Rated Voltage | 12V |
| Rated Current | 0.32A |
| Connector | 4 Pin PWM & 4-1 Pin ARGB (5V LED) |
| Warrenty | 2 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Remark
* Please check to make sure the control box and motherboard RGB port that you want to connect are the same as PF360W-ARGB’s RGB port definition. Incorrect connection may cause malfunction or damage.
** The latest specifications will be based on our website.
