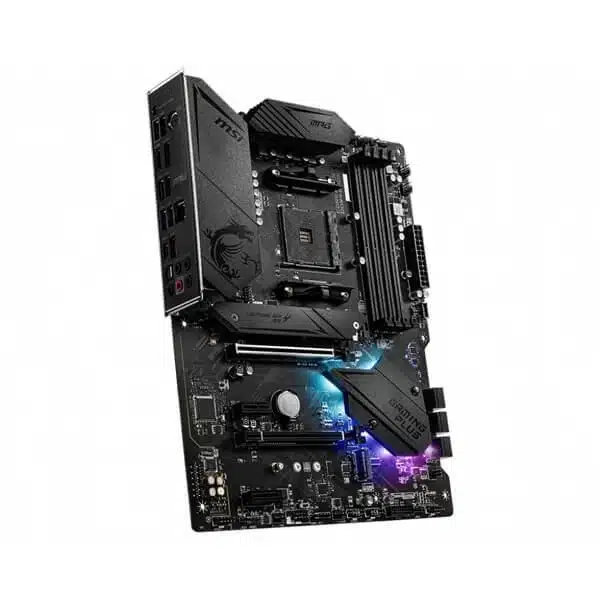

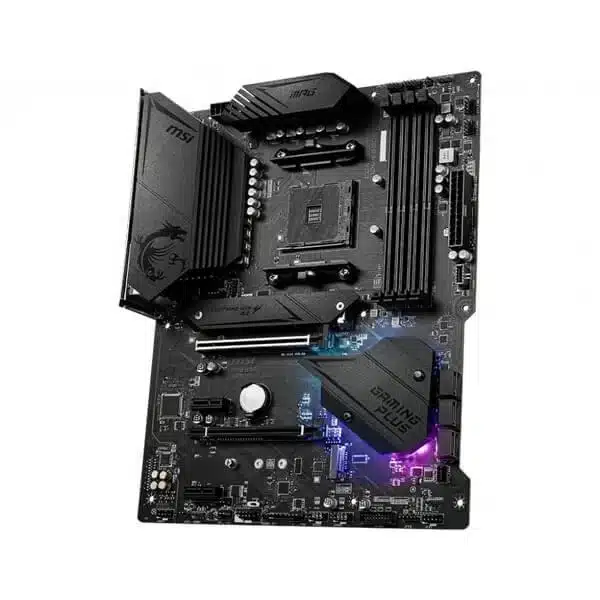

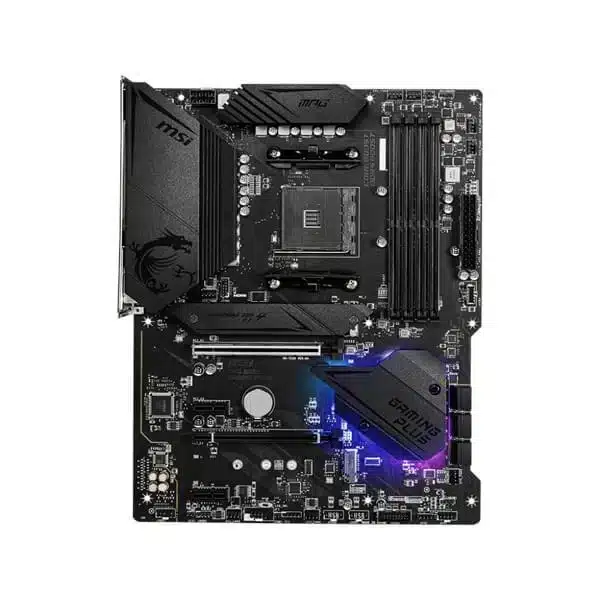

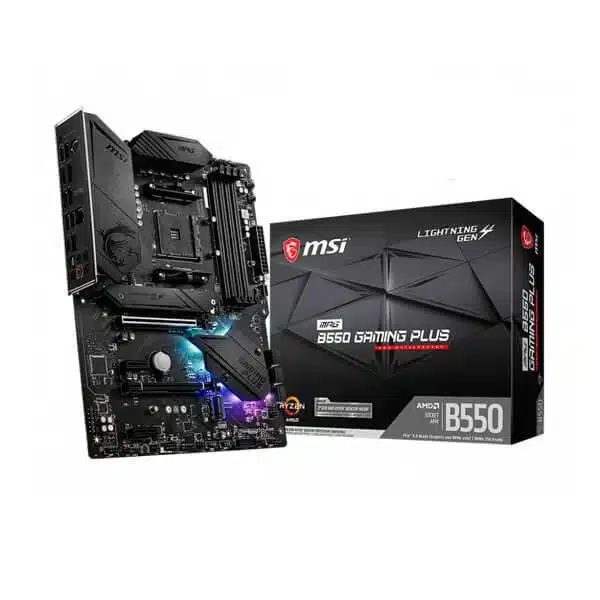

MSI MPG B550 Gaming Plus

Brand: MSI
  • Supports AMD Ryzenâ„¢ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzenâ„¢ 5 3400G & Ryzenâ„¢ 3 3200G) and AMD Ryzenâ„¢ 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
  • Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
  • Audio Boost: Reward your ears with studio grade sound quality
SKU: MPG-B550-GAMING-PLUS
Brand

Chipset

B550

Memory Type

DDR4

Socket

Form Factor

ATX

🔥 100% Genuine Products Guaranteed

ModxComputers is known for their best in class service and 100% genuine products with full authenticity.

👉 Cash on Delivery Available

Order products on Cash on Delivery upto Rs 2 Lakh. For more details kindly check details on the checkout page.

👉 EMI Available

EMI is available on selected Credit Cards, kindly check the offers on checkout page.

13,860

Out of stock

Out of stock

16 People watching this product now!

Description

Important Notice :

  • BIOS Update May Be Required With This Motherboard in order to support the Latest Generation Ryzen Processor (Upto 5th Gen Ryzen).
  • The Maximum Supported Memory Speed Varies with The Generation of Ryzen Processor You are Using With it.
  • For Additional Information Regarding Compatibility, Please Check Within the Manufacturers Website

Features

  • Supports AMD Ryzenâ„¢ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzenâ„¢ 5 3400G & Ryzenâ„¢ 3 3200G) and AMD Ryzenâ„¢ 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
  • Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
  • Audio Boost: Reward your ears with studio grade sound quality

Specifications

CPU Supports AMD Ryzenâ„¢ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzenâ„¢ 5 3400G & Ryzenâ„¢ 3 3200G) and AMD Ryzenâ„¢ 4000 G-Series desktop processors
Chipset AMD B550 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4400 MHz
      • 1DPC 2R max speed 3866 MHz
      • 2DPC 1R max speed 4000 MHz
      • 2DPC 2R max speed 3600 MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
Expansion Slot
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
  • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
  • 2x PCIe 3.0 x1 slots
  1. The supported specification depends on installed processor.
  2. When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.
Multi-GPU Supports 2-Way AMD CrossFireâ„¢ Technology
Onboard Graphics
  • 1x HDMI port, supports a maximum resolution of 4096×2160 @24Hz
  • 1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz
  • Maximum shared memory of 16 GB
  1. Available for the processor with integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
Storage AMD B550 Chipset

  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD Processor)
      • Supports PCIe 4.0/ 3.0 x4
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from AMD B550 chipset)
      • Supports PCIe 3.0×4
      • Supports 2242/ 2260/ 2280 storage devices
  1. The supported specification depends on installed processor.
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN 1x Realtek® 8111H Gigabit LAN controller
LED Features
  • 1x EZ LED Control switch
  • 4x EZ Debug LED
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1xTPM module connector
  • 1x Clear CMOS jumper

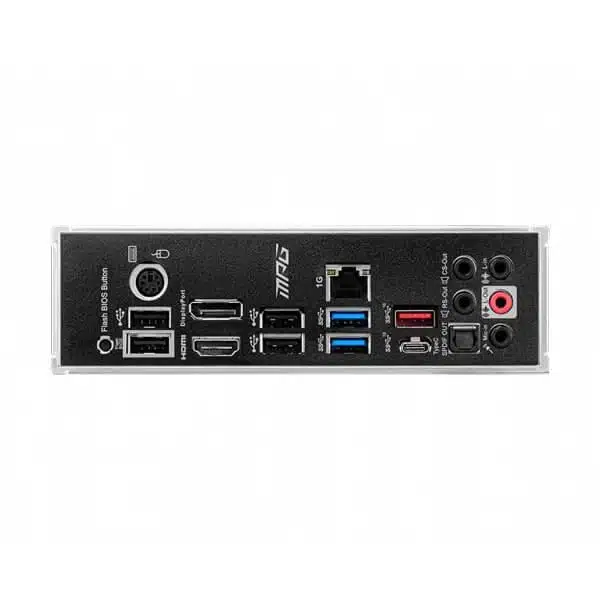

Back panel ports
  • PS/2 Combo Port
  • DisplayPort
  • LAN Port
  • USB 3.2 Gen 2 10Gbps (Type-A)
  • HD Audio Connectors
  • Flash BIOS Button
  • USB 2.0
  • HDMI
  • USB 2.0
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • USB 3.2 Gen 2 10Gbps (Type-C)
  • Optical S/PDIF OUT
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting 9 mounting holes
I/O Controller NUVOTON NCT6687-R Controller Chip
Hardware Monitor
  • CPU/ System/ Chipset temperature detection
  • CPU/ System/ Pump fan speed detection
  • CPU/ System/ Pump fan speed control
Warranty 3 Years
Note ***Features, Price and Specifications are subject to change without notice.
