-49%
MSI B860 Gaming Plus WIFI
Brand:
🔥 100% Genuine Products Guaranteed
ModxComputers is known for their best in class service and 100% genuine products with full authenticity.
👉 Cash on Delivery Available
Order products on Cash on Delivery upto Rs 2 Lakh. For more details kindly check details on the checkout page.
👉 EMI Available
EMI is available on selected Credit Cards, kindly check the offers on checkout page.
Original price was: ₹40,000.₹20,490Current price is: ₹20,490.
0
People watching this product now!
Description
MSI B860 GAMING PLUS WIFI LGA 1851 ATX Motherboard
Performance
AI Ready
Designed for the future of AI computing, this motherboard is equipped with the power and connectivity needed for demanding AI applications.
Fast Storage
Kick load times to the curb. In addition to supporting four 6 Gb/s SATA III drives, the M.2 PCIe 5.0 slot can deliver up to 128 GB/s transfer speeds with compatible NVMe SSDs. Installed SATA and M.2 drives may be put in RAID 0, 1, or 10 modes.
Extensive Connectivity

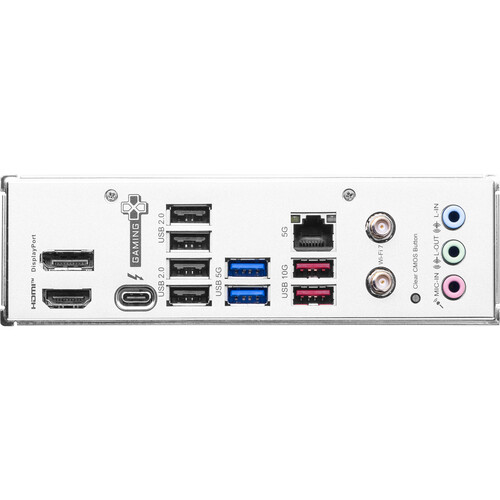

The rear panel includes one 40 Gb/s Thunderbolt 4 port, two 10 Gb/s USB-A 3.2 Gen 2 ports, four USB 2.0 ports, and two 5 Gb/s USB-A 3.2 Gen 1 ports. An HDMI 2.1 port and DisplayPort 1.2 port allow you to take advantage of processors with integrated graphics.
Front-panel headers support one 10 Gb/s USB-C port alongside four USB-A 2.0 ports and four 5 Gb/s USB-A ports.
Power System
The 12+1+1 phase power system features an aggressive VRM design with a digital CPU power system and Core Boost technology to help sustain heavy gaming loads.
MSI Easy Overclocking
Easily boost your CPU performance with the press of a single button for instant overclocking through Game Boost. Support for AMD Expo technology simplifies memory overclocking.
Advanced Cooling
Extended Heat Sink
The surface enhances heat dissipation to help ensure that systems continually operate at high speeds.
Heavy Plated VRM Heat Sink
The VRM heat sink covers the upper MOS and helps dissipate the heat.
M.2 Shield Frozr
Specially designed M.2 SSD heat sinks help to prevent speed throttling with intensive workloads.
Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores run at high performance.
System Cooling
Install up to six system fans and a water pump solution to optimize performance. Frozr AI automatically detects the CPU and GPU temperatures, adjusting the fan speeds accordingly.
Additional Features
Studio-Grade Audio
The 7.1 audio system provides clear surround sound with minimal distortion.
Mystic Light
Enhance your system with RGB lighting strips and other devices, which can be synced with Mystic Light–compatible peripherals such as keyboards and mice.
Durable Design
The PCB is made of a 6-layered server-grade PCB material to ensure stable performance.
| Chipset | INTEL B860 |
| CPU Support | Intel® Core™ Ultra Processors (Series 2) |
| Socket | LGA 1851 |
| Memory | 4x DDR5 UDIMM, Maximum Capacity 256GB |
| Memory Speed (OC) | Up to 8800+ MT/s |
| Memory Speed (JEDEC) | 6400 – 4800 MT/s |
| Memory Features | Intel® XMP 3.0, Dual-Channel Mode, Non-ECC, Unbuffered |
| Onboard Graphics | 1x HDMI™ 2.1 (4K@60Hz) |
| 1x DisplayPort 1.4 (4K@60Hz) |
| 1x Type-C DisplayPort (Thunderbolt™ 4) (4K@120Hz / 8K@60Hz) |
| PCI-E Slots | 4x PCI-E x16 Slots |
| PCI-E Slot Details | PCI_E1 (PCIe 5.0 x16), PCI_E2 (PCIe 4.0 x1), PCI_E3 (PCIe 4.0 x4), PCI_E4 (PCIe 4.0 x1) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel HD Audio |
| Storage | 3x M.2 (PCIe 5.0/4.0), 4x SATA 6G |
| RAID Support | RAID 0, 1, 5, 10 for SATA |
| Thunderbolt | 1x Thunderbolt 4 Port (40Gbps) |
| USB Ports (Rear) | 4x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A |
| USB Ports (Front) | 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| LAN | Intel® Killer™ E5000 5Gbps LAN |
| Wireless | Intel® Killer™ BE1750x Wi-Fi 7, Bluetooth® 5.4 |
| Internal I/O | Power Connectors (ATX_PWR, CPU_PWR, PCIE_PWR 8-pin), CPU Fan, System Fan, RGB Headers, TPM Header |
| LED Features | 4x EZ Debug LED |
