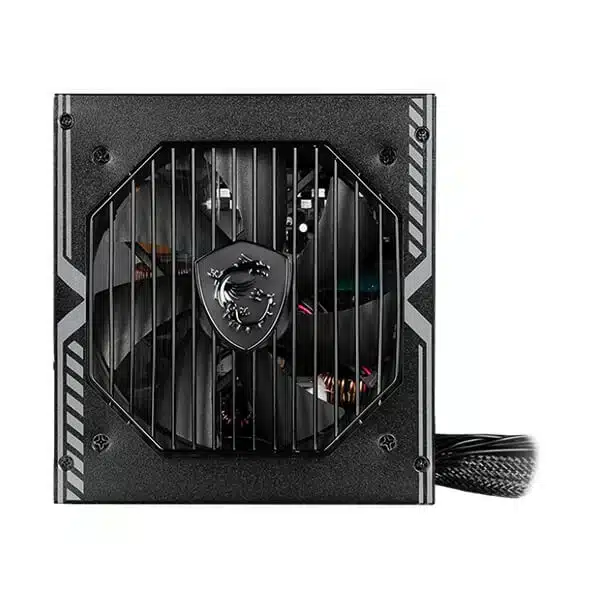

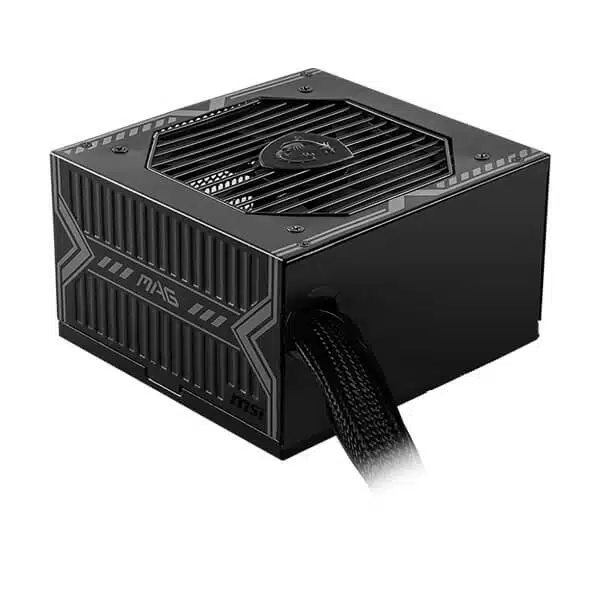

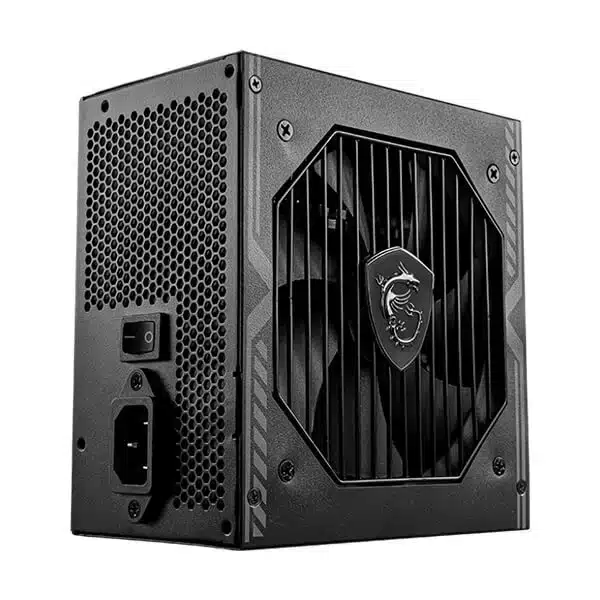

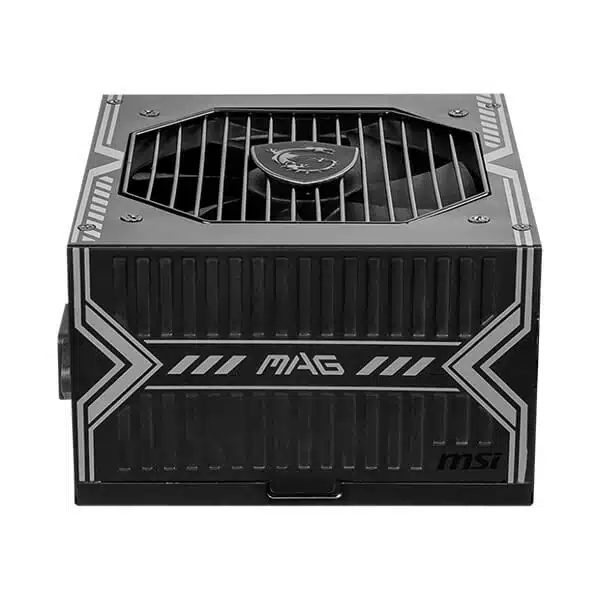

MSI MAG A750BN PCIE5 SMPS is a 750 Watt 80 Plus Bronze Certification Power Supply. This PSU has Active PFC Design, Industrial level protection with OVP, OCP, SCP, OPP, OTP, 16-pin PCIe 5.0 Connector, It supports RTX 40 series Graphics Cards
Features:
- PCIe 5.0 Ready (300W)
- 120mm Fan
- DC to DC power Design
- Active PFC Design
- Industrial level protection with OVP, OCP, SCP, OPP, OTP
Specification:
| Model | MAG A750BN PCIE5 |
| Efficiency Rating | 80 PLUS Bronze (up to 85%) |
| Modular | No |
| Fan Size | 120 mm |
| Fan Bearing | Sleeve Bearing |
| Dimensions (DxWxH) | 140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240~ |
| Power Watt | 750W |
| Input Frequency Range | 50~60Hz |
| Protection | OCP, OVP, OPP, OTP, SCP |
| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.0 (16 pin) | 1(300W) |
| PCI-E (6+2 pin) | 2 |
| SATA (15 pin) | 5 |
| MOLEX (4 pin) | 2 |
| FDD (4 pin) | 1 |
| Warranty | 5 Years |
| Note | *** Image use for reference only
*** Features, Price, Specifications are subject to change without notice. |
